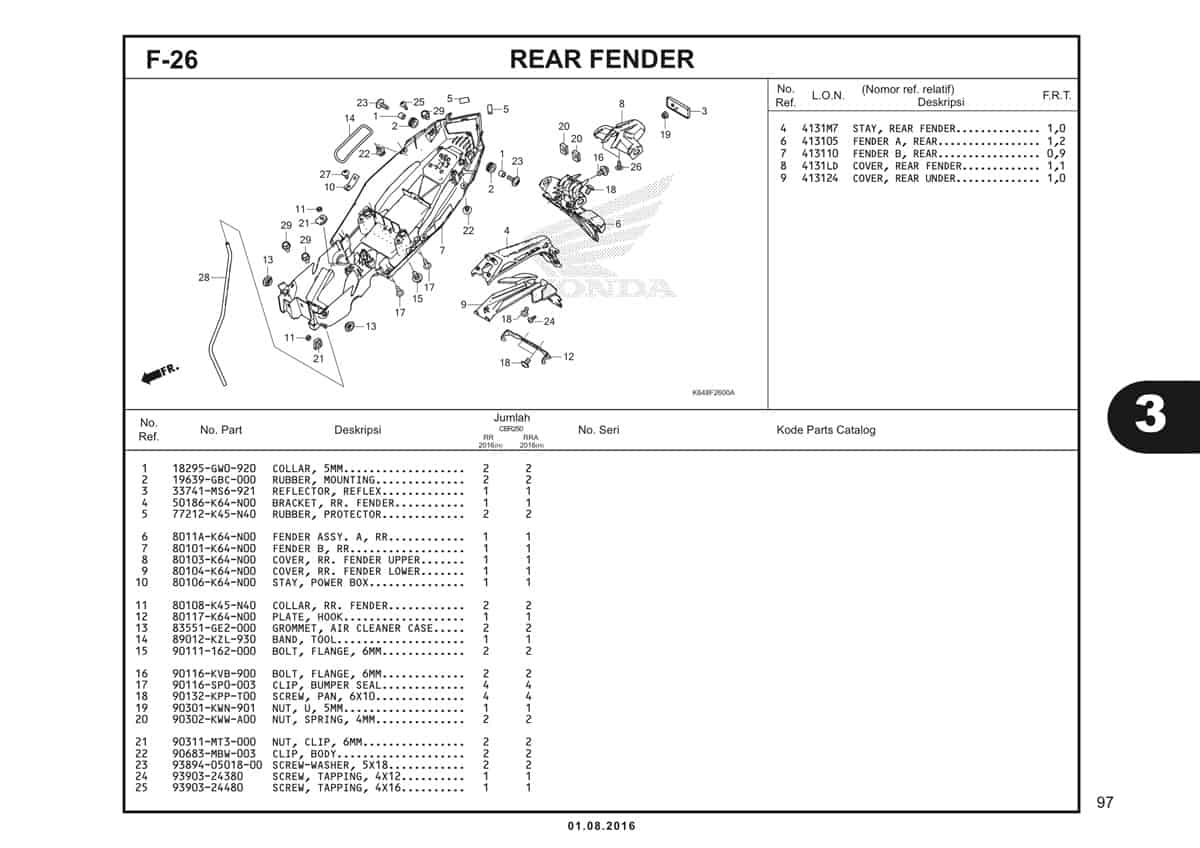

F26 – Rear Fender – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Collar 5MM Part Number : `18295GW0920`
2	Rubber Mount Part Number : `19639GBC000`
3	Reflector Reflect (ST) Part Number : `33741MS6921`
4	Bracket RR Fender Part Number : `50186K64N00`
5	Rubber Protector Part Number : `77212K45N40`
6	Fender Set A RR (WL) Part Number : `8011AK64N00`
7	Fender B RR Part Number : `80101K64N00`
8	Cover RR Fender Upper Part Number : `80103K64N00`
9	Cover RR Fender Lower Part Number : `80104K64N00`
10	Stay Power Box Part Number : `80106K64N00`
11	Collar RR Fender Part Number : `80108K45N40`
11	Collar RR Fender Part Number : `80108K1Z920`
12	Plate Hook Part Number : `80117K64N00`
13	Grommet A/C Part Number : `83551GE2000`
14	Band Tool Part Number : `89012KZL930`
15	Bolt Flange 6MM Part Number : `90111162000`
16	Bolt Flange 6MM Part Number : `90116KVB900`
17	Clip Bumper Seal Part Number : `90116SP0003`
17	Clip Bumper Seal Part Number : `90116K2PV61`
18	Screw Pan 6X10 Part Number : `90132KPPT00`
19	Nut U 5MM Part Number : `90301KWN901`
20	Nut Spring 4MM Part Number : `90302KWWA00`
21	Nut Clip 6MM Part Number : `90311MT3000`
22	Clip Body Part Number : `90683MBW003`
23	Screw Washer 5X18 Part Number : `938940501800`
24	Screw Tapping 4X12 Part Number : `9390324380`
25	Screw Tapping 4X16 Part Number : `9390324480`
26	Screw Tapping 5X10 Part Number : `9390325120`
27	Screw Tapping 5X12 Part Number : `9390325220`
28	Tube Drain 5X460 Part Number : `950055046030`
29	Bolt Flange 6X10 Part Number : `957010601000`
