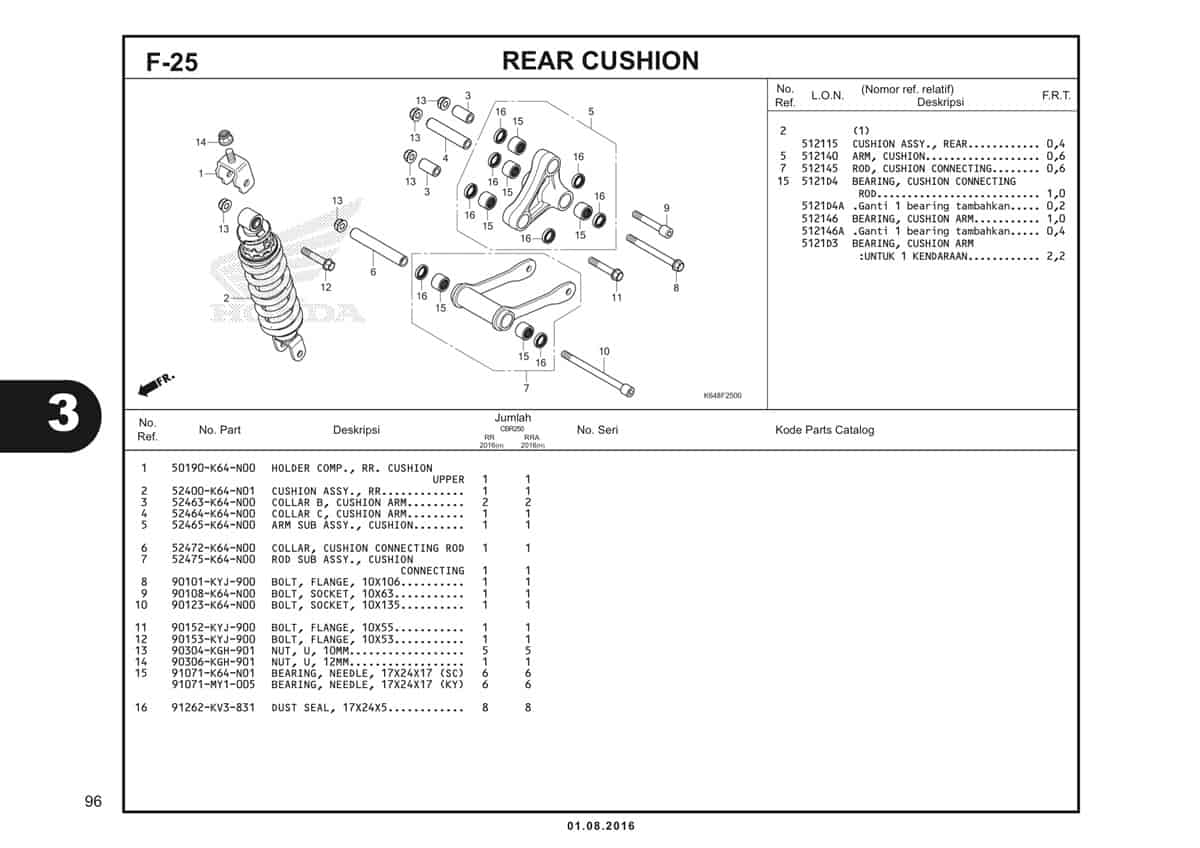

F25 – Rear Cushion – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Holder Comp RR Cushion Part Number : `50190K64N00`
2	Cushion Assy RR Part Number : `52400K64N01`
3	Collar B Cushion Arm Part Number : `52463K64N00`
4	Collar C Cushion Arm Part Number : `52464K64N00`
5	Arm Sub Assy Cushion Part Number : `52465K64N00`
6	Collar Cushion Connecting Rod Part Number : `52472K64N00`
7	Rod Sub Assy Cushion Part Number : `52475K64N00`
8	Bolt Flange 10X106 Part Number : `90101KYJ900`
9	Bolt Socket 10X62 Part Number : `90108K64N00`
10	Bolt Socket 10X135 Part Number : `90123K64N00`
11	Bolt Socket 10X135 Part Number : `90152KYJ900`
12	Bolt Flange 10X53 Part Number : `90153KYJ900`
13	Nut U 10MM Part Number : `90304KGH901`
14	Nut U 12MM Part Number : `90306KGH901`
15	Bearing Needle 17X24X17 (SC) Part Number : `91071K64N01`
15	Bearing Needle 17X24X17 (KY Part Number : `91071MY1005`
15	Bearing Needle17x24x17Fag Part Number : `91071K45NL1`
16	Dust Seal 17X24X5 Part Number : `91262KV3831`
