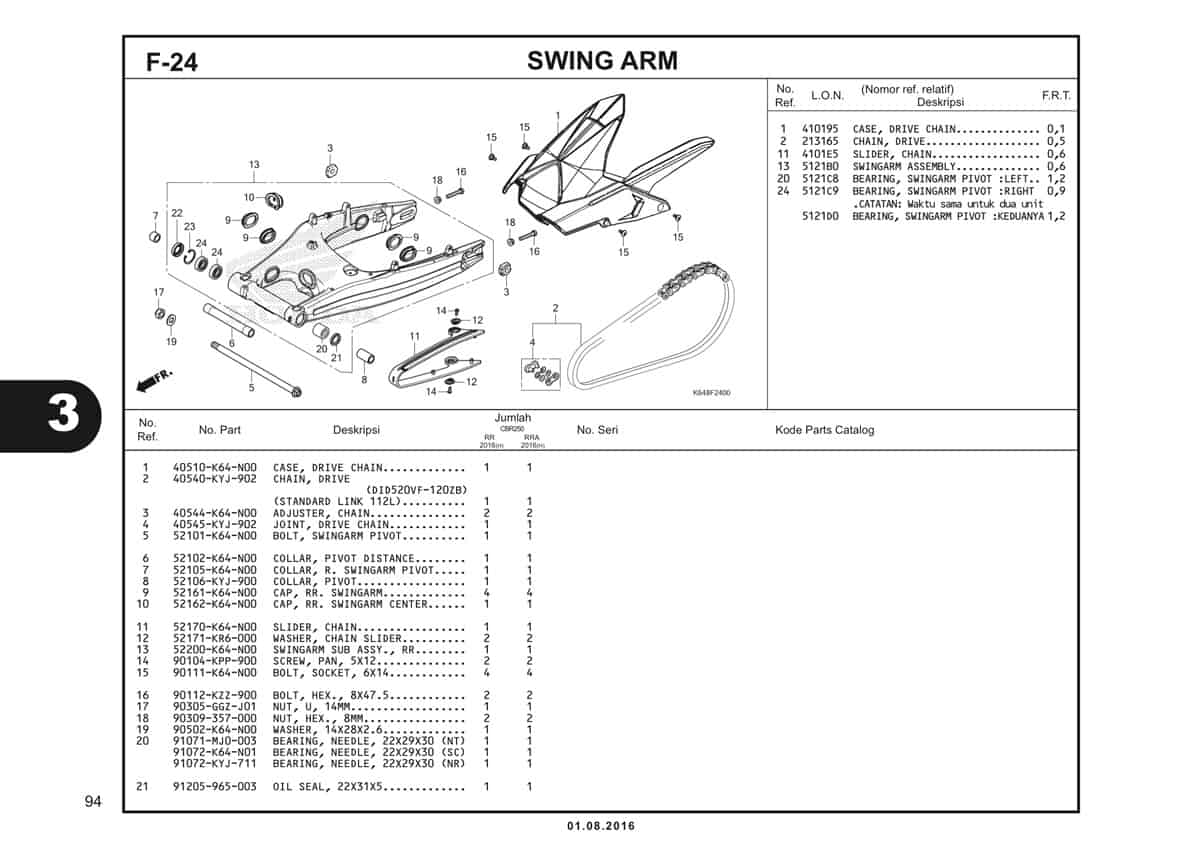

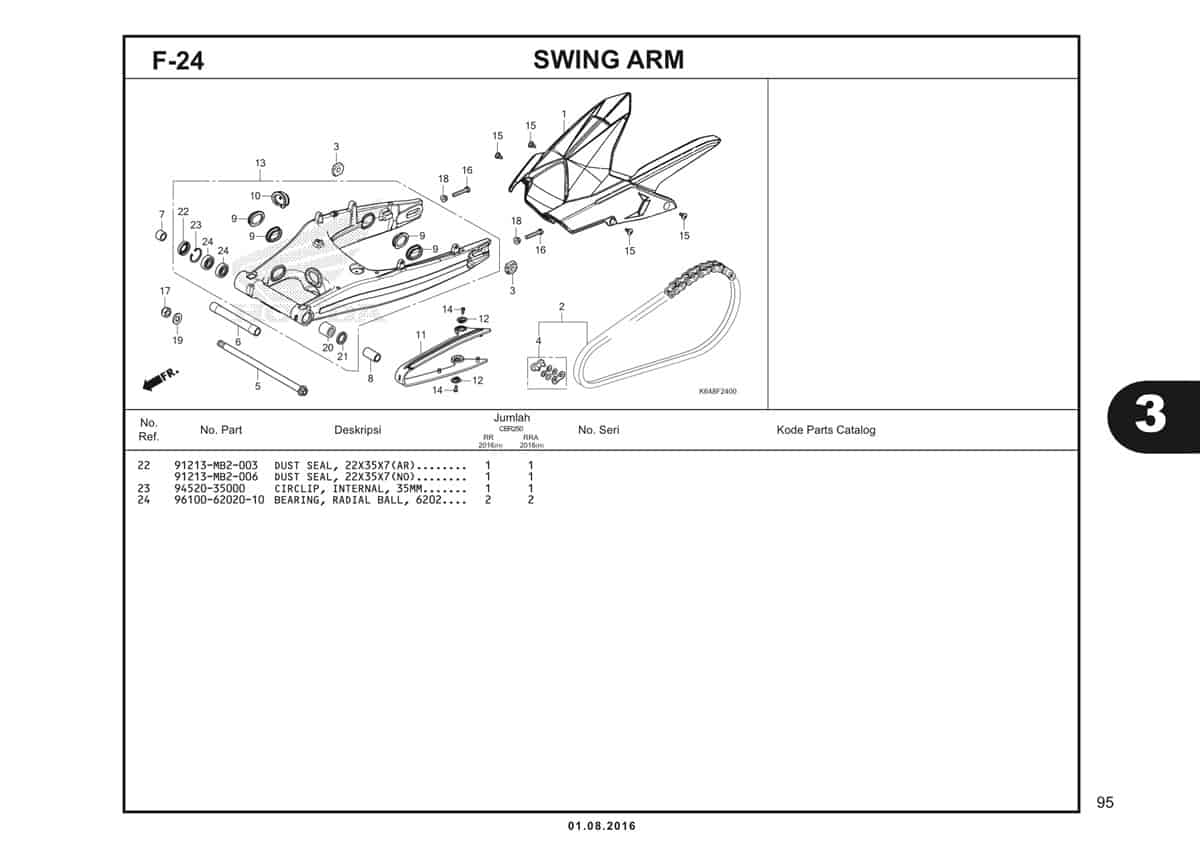

F24 – Swing Arm – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Case Drive Chain Part Number : `40510K64N00`
2	Chain Drive Part Number : `40540KYJ902`
3	Adjuster Chain Part Number : `40544K64N00`
4	Joint Drive Chain Part Number : `40545KYJ902`
5	Bolt Swingarm Pivot Part Number : `52101K64N00`
6	Collar Pivot Distance Part Number : `52102K64N00`
7	Collar R Swingarm Pivot Part Number : `52105K64N00`
8	Collar Pivot Part Number : `52106KYJ900`
9	Cap RR Swingarm Part Number : `52161K64N00`
10	Cap RR Swingarm Center Part Number : `52162K64N00`
11	Slider Chain Part Number : `52170K64N00`
12	Washer Chain Slider Part Number : `52171KR6000`
13	Swingarm Sub Assy RR Part Number : `52200K64N00`
14	Screw Pan 5X16 Part Number : `90104KPP900`
15	Bolt Socket 6X14 Part Number : `90111K64N00`
16	Bolt Hex 8X47.5 Part Number : `90112KZZ900`
17	Nut U 14MM Part Number : `90305GGZJ01`
18	Nut Hex 8MM Part Number : `90309357000`
19	Washer 14X28X2.6 Part Number : `90502K64N00`
20	Bearig Needle 22X29X30 (NT) Part Number : `91071MJ0003`
20	Bearig Needle 22X29X30 (SC) Part Number : `91072K64N01`
20	Bearig Needle 22X29X30 (NR) Part Number : `91072KYJ711`
21	Oil Seal 22X31X5 Part Number : `91205965003`
22	Dust Seal 22X35X7 Part Number : `91213MB2003`
22	Dust Seal 22X35X7 Part Number : `91213MB2006`
23	Circlip In 35MM Part Number : `9452035000`
24	Bearing Radial Ball 6202 Part Number : `961006202010`
