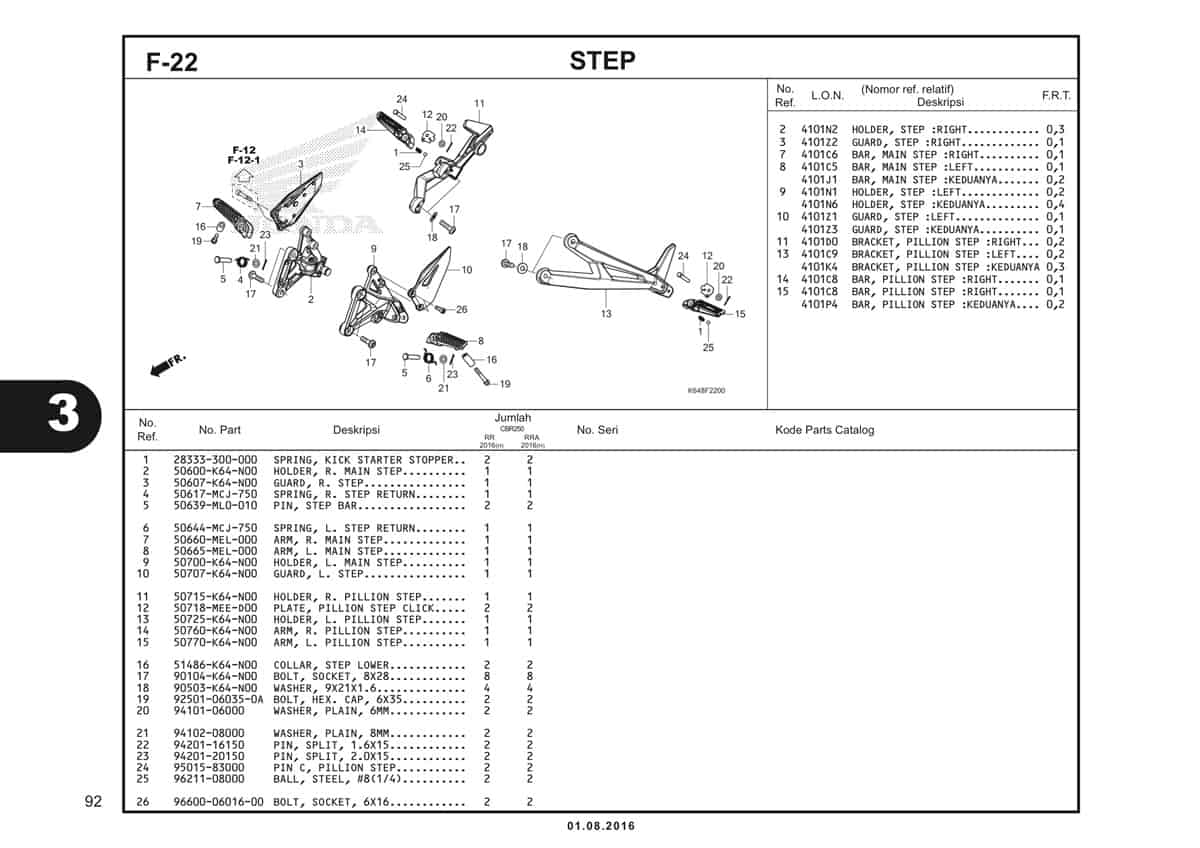

F22 – Step – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Spring Kick Starter Stopper Part Number : `28333300000`
2	Holder R Main Step Part Number : `50600K64N00`
3	Guard R Step Part Number : `50607K64N00`
4	Spring R Step Return LBL Part Number : `50617MCJ750`
5	Pin Step Bar Part Number : `50639ML0010`
6	Spring L Step Return LBL Part Number : `50644MCJ750`
7	Arm R Main Step Part Number : `50660MEL000`
8	Arm L Main Step Part Number : `50665MEL000`
9	Holder L Main Step Part Number : `50700K64N00`
10	Guard L Step Part Number : `50707K64N00`
11	Holder R Pillion Step Part Number : `50715K64N00`
12	Plate Pillion Step Click Part Number : `50718MEED00`
13	Holder L Pillion Step Part Number : `50725K64N00`
14	Arm R Pillion Step Part Number : `50760K64N00`
15	Arm L Pillion Step Part Number : `50770K64N00`
16	Collar Step Lower Part Number : `51486K64N00`
17	Bolt Socket 8X28 Part Number : `90104K64N00`
18	Washer 9X21X1.6 Part Number : `90503K64N00`
19	Bolt Hex Cap 6X35 Part Number : `92501060350A`
20	Washer Plain 6MM Part Number : `9410106000`
21	Washer Plain 8MM Part Number : `9410208000`
22	Pin Cotter 16X15 Part Number : `9420116150`
23	Pin Cotter 2.0X15 Part Number : `9420120150`
24	Pin C Pillion Step Part Number : `9501583000`
25	Ball Steel 8 (1/4) Part Number : `9621108000`
26	Bolt Socket 6X16 Part Number : `966000601600`
