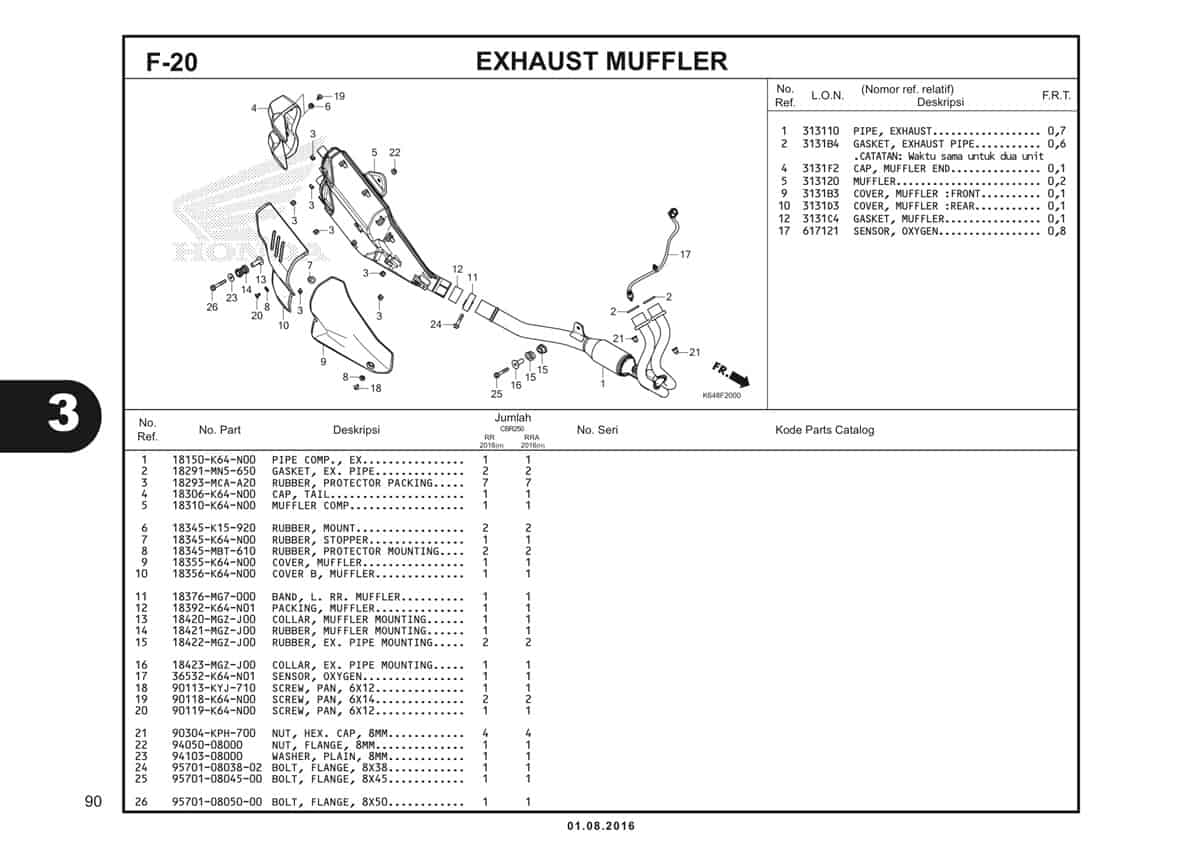

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Pipe Comp EX | 18150K64N00 |
|
| 2 | Gasket Exh Pipe | 18291MN5650 |
|
| 3 | Rubber Protector Pack | 18293MCAA20 |
|
| 4 | CapTail | 18306K64N00 |
|
| 5 | Muffler Comp | 18310K64N00 |
|
| 5 | Muffler Comp | 18310K64JC1 |
|
| 6 | Rubber Mount | 18345K15920 |
|
| 7 | Rubber Stopper | 18345K64N00 |
|
| 8 | Ruber Protector Mounting | 18345MBT610 |
|
| 9 | Cover Muffler | 18355K64N00 |
|
| 10 | Cover B Muffler | 18356K64N00 |
|
| 11 | Band L RR Muffler | 18376MG7000 |
|
| 12 | Packing Muffler | 18392K64N01 |
|
| 13 | Collar Muffler Mounting | 18420MGZJ00 |
|
| 14 | Rubber Muffler Mounting | 18421MGZJ00 |
|
| 15 | Rubber Ex Pipe Mounting | 18422MGZJ00 |
|
| 16 | Collar Ex Pipe Mounting | 18423MGZJ00 |
|
| 17 | Sensor Oxygen | 36532K64N01 |
|
| 18 | Screw Pan 6X12 | 90113KYJ710 |
|
| 19 | Screw Pan 6X14 | 90118K64N00 |
|
| 20 | Screw Pan 6X12 | 90119K64N00 |
|
| 21 | Nut Hex Cap 8MM | 90304KPH700 |
|
| 22 | Nut Flange 8MM | 9405008000 |
|
| 23 | Washer Plain 8MM | 9410308000 |
|
| 24 | Bolt Flange 8X38 | 957010803802 |
|
| 25 | Bolt Flange 8X45 | 957010804500 |
|
| 26 | Bolt Flange 8X50 | 957010805000 |
|
