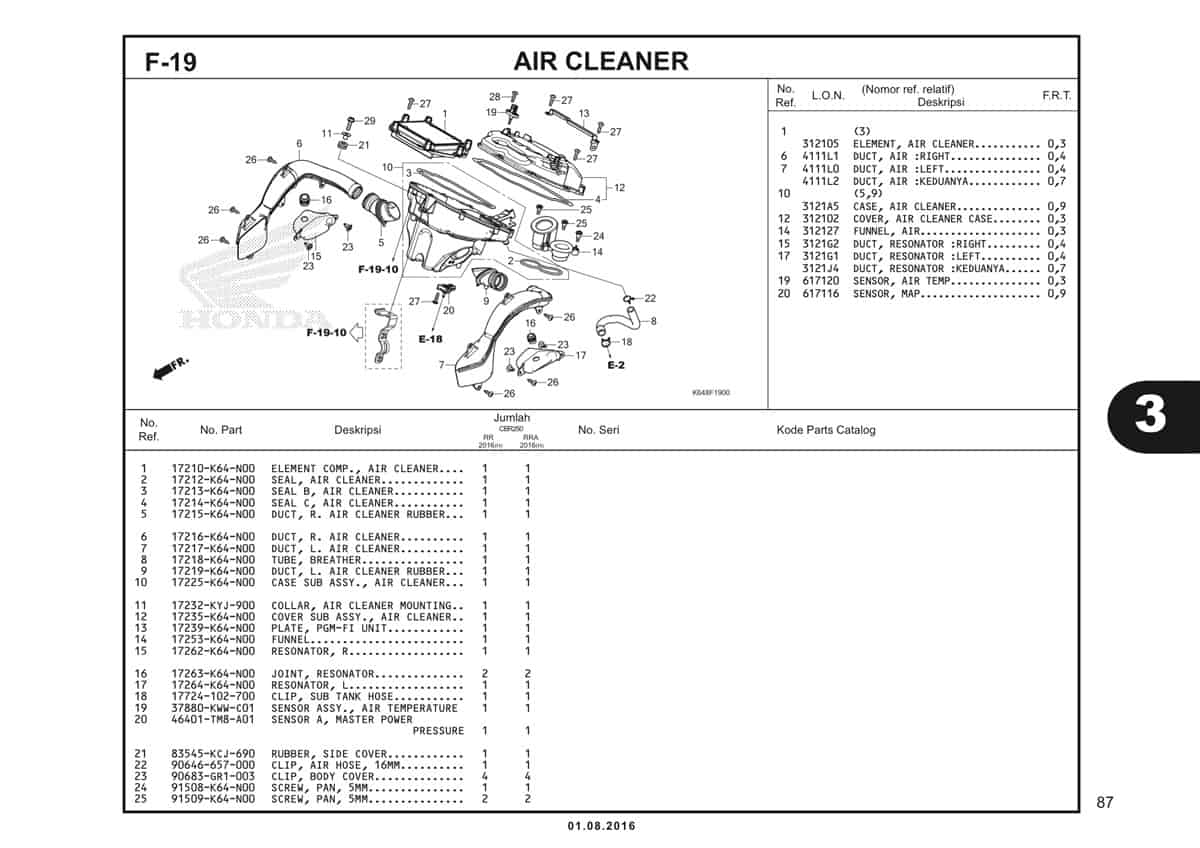

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Element Comp Air Cleaner | 17210K64N00 |
|
| 2 | Seal Air Cleaner | 17212K64N00 |
|
| 3 | Seal B Air Cleaner | 17213K64N00 |
|
| 4 | Seal C Air Cleaner | 17214K64N00 |
|
| 5 | Duct R Air Cleaner Rubber | 17215K64N00 |
|
| 6 | Duct R Air Cleaner | 17216K64N00 |
|
| 7 | Duct L Air Cleaner | 17217K64N00 |
|
| 8 | Tube Breather | 17218K64N00 |
|
| 9 | Duct L Air Cleaner Rubber | 17219K64N00 |
|
| 10 | Case Sub Assy Air Cleaner | 17225K64N00 |
|
| 10 | Case Sub Assy Air Cleaner | 17235K64JH0 |
|
| 11 | Collar Air Cleaner Mounting | 17232KYJ900 |
|
| 12 | Cover Sub Assy Air Cleaner | 17235K64N00 |
|
| 13 | Plate PGM-FI Unit | 17239K64N00 |
|
| 14 | Funnel | 17253K64N00 |
|
| 15 | Resonator R | 17262K64N00 |
|
| 16 | Joint Resonator | 17263K64N00 |
|
| 17 | Resonator L | 17264K64N00 |
|
| 18 | Clip Tank Hose | 17724102700 |
|
| 19 | Sensor Assy Air Temp | 37880KWWC01 |
|
| 20 | Sensor M/P Pressure | 46401TM8A01 |
|
| 21 | Rubber Cover | 83545KCJ690 |
|
| 22 | Clip Air Hose 16 | 90646657000 |
|
| 23 | Clip Body Cover | 90683GR1003 |
|
| 24 | Screw Pan 5MM | 91508K64N00 |
|
| 25 | Screw Pan 5MM | 91509K64N00 |
|
| 26 | Screw Tapping 5X16 | 9390325380 |
|
| 27 | Screw Tapping 5X20 | 9390325480 |
|
| 28 | Screw Tapping 5X20 | 93913255J0 |
|
| 29 | Bolt Flange 6X20 | 957010602008 |
|
