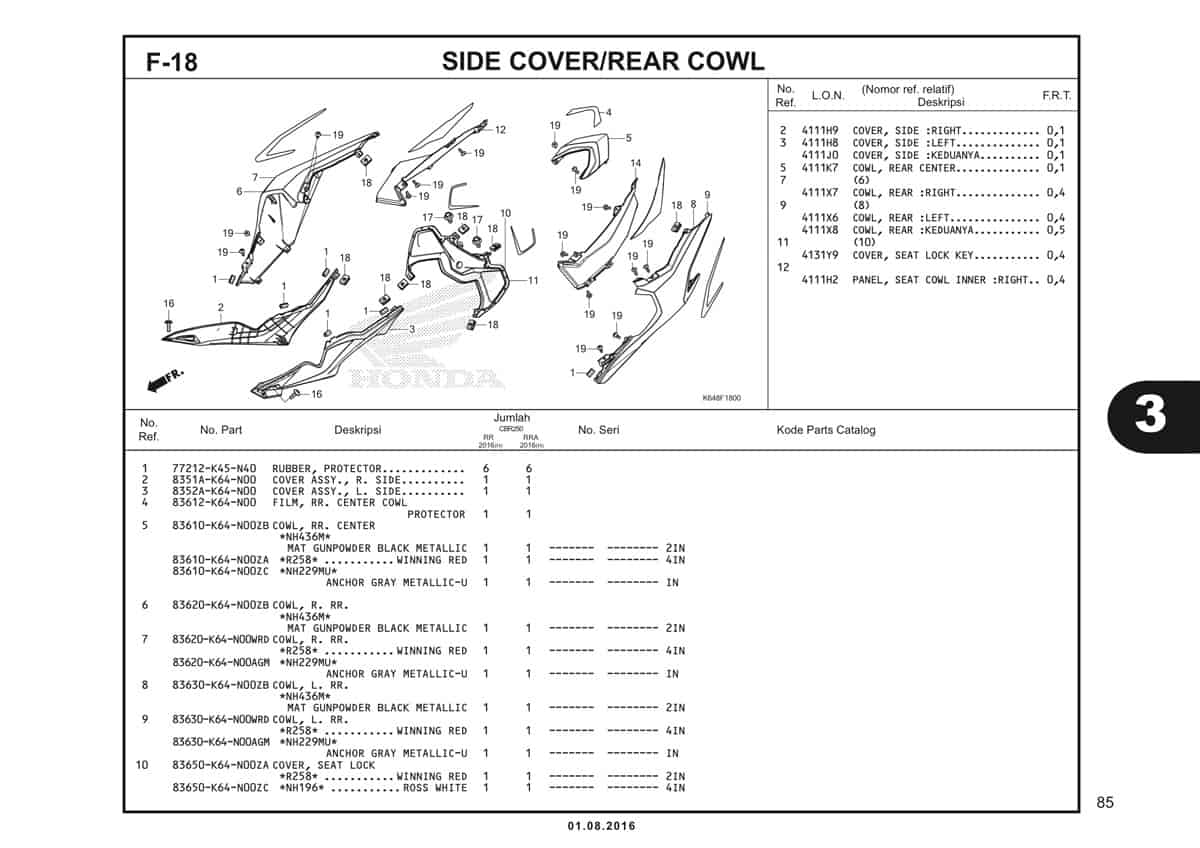

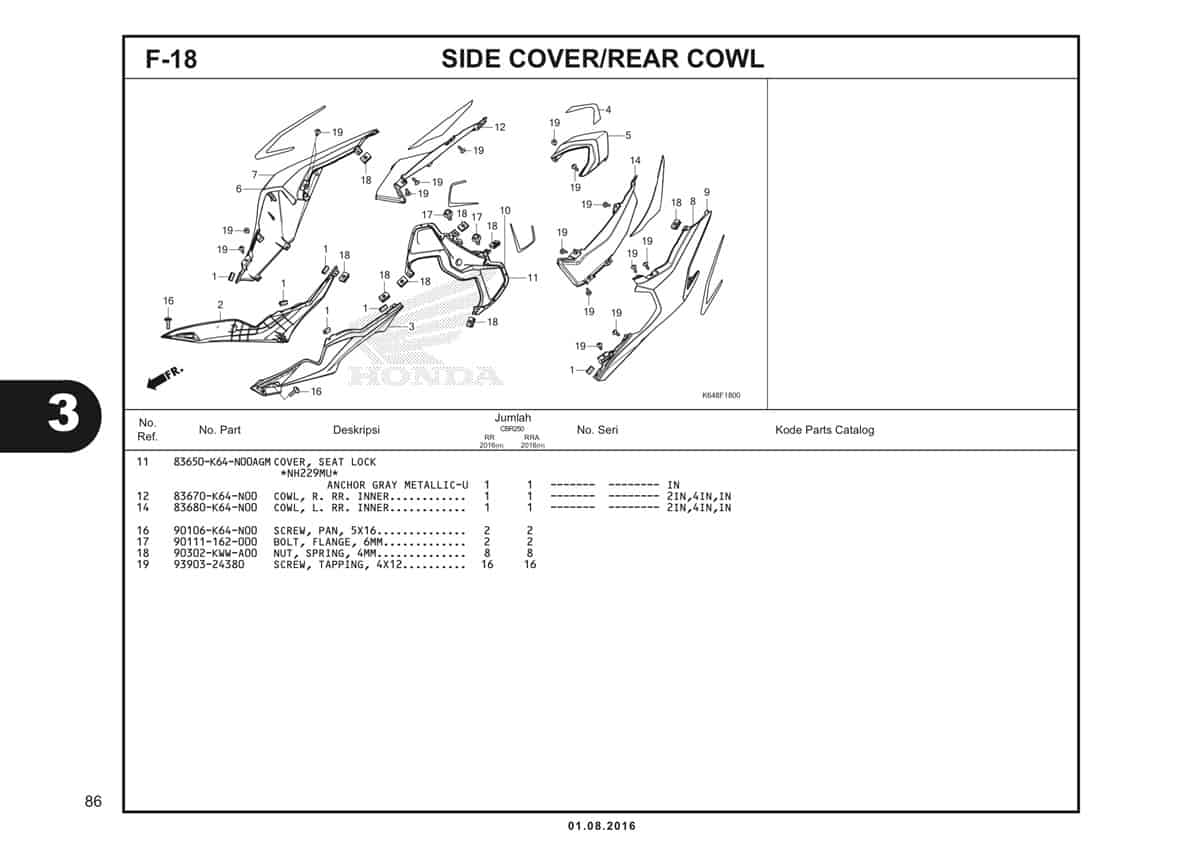

F18 – Side Cover/Rear Cowl – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Rubber Protector Part Number : `77212K45N40`
2	Cover Set R Side (WL) Part Number : `8351AK64N00`
3	Cover Set L Side (WL) Part Number : `8352AK64N00`
4	Film RR Center Cowl Part Number : `83612K64N00`
5	Cowl Rr Center (RO WH) Part Number : `83610K64N00ZD`
5	Cowl Rear Center (MT GN BL) Part Number : `83610K64N00ZB`
5	Cowl RR Center Mate Red Part Number : `83610K64N00MSR`
5	Cowl RR Center Black Part Number : `83610K64N00FMB`
5	Cowl Rear Center (WN RD) Part Number : `83610K64N00ZA`
5	Cowl Rear Center (AN GY MT) Part Number : `83610K64N00ZC`
5	Cowl R Rear (MT GN BL) Part Number : `83620K64N00ZB`
6	Cowl R Rear (WN RD) Part Number : `83620K64N00ZA`
6	Cowl R Rear (RO WH) Part Number : `83620K64N00RSW`
7	Cowl R Rear (AN GY MT) Part Number : `83620K64N00AGM`
8	Cowl L Rear (MT GN BL) Part Number : `83630K64N00ZB`
8	Cowl L Rear (RO WH) Part Number : `83630K64N00RSW`
9	Cowl L Rear (WN RD) Part Number : `83630K64N00ZA`
9	Cowl L Rear (AN GY MT) Part Number : `83630K64N00AGM`
10	Cover Seat Lock (WN RD) Part Number : `83650K64N00ZA`
10	Cover Seat Lock (RO WH) Part Number : `83650K64N00ZC`
10	Cover Seat Lock Mate Sollar Red Part Number : `83650K64N00ZG`
11	Cover Seat Lock (ANC GR MT) Part Number : `83650K64N00AGM`
12	Cowl R RR Inner Part Number : `83670K64N00`
14	Cowl L RR Inner Part Number : `83680K64N00`
16	Screw Pan 5X16 Part Number : `90106K64N00`
17	Bolt Flange 6MM Part Number : `90111162000`
18	Nut Spring 4MM Part Number : `90302KWWA00`
19	Screw Tapping 4X12 Part Number : `9390324380`
