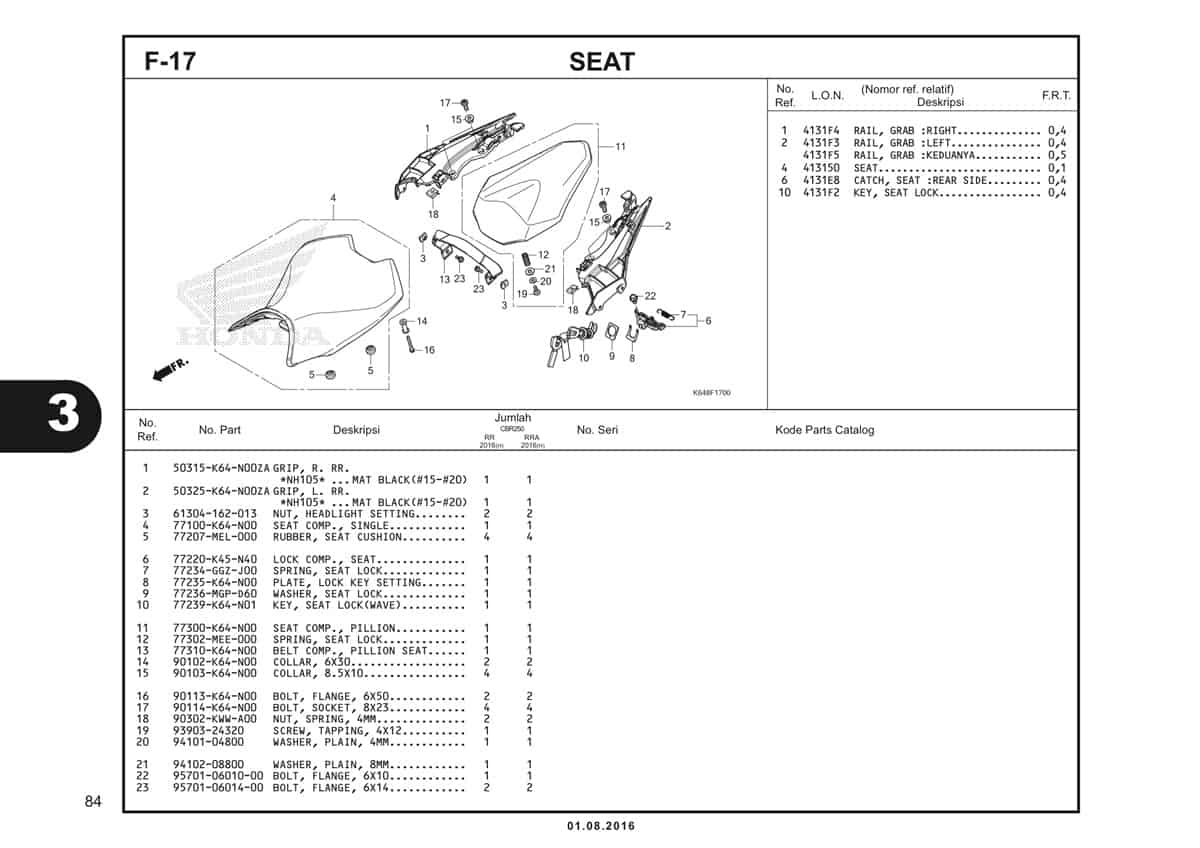

F17 – Seat – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Grip R RR Part Number : `50315K64N00ZA`
2	Grip L RR Part Number : `50325K64N00ZA`
3	Nut Headlight Setting Part Number : `61304162013`
4	Seat Comp Single Part Number : `77100K64N00`
5	Rubber Seat Cushion Part Number : `77207MEL000`
6	Lock Comp Seat Part Number : `77220K45N40`
7	Spring Seat Lock Part Number : `77234GGZJ00`
8	Plate Lock Key Setting Part Number : `77235K64N00`
9	Washer Seat Lock Part Number : `77236MGPD60`
10	Key Seat Lock (WAVE) Part Number : `77239K64N01`
10	Key Seat Lock (WAVE) Part Number : `77239K64N03`
11	Seat Comp Pillion Part Number : `77300K64N00`
12	Spring Seat Lock Part Number : `77302MEE000`
13	Belt Comp Pillion Seat Part Number : `77310K64N00`
14	Collar 6X30 Part Number : `90102K64N00`
15	Collar 8.5X10 Part Number : `90103K64N00`
16	Bolt Flange 6X50 Part Number : `90113K64N00`
17	Bolt Socket 8X23 Part Number : `90114K64N00`
18	Nut Spring 4MM Part Number : `90302KWWA00`
19	Screw Tapping 4X12 Part Number : `9390324320`
20	Washer Plain 4MM Part Number : `9410104800`
21	Washer Plain 8MM Part Number : `9410208800`
22	Bolt Flange 6X10 Part Number : `957010601000`
23	Bolt Flange 6X14 Part Number : `957010601400`
