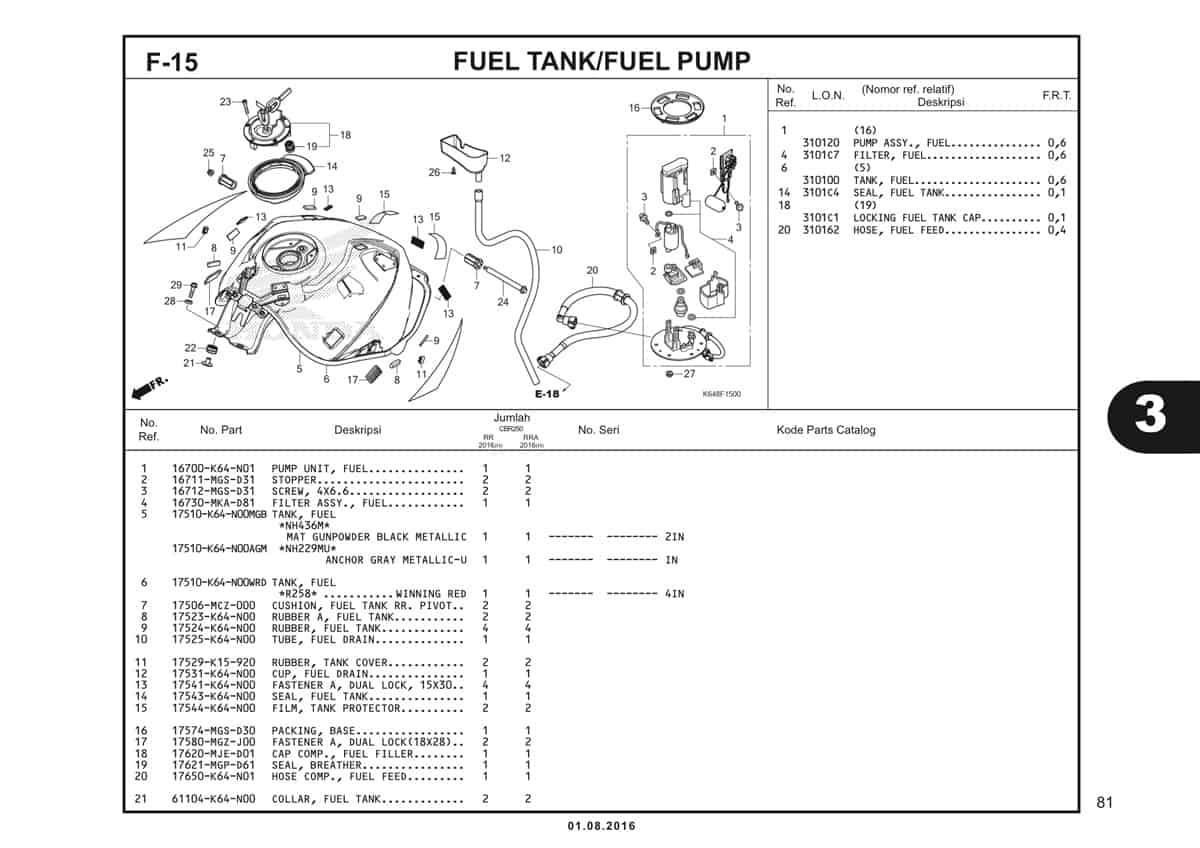

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Pump Unit Fuel | 16700K64N01 |
|
| 1 | Pump Unit Fuel | 16700K64N03 |
|
| 2 | Stopper | 16711MGSD31 |
|
| 3 | Screw 4X6.6 | 16712MGSD31 |
|
| 4 | Filter Assy Fuel | 16730MKAD82 | - |
| 5 | Tank Set Fuel | 17510K64N00MGB |
|
| 5 | Tank Set Fuel | 17510K64N00AGM |
|
| 6 | Tank Set Fuel (WL) | 17510K64N00WRD |
|
| 7 | Cushion Fuel Tank RR Pivot | 17506MCZ000 |
|
| 8 | Rubber A Fuel Tank | 17523K64N00 |
|
| 9 | Rubber Fuel Tank | 17524K64N00 |
|
| 10 | Tube Fuel Drain | 17525K64N00 |
|
| 11 | Rubber Tank Cover | 17529K15920 |
|
| 12 | Cup Fuel Drain | 17531K64N00 |
|
| 13 | Fastener A Dual Lock 15X30 | 17541K64N00 |
|
| 14 | Seal Fuel Tank | 17543K64N00 |
|
| 15 | Film Tank Protector | 17544K64N00 |
|
| 16 | Packing Base | 17574MGSD30 |
|
| 17 | Fastener A Dual Lock (18X28) | 17580MGZJ00 |
|
| 18 | Cap Comp Fuel Filler | 17620MJED01 | - |
| 19 | Seal Breather | 17621MGPD61 | - |
| 20 | Hose Comp Fuel Feed | 17650K64N01 |
|
| 21 | Collar Fuel Tank | 61104K64N00 |
|
| 22 | Rubber Taillight | 84703425000 |
|
| 23 | Bolt Socket 4X24 (SUS) | 90110MGPD60 |
|
| 24 | Bolt Tank Hinge | 90135K64N00 |
|
| 25 | Nut U 6MM | 90301473003 |
|
| 26 | Screw Tapping 4X12 | 9390324320 |
|
| 27 | Nut Flange 6MM | 9405006080 |
|
| 28 | Washer Plain 6MM | 9410306700 |
|
| 29 | Bolt Flange 6X25 | 957010602507 |
|
