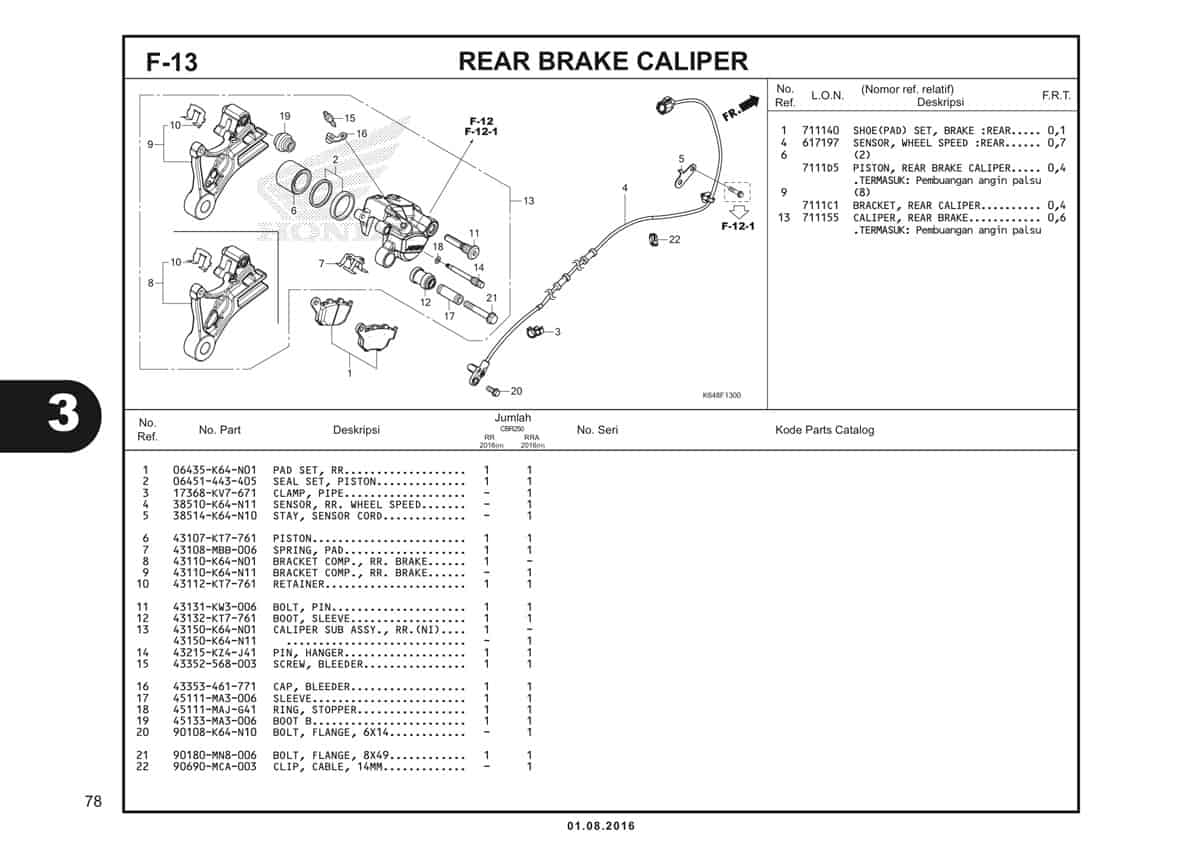

F13 – Rear Brake Caliper – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Pad Set RR Part Number : `06435K64N01`
2	Seal Set Piston Part Number : `06451443405`
3	Clamp Pipe Part Number : `17368KV7671`
4	Sensor Wheel Speed Part Number : `38510K64N11`
5	Stay Sensor Cord Part Number : `38514K64N10`
6	Piston Part Number : `43107KT7761`
7	Spring Pad Part Number : `43108MBB006`
8	Bracket Comp RR Brake Part Number : `43110K64N01`
9	Bracket Comp RR Brake Part Number : `43110K64N11`
10	Retainer Part Number : `43112KT7761`
11	Bolt Pin Part Number : `43131KW3006`
12	Boot Sleeve Part Number : `43132KT7761`
13	Caliper Sub Assy RR Part Number : `43150K64N01`
13	Caliper Sub Assy RR Part Number : `43150K64N11`
14	Pin Hanger Part Number : `43215KZ4J41`
15	Screw Bleeder Part Number : `43352568003`
16	Cap Bleeder Part Number : `43353461771`
17	Sleeve Part Number : `45111MA3006`
18	O-Ring 2.5X1.5 Part Number : `45111MAJG41`
19	Boot B Pin Part Number : `45133MA3006`
20	Bolt Flange NSHF Part Number : `90108K64N10`
21	Bolt Flange 8X49 Part Number : `90180MN8006`
22	Clip Cable 14MM Part Number : `90690MCA003`
