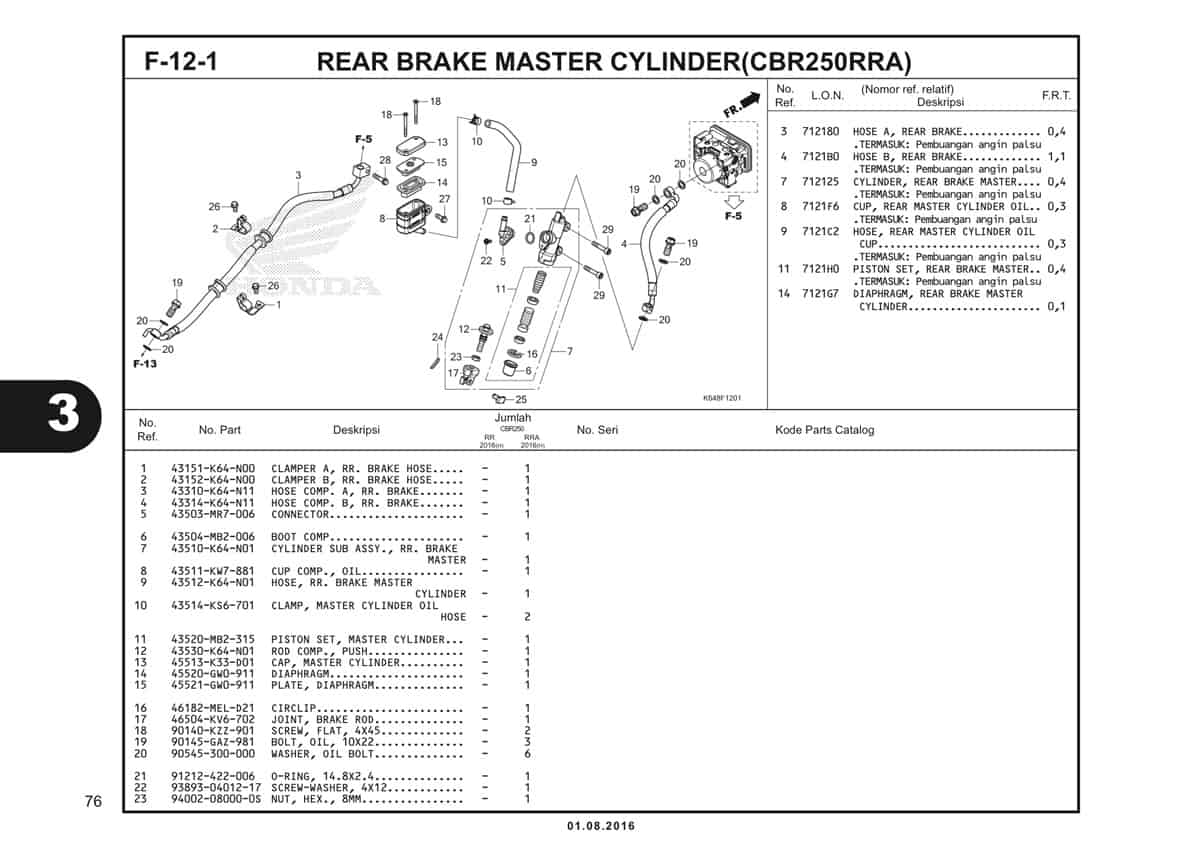

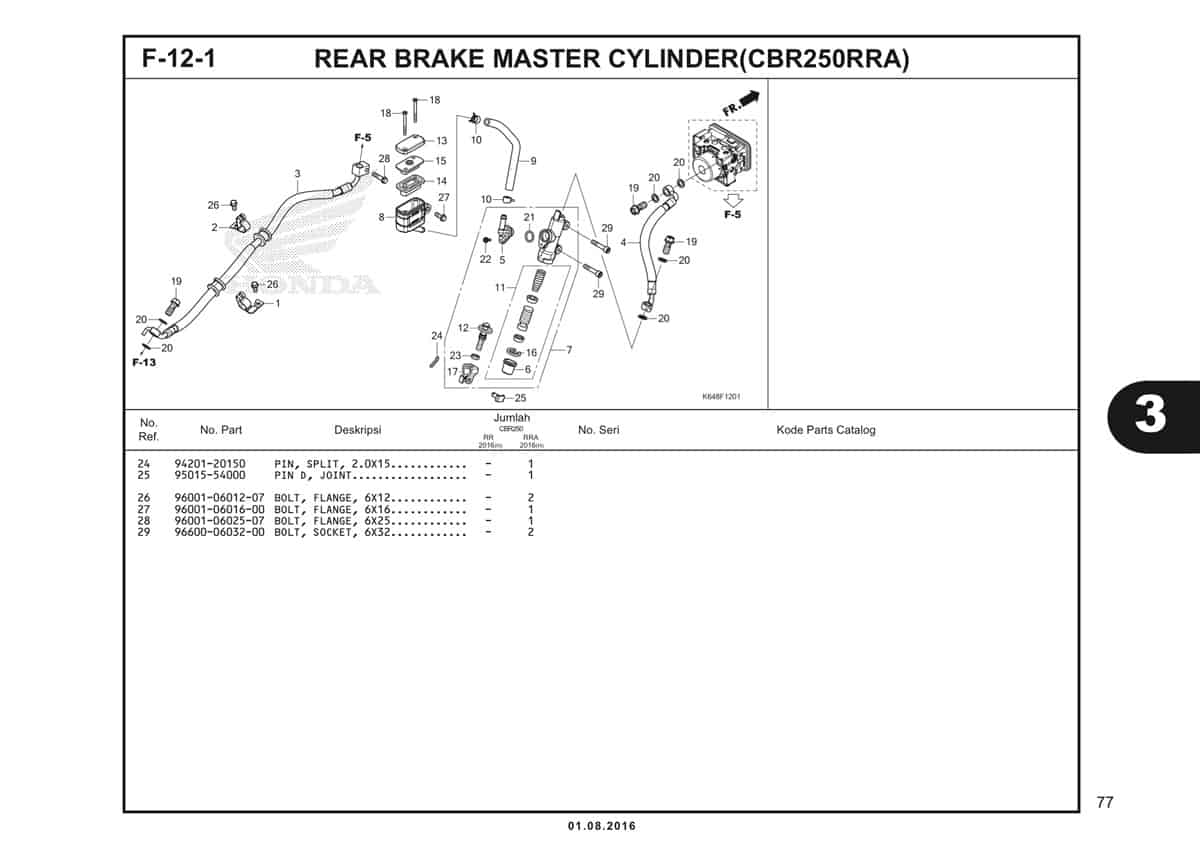

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Clamper A RR Brake Hose | 43151K64N00 |
|
| 2 | Clamper B RR Brake Hose | 43152K64N00 |
|
| 3 | Hose Comp A RR Brake | 43310K64N11 |
|
| 4 | Hose Comp B RR Brake | 43314K64N11 |
|
| 5 | Connector Nissin | 43503MR7006 |
|
| 6 | Boot Comp | 43504MB2006 |
|
| 7 | Cylinder Sub Assy RR Brake | 43510K64N01 |
|
| 8 | Cup Comp Oil | 43511KW7881 |
|
| 9 | Hose RR Brake Master | 43512K64N01 |
|
| 10 | Clamper Cylinder Oil | 43514KS6701 |
|
| 11 | Piston Set M/C | 43520MB2315 |
|
| 12 | Rod Comp Push | 43530K64N01 |
|
| 13 | Cap Master Cylinder | 45513K33D01 |
|
| 14 | Diaphragm | 45520GW0911 |
|
| 15 | Plate Diaphragm | 45521GW0911 |
|
| 16 | Circlip M/C | 46182MELD21 |
|
| 17 | Joint Brake Rod | 46504KV6702 |
|
| 18 | Screw Flat 4X45 | 90140KZZ901 |
|
| 19 | Bolt Oil 10X22 | 90145GAZ981 |
|
| 20 | Washer Oil Bolt | 90545300000 |
|
| 21 | O-Ring 14.8X2.4 | 91212422006 |
|
| 22 | Screw Washer 4X12 | 938930401217 |
|
| 23 | Nut Hex 8MM | 94002080000S |
|
| 24 | Pin Cotter 2.0X15 | 9420120150 |
|
| 25 | Pin D Joint | 9501554000 |
|
| 26 | Bolt Flange 6X12 | 960010601207 |
|
| 27 | Bolt Flange SH 6X16 | 960010601600 |
|
| 28 | Bolt Flange 6X25 | 960010602507 |
|
| 29 | Bolt Socket 6X32 | 966000603200 |
|
