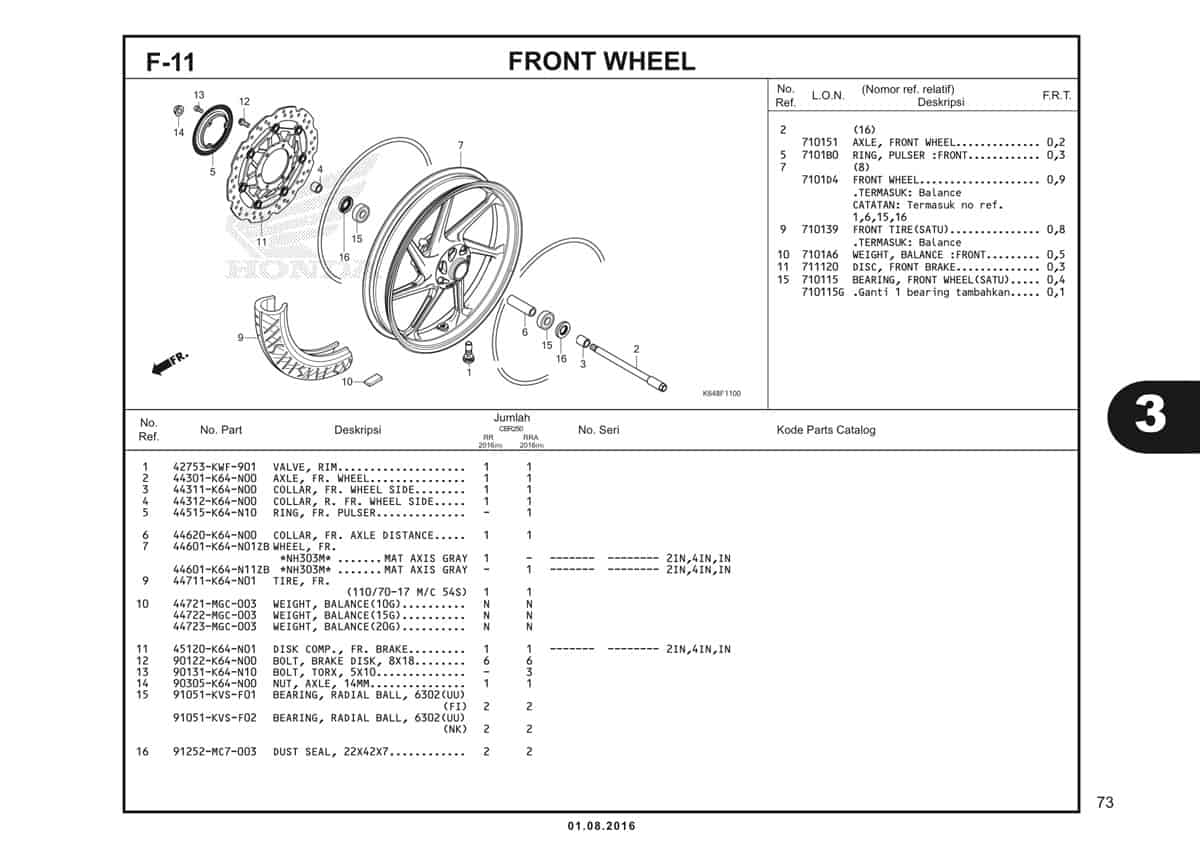

F11 – Front Wheel – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Valve Rim (TRITON) Part Number : `42753KWF901`
2	Axle FR Wheel Part Number : `44301K64N00`
3	Collar FR Wheel Side Part Number : `44311K64N00`
4	Collar R FR Wheel Side Part Number : `44312K64N00`
5	Ring FR Pulser Part Number : `44515K64N10`
6	Collar FR Axle Distance Part Number : `44620K64N00`
7	Wheel Sub Assy FR Part Number : `44650K64N00ZD`
7	Wheel FR Type 2 Part Number : `44601K64N01ZB`
7	Wheel FR Type 2 Part Number : `44601K64N11ZB`
7	Wheel Sub Assy FR TYPE1 Part Number : `44650K64N50ZA`
9	Tire FR (IRC) (110/70-17 M/C 54S) Part Number : `44711K64N01`
10	Weight Balance (10G) Part Number : `44721MGC003`
10	Weight Balance (15G) Part Number : `44722MGC003`
10	Weight Balance (20G) Part Number : `44723MGC003`
11	Disk Comp FR Bracket Part Number : `45120K64N01`
12	Bolt SH DR 8X18 2X108 Part Number : `90122K64N00`
13	Bolt Torx 5X10 Part Number : `90131K64N10`
14	Nut Axle 14MM Part Number : `90305K64N00`
15	Bearing Radial Ball 6302 (UU) Part Number : `91051KVSF01`
15	Bearing Radial Ball6302 (UU) Part Number : `91051KVSF01`
16	Dust Seal 22X42X7 Part Number : `91252MC7003`
