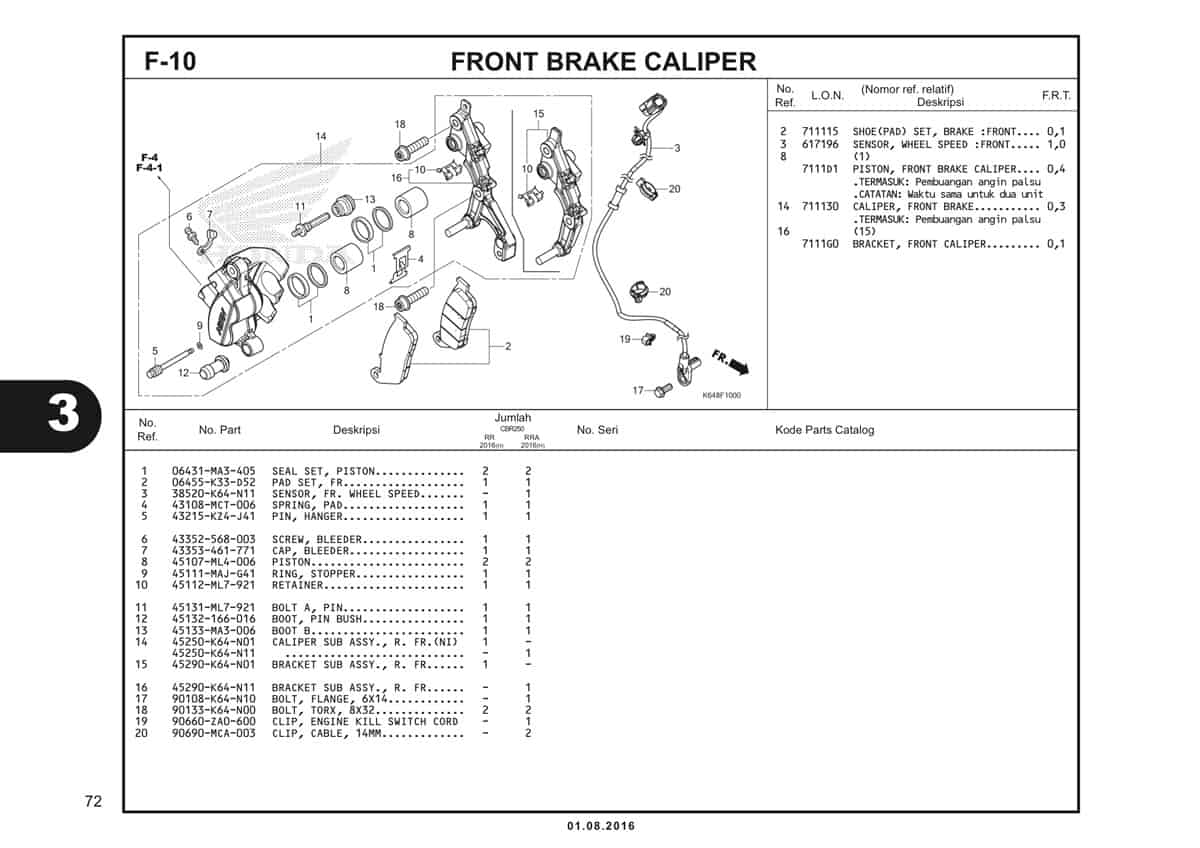

F10 – Front Brake Caliper – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Seal Set Piston Part Number : `06431MA3405`
2	Pad Set FR Part Number : `06455K33D52`
3	Sensor Wheel Speed Part Number : `38520K64N11`
4	Spring Pad Part Number : `43108MCT006`
5	Pin Hanger Part Number : `43215KZ4J41`
6	Screw Bleeder Part Number : `43352568003`
7	Cap Bleeder Part Number : `43353461771`
8	Piston Part Number : `45107ML4006`
9	O-Ring 2.5X1.5 Part Number : `45111MAJG41`
10	Retainer Bracket Part Number : `45112ML7921`
11	Bolt A Pin Part Number : `45131ML7921`
12	Boot Pin Bush Part Number : `45132166016`
13	Boot B Pin Part Number : `45133MA3006`
14	Caliper Sub Assy R FR Part Number : `45250K64N01`
14	Caliper Sub Assy R FR Part Number : `45250K64N11`
15	Bracket Sub Assy R FR Part Number : `45290K64N01`
16	Bracket Sub Assy R FR Part Number : `45290K64N11`
17	Bolt Flange NSHF Part Number : `90108K64N10`
18	Bolt Torx 8X32 Part Number : `90133K64N00`
19	Clip Engine Kill Switch Cord Part Number : `90660ZA0600`
20	Clip Cable 14MM Part Number : `90690MCA003`
