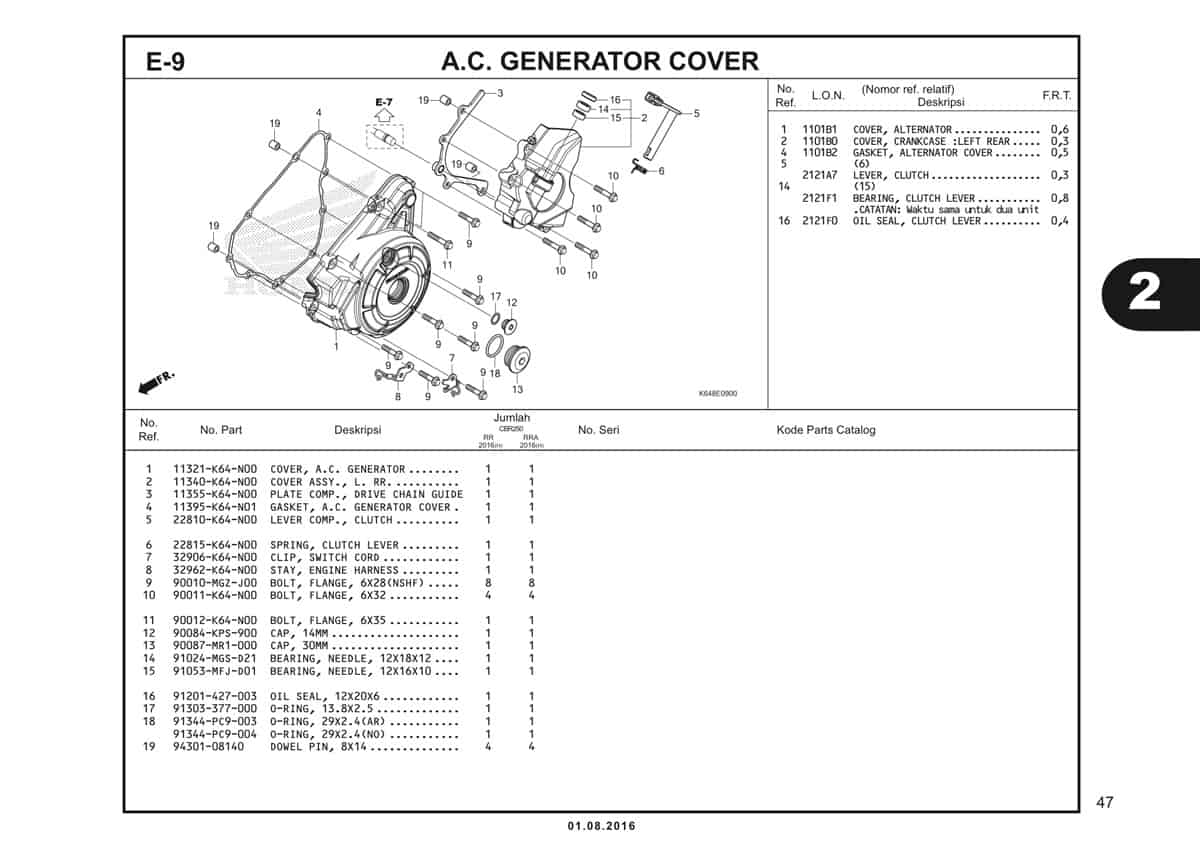

E9 – A.C. Generator Cover – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Cover A.C Generator Part Number : `11321K64N00`
2	Cover Assy L RR Part Number : `11340K64N00`
3	Plate Comp Drive Chain Guide Part Number : `11355K64N01`
4	Gasket A.C Generator Cover Part Number : `11395K64N01`
5	Lever Comp Clutch Part Number : `22810K64N00`
6	Spring Clutch Lever Part Number : `22815K64N00`
7	Clip Switch Cord Part Number : `32906K64N00`
8	Stay Engine Harness Part Number : `32962K64N00`
9	Bolt Flange 6X28 (NSHF) Part Number : `90010MGZJ00`
10	Bolt Flange 6X32 Part Number : `90011K64N00`
11	Bolt Flange 6X35 Part Number : `90012K64N00`
12	Cap 14MM Part Number : `90084KPS900`
13	Cap 30MM Part Number : `90087MR1000`
14	Bearing Needle 12X18X12 LBL Part Number : `91024MGSD21`
15	Bearing Needle 12X16X10 LBL Part Number : `91053MFJD01`
16	Oil Seal 12X20X6 Part Number : `91201427003`
17	O-Ring 13.8X2.5 Part Number : `91303377000`
17	O-Ring 13.8X2.5 Part Number : `91303377001`
18	O-Ring 29X2.4 Part Number : `91344PC9003`
18	O-Ring 29X2.4 (NOK) Part Number : `91344PC9004`

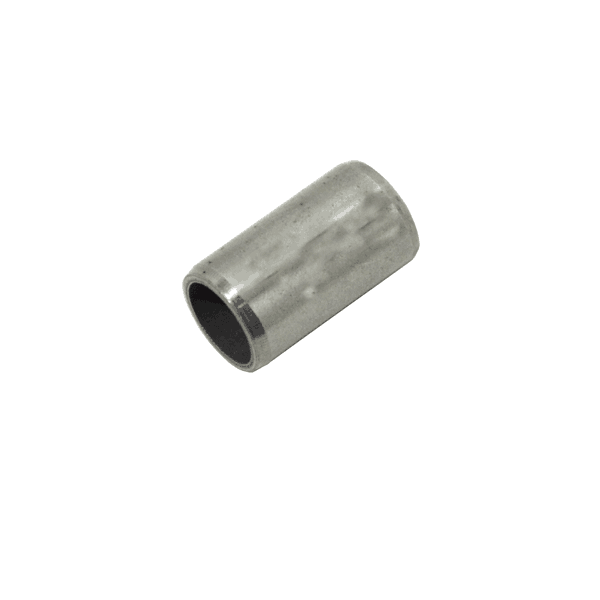

19	Pin Dowel 8X14 Part Number : `9430108140`
