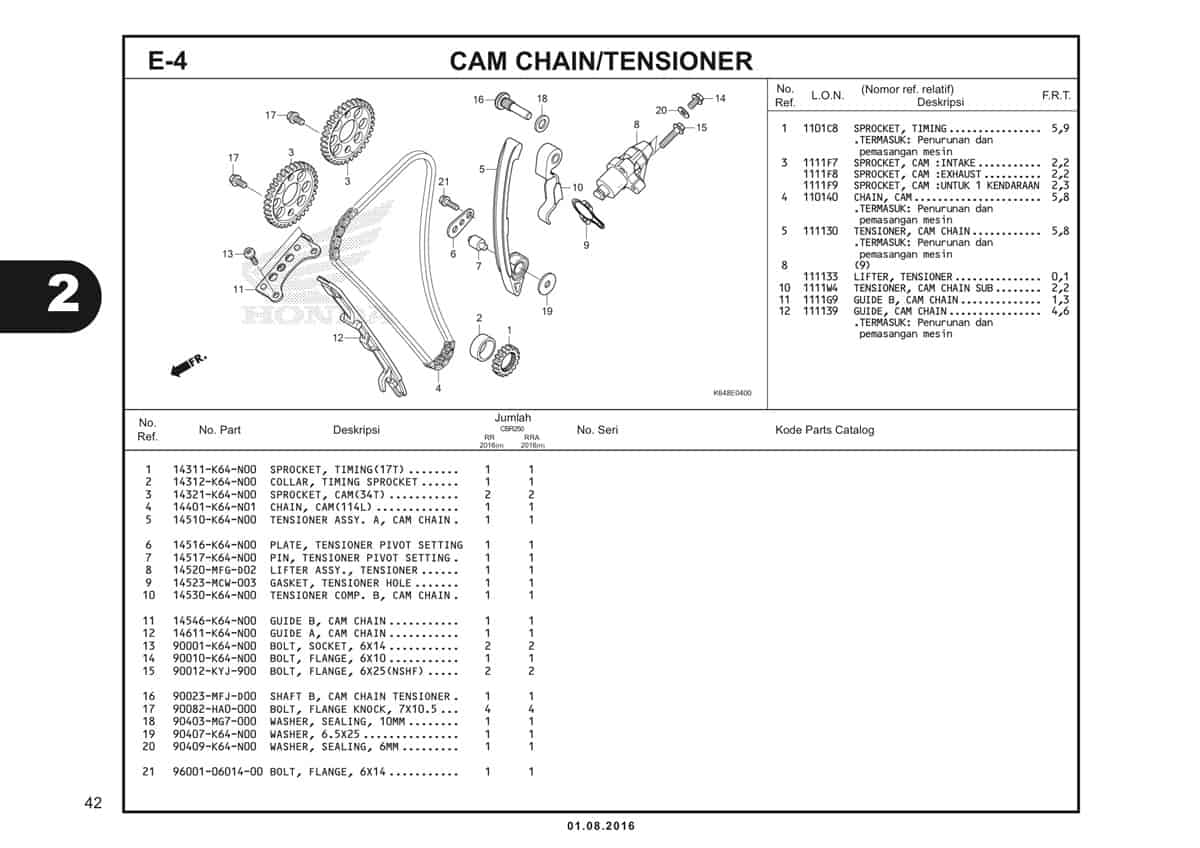

E4 – Cam Chain/Tensioner – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Sprocket Timing (17T) Part Number : `14311K64N00`
2	Collar Timing Sprocket Part Number : `14312K64N00`
3	Sprocket Cam Part Number : `14321K64N00`
4	Chain Cam Did Scr Part Number : `14401K64N01`
5	Tensioner Assy A Cam Chain Part Number : `14510K64N00`
6	Plate Tensioner Pivot Setting Part Number : `14516K64N00`
7	Pin Tensioner Pivot Setting Part Number : `14517K64N00`
8	Lifter Assy Tensioner Part Number : `14520MFGD02`
9	Gasket Tensioner Hole Part Number : `14523MCW003`
10	Tensioner Comp B Cam Chain Part Number : `14530K64N00`
11	Guide B Cam Chain Part Number : `14546K64N00`
12	Guide A Cam Chain Part Number : `14611K64N00`
13	Bolt Socket 6X14 Part Number : `90001K64N00`
14	Bolt Flange 6X10 Part Number : `90010K64N00`
15	Bolt Flange NSHF Part Number : `90012KYJ900`
16	Shaft B Cam Chain Tensioner Part Number : `90023MFJD00`
17	Bolt Flange Knock 7X10.5 Part Number : `90082HA0000`
18	Washer Sealing 10MM Part Number : `90403MG7000`
19	Washer 6.5X25 Part Number : `90407K64N00`
20	Washer Sealing 6MM Part Number : `90409K64N00`
21	Bolt Flange 6X14 Part Number : `960010601400`
