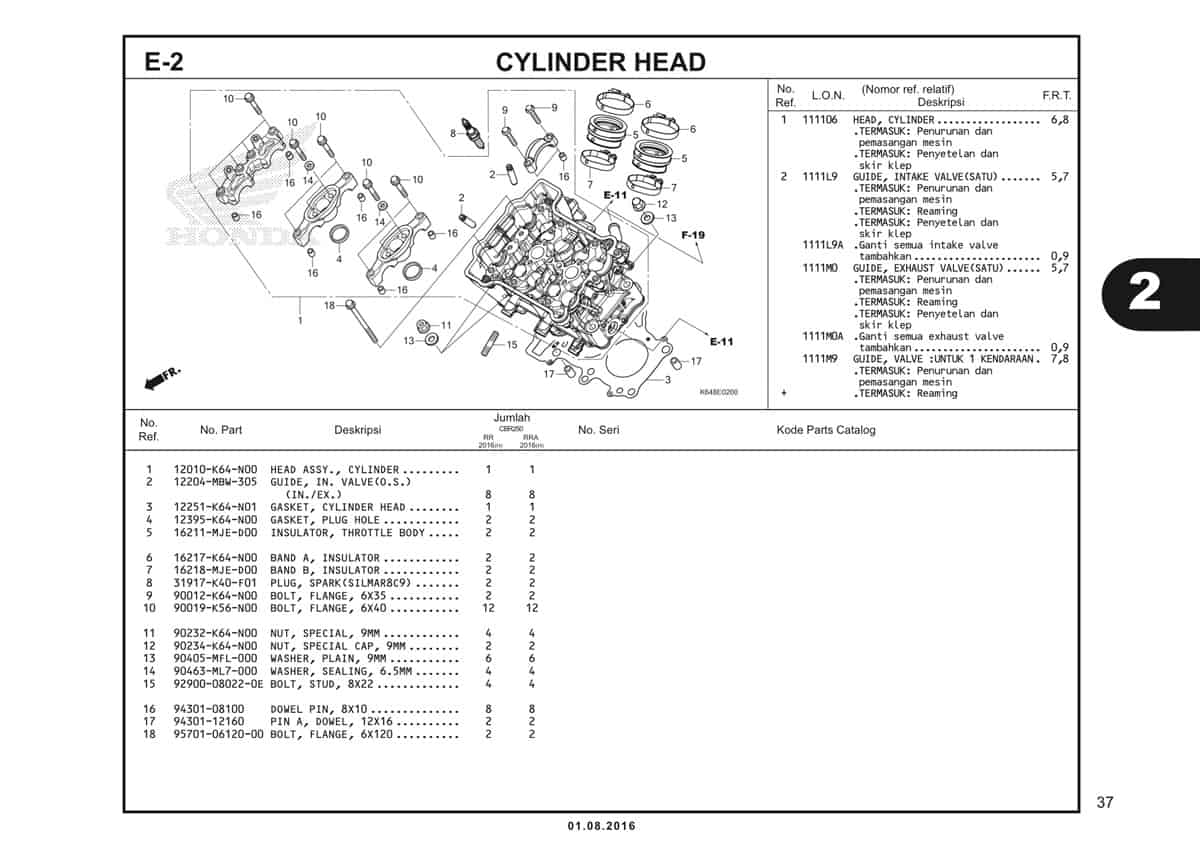

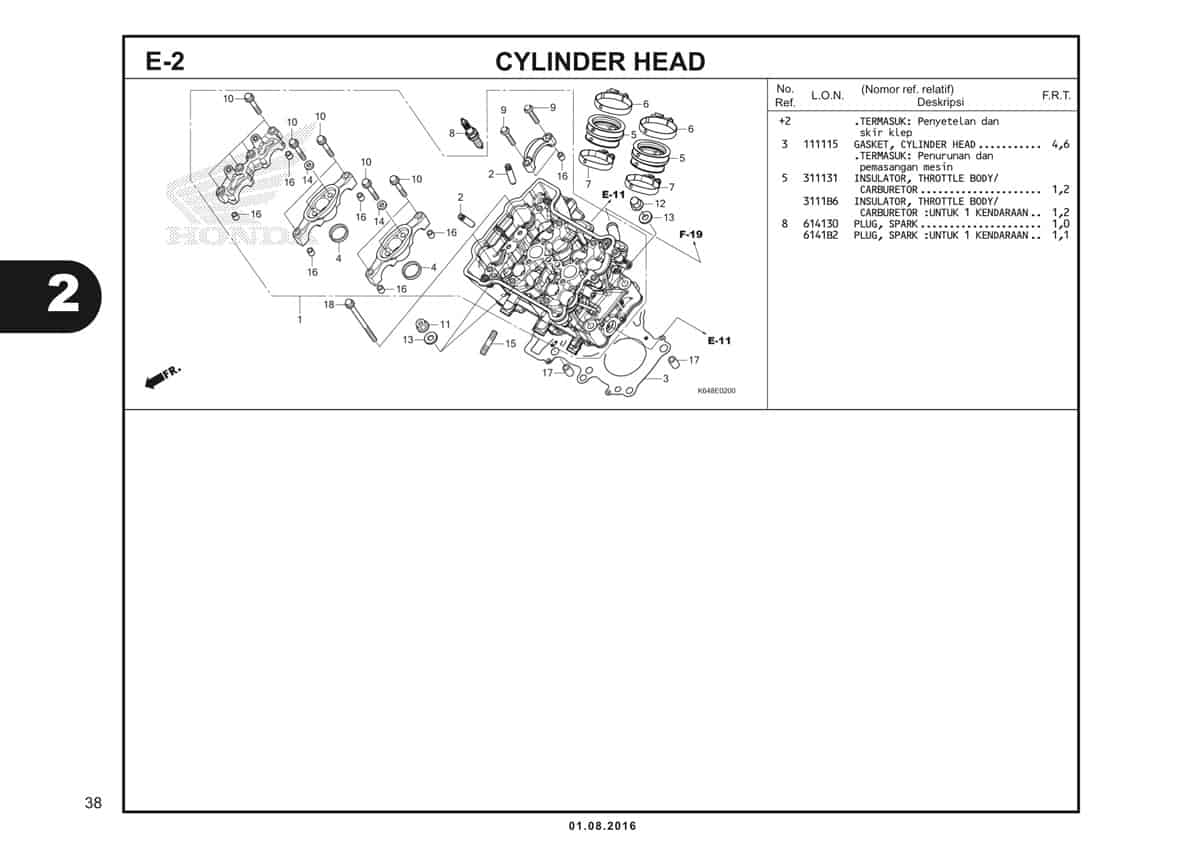

E2 – Cylinder Head – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Head Assy Cylinder Part Number : `12010K64N00`
2	Guide In Valve (O.S.) Part Number : `12204MBW305`
3	Gasket Cylinder Head Part Number : `12251K64N01`
3	Gasket Cylinder Head Part Number : `12251K64NA1`
4	Gasket Plug Hole Part Number : `12395K64N00`
5	Insulator Throttle Body Part Number : `16211MJED00`
6	Band A Insulator Part Number : `16217K64N00`
7	Band B Insulator Part Number : `16218MJED00`
8	Plug Spark (SILMAR8C9)(NGK) Part Number : `31917K40F01`
8	Spark PlugSilmar9C9 Part Number : `31917K64NA1`
9	Bolt Flange 6X35 Part Number : `90012K64N00`
10	Bolt Flange 6X40 Part Number : `90019K56N00`
11	Nut Special 9MM Part Number : `90232K64N00`
12	Nut Special Cap 9MM Part Number : `90234K64N00`
13	Washer Plain 9MM Part Number : `90405MFL000`
14	Washer Sealing 6.5MM Part Number : `90463ML7000`
15	Bolt Stud 8X22 Part Number : `92900080220E`
16	Pin Dowel 8X10 Part Number : `9430108100`
17	Pin Knck 12X16 Part Number : `9430112160`
18	Bolt Flange 6X120 Part Number : `957010612000`
