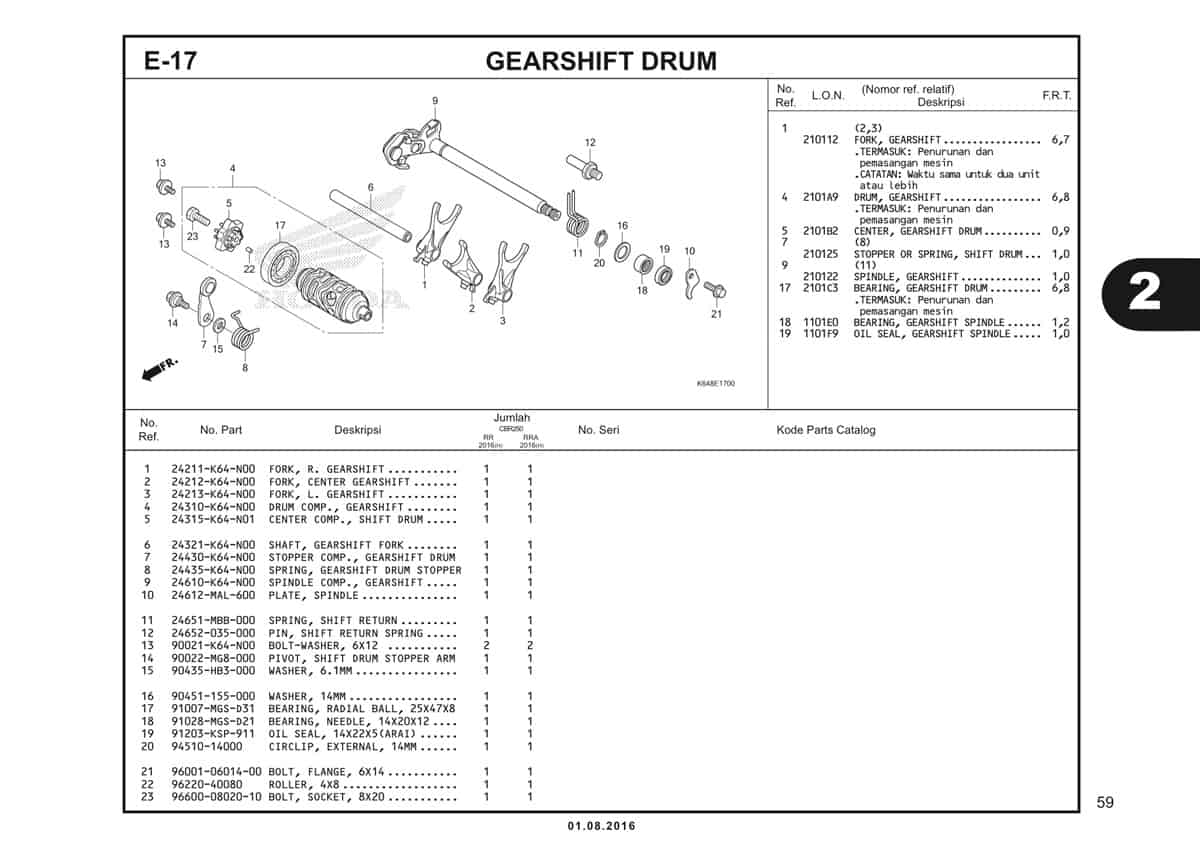

E17 – Gearshift Drum – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Fork R Gearshift Part Number : `24211K64N00`
2	Fork Center Gearshift Part Number : `24212K64N00`
3	Fork L Gearshift Part Number : `24213K64N00`
4	Drum Comp Gearshift Part Number : `24310K64N00`
5	Center Comp Shift Drum Part Number : `24315K64N01`
6	Shaft Gearshift Fork Part Number : `24321K64N00`
7	Stopper Comp Gearshift Drum Part Number : `24430K64N00`
8	Spring Gearshift Drum Stopper Part Number : `24435K64N00`
9	Spindle Comp Gearshift Part Number : `24610K64N00`
10	Plate Spindle Part Number : `24612MAL600`
11	Spring Shift Return Part Number : `24651MBB000`
12	Pin Shift Return Part Number : `24652035000`
13	Bolt Washer 6X12 Part Number : `90021K64N00`
14	Pivot Shift Drum Stopper Arm Part Number : `90022MG8000`
15	Washer 6.1MM Part Number : `90435HB3000`
16	Washer 14MM Part Number : `90451155000`
17	Bearing Radial Ball25X47X8 LBL Part Number : `91007MGSD31`
18	Bearing Needle 14X20X12 LBL Part Number : `91028MGSD21`
19	Oil Seal 14X22X5 Part Number : `91203KSP911`
20	Circlip 14MM Part Number : `9451014000`
21	Bolt Flange 6X14 Part Number : `960010601400`
22	Roller 4X8 Part Number : `9622040080`
23	Bolt Socket 8X20 Part Number : `966000802010`
