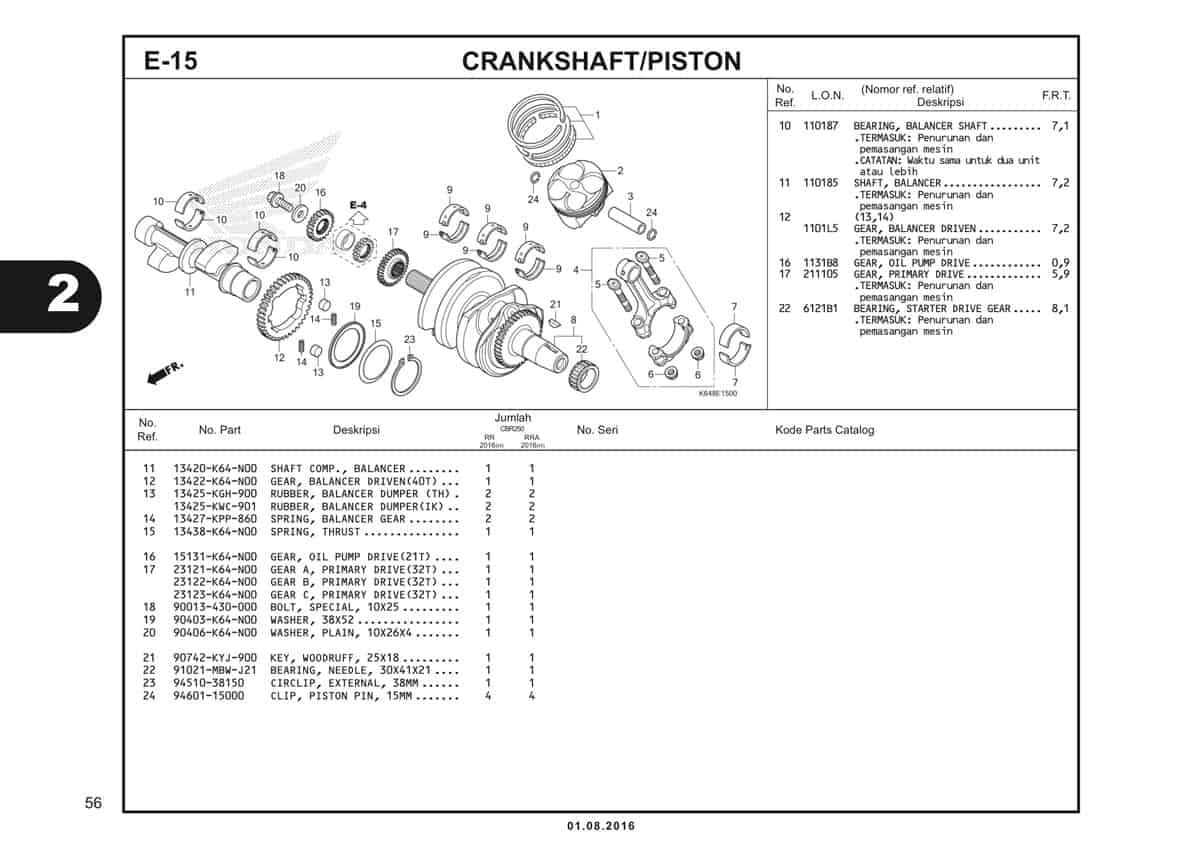

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Ring Set Piston (STD) | 13011K64N00 |
|
| 2 | Piston (STD) | 13101K64P00 |
|
| 3 | Pin Piston | 13111K64N00 |
|
| 4 | Rod Assy Connecting | 13210K64N00 |
|
| 5 | Bolt Connecting Rod | 13213K64N01 |
|
| 6 | Nut Connecting Rod | 13215K64N00 |
|
| 7 | Bearing Connecting Rod A | 13224K64N01 |
|
| 7 | Bearing Connecting Rod B | 13225K64N01 |
|
| 7 | Bearing Connecting Rod C | 13226K64N01 |
|
| 8 | Crankshaft Comp D | 13300K64N00 |
|
| 9 | Bearing Crankshaft A | 13313K64N01 |
|
| 9 | Bearing Crankshaft B | 13314K64N01 |
|
| 9 | Bearing Crankshaft C | 13315K64N01 |
|
| 9 | Bearing Crankshaft D | 13316K64N01 |
|
| 9 | Bearing Crankshaft E | 13317K64N01 |
|
| 10 | Bearing Balancer Shaft A | 13323K64N01 |
|
| 10 | Bearing Balancer Shaft B | 13324K64N01 |
|
| 10 | Bearing Balancer Shaft C | 13325K64N01 |
|
| 10 | Bearing Balancer Shaft D | 13326K64N01 |
|
| 10 | Bearing Balancer Shaft E | 13327K64N01 |
|
| 11 | Shaft Comp Balancer | 13420K64N00 |
|
| 12 | Gear Balancer Driven (40T) | 13422K64N00 |
|
| 13 | Rubber Balancer Dumper (TH) | 13425KGH900 |
|
| 13 | Rubber Balancer Dumper (IK) | 13425KWC901 |
|
| 13 | Rubber Balancer Dumper | 13425KGH901 |
|
| 14 | Spring Balancer Gear | 13427KPP860 |
|
| 15 | Spring Thrust | 13438K64N00 |
|
| 16 | Gear Oil Pump Drive (21T) | 15131K64N00 |
|
| 17 | Gear A Primary Drive (32T) | 23121K64N00 |
|
| 17 | Gear B Primary Drive (32T) | 23122K64N00 |
|
| 17 | Gear C Primary Drive (32T) | 23123K64N00 |
|
| 18 | Bolt Special 10X25 | 90013430000 |
|
| 19 | Washer 38X52 | 90403K64N00 |
|
| 20 | Washer Plain 10X26X4 | 90406K64N00 |
|
| 21 | Key Woodruff 25X18 | 90742KYJ900 |
|
| 22 | Bearing Needle 30X41X21 LBL | 91021MBWJ21 |
|
| 23 | Circlip External 38MM | 9451038150 |
|
| 24 | Clip Piston Pin 15MM | 9460115000 |
|
