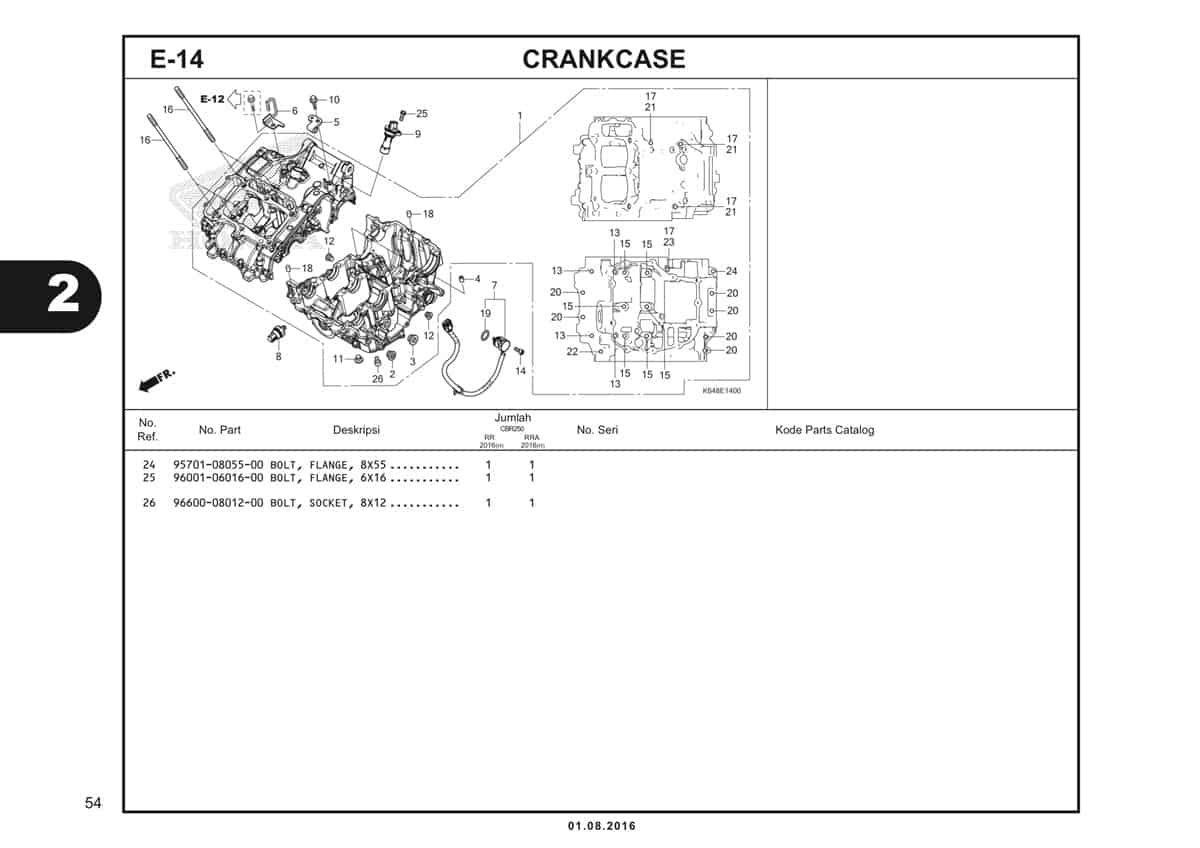

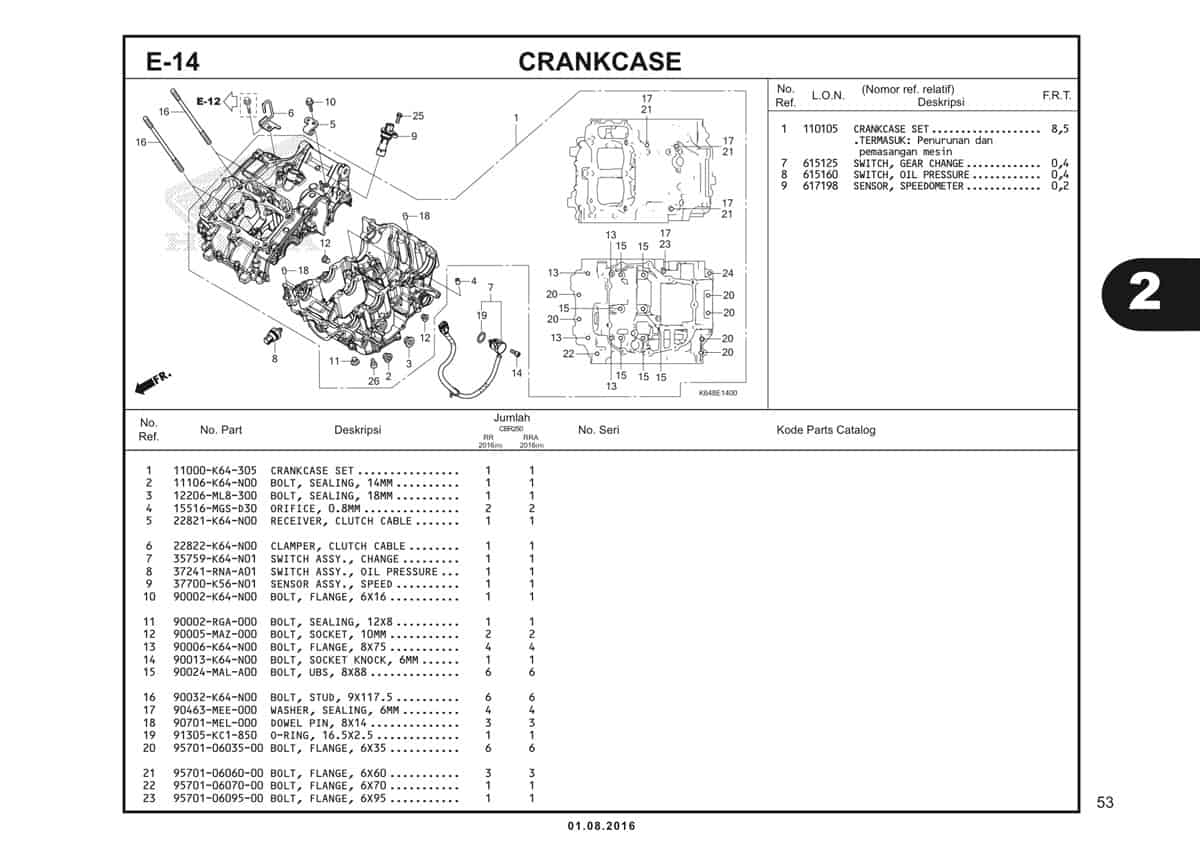

E14 – Crankcase – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Crankcase Set Part Number : `11000K64305`
2	Bolt Sealing 14MM Part Number : `11106K64N00`
3	Bolt Sealing 18MM Part Number : `12206ML8300`
4	Orifice 0.8MM Part Number : `15516MGSD30`
5	Reciever Clutch Cable Part Number : `22821K64N00`
6	Clamper Clutch Cable Part Number : `22822K64N00`
7	Switch Assy Change Part Number : `35759K64N01`
7	Switch Assy Change Part Number : `35759K64N02`
8	Switch Assy Oil Pressure Part Number : `37241RNAA01`
9	Sensor Assy Speed Part Number : `37700K56N01`
10	BOLT, FLANGE, 6X16 Part Number : `90002K64N00`
11	Bolt Sealing 12X8 Part Number : `90002RGA000`
12	Bolt Socket 10MM Part Number : `90005MAZ000`
13	Bolt Flange 8X75 Part Number : `90006K64N00`
14	Bolt Socket Knock 6MM Part Number : `90013K64N00`
15	Bolt Ubs 8X88 Part Number : `90024MALA00`
16	Bolt Stud 9X117.5 Part Number : `90032K64N00`
17	Washer Sealing 6MM Part Number : `90463MEE000`
18	Dowel Pin 8X14 Part Number : `90701MEL000`
19	O-Ring 16.5X2.5 Part Number : `91305KC1850`
20	Bolt Flange 6X35 Part Number : `957010603500`
21	Bolt Flange 6X60 Part Number : `957010606000`
22	Bolt Flange 6X70 Part Number : `957010607000`
23	Bolt Flange 6X95 Part Number : `957010609500`
24	Bolt Flange 8X55 Part Number : `957010805500`
25	Bolt Flange SH 6X16 Part Number : `960010601600`
26	Bolt Socket 8X12 Part Number : `966000801200`
