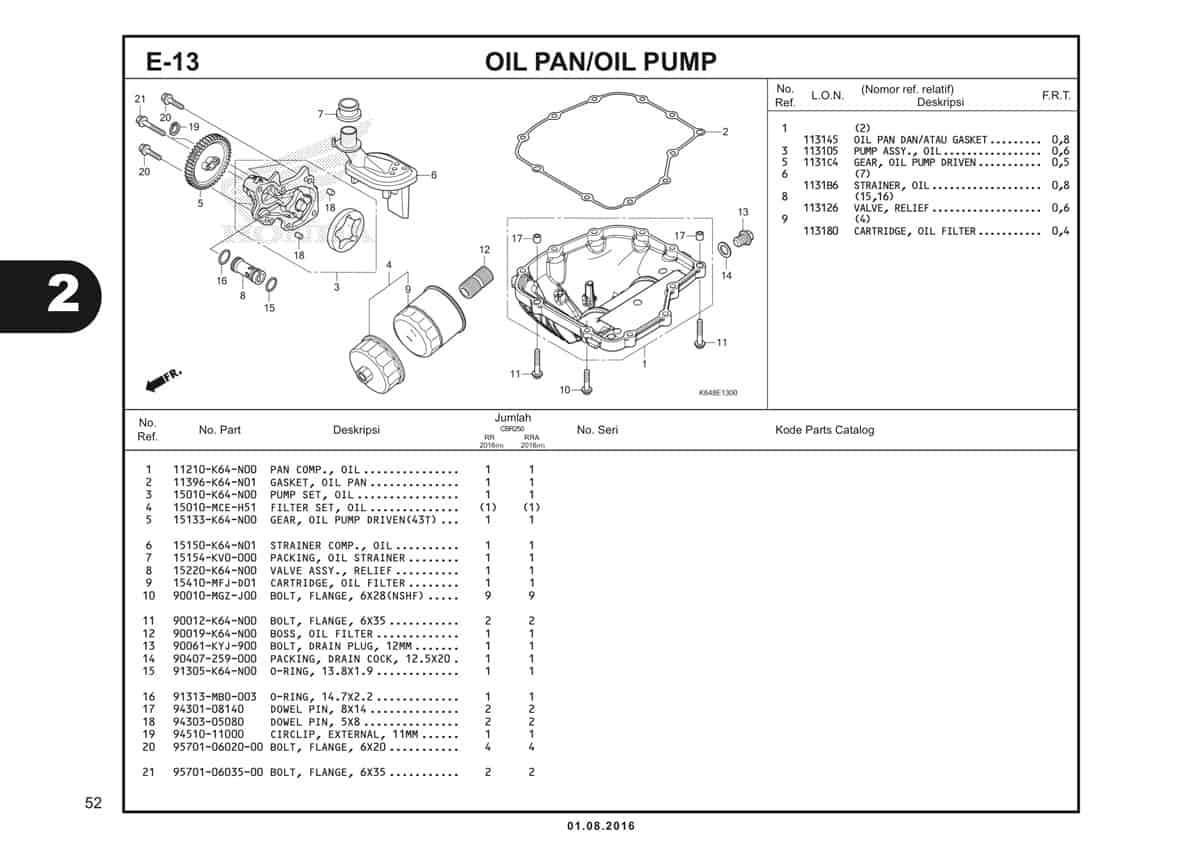

E13 – Oil Pan/Oil Pump – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Pan Comp Oil Part Number : `11210K64N00`
2	Gasket Oil Pan Part Number : `11396K64N01`
3	Pump Set Oil Part Number : `15010K64N00`
4	Filter Set Oil Part Number : `15010MCEH51`
4	Filter Set Oil Part Number : `15010MKR305`
5	Gear Oil Pump Driven (43T) Part Number : `15133K64N00`
6	Strainer Comp Oil Part Number : `15150K64N01`
7	Packing Oil Strainer Part Number : `15154KV0000`
8	Valve Assy Relief Part Number : `15220K64N00`
9	Cartridge Oil Filter Part Number : `15410MFJD01`
10	Bolt Flange 6X28 (NSHF) Part Number : `90010MGZJ00`
11	Bolt Flange 6X35 Part Number : `90012K64N00`
12	Boss Oil Filter Part Number : `90019K64N00`
13	Bolt Plug Drain 12MM Part Number : `90061KYJ900`
14	Packing Cock Part Number : `90407259000`
15	O-Ring 13.8X1.9 Part Number : `91305K64N00`
16	O-Ring 14.7X2.2 Part Number : `91313MB0003`

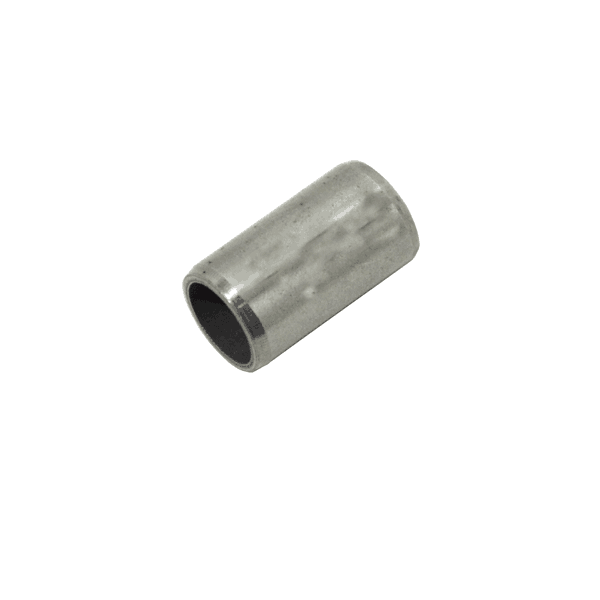

17	Pin Dowel 8X14 Part Number : `9430108140`
18	Dowel Pin 5X8 Part Number : `9430305080`
19	Circlip External 11MM Part Number : `9451011000`
20	Bolt Flange 6X20 Part Number : `957010602000`
21	Bolt Flange 6X35 Part Number : `957010603500`
