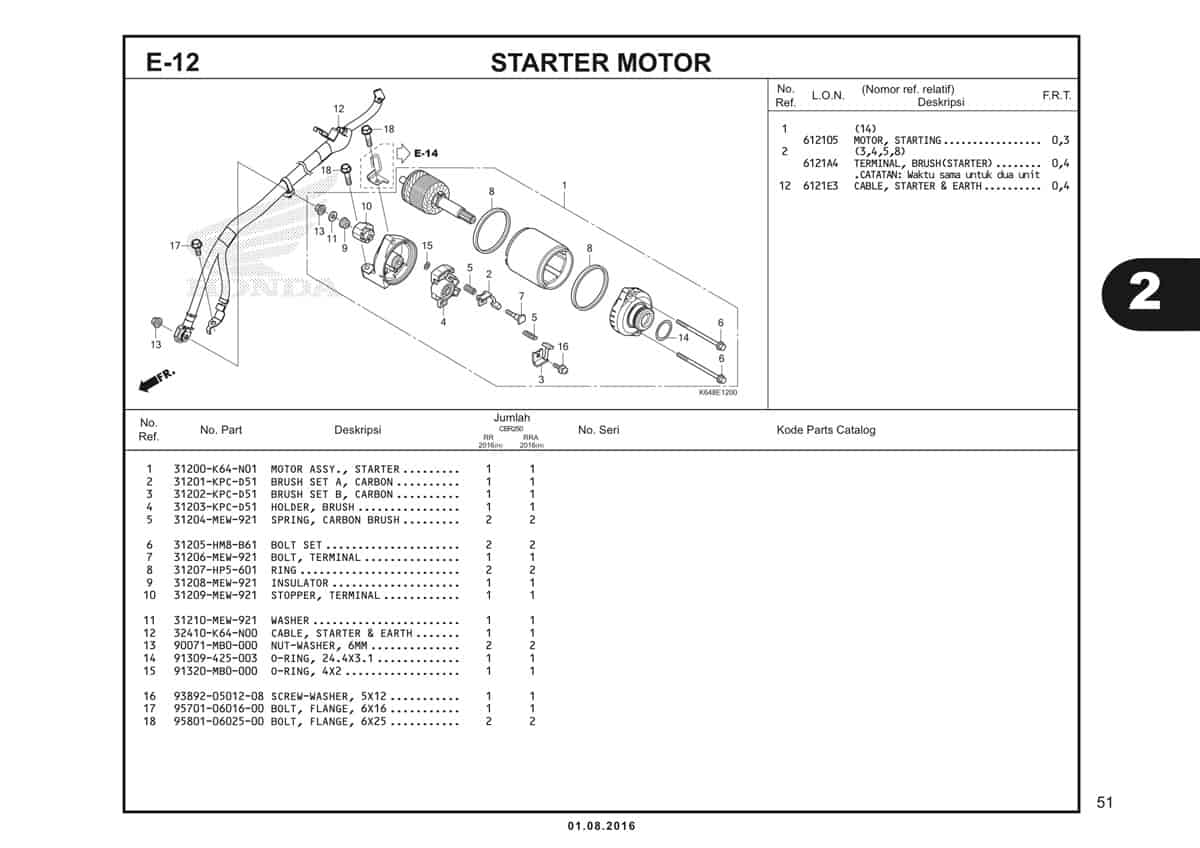

E12 – Starter Motor – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Motor Assy Starte Part Number : `31200K64N01`
2	Carbon Brushset Ato Part Number : `31201KPCD51`
3	Carbon Brus B Seto Part Number : `31202KPCD51`
4	Holder Brush Part Number : `31203KPCD51`
5	Spring Carbon Brush LBL Part Number : `31204MEW921`
6	Bolt Set Part Number : `31205HM8B61`
7	Bolt Set Part Number : `31206MEW921`
8	Ring Part Number : `31207HP5601`
9	Insulator Part Number : `31208MEW921`
10	Terminal Stopper Part Number : `31209MEW921`
11	Washer Part Number : `31210MEW921`
12	Cable Starter & Earth Part Number : `32410K64N00`
13	Nut Washer 6MM Part Number : `90071MB0000`
14	O-Ring 24.4X3.1 Part Number : `91309425003`
15	O Ring Part Number : `91320MB0000`
16	Screw Washer 5X12 Part Number : `938920501208`
17	Bolt Flange 6X16 Part Number : `957010601600`
18	Bolt Flange 6X25 Part Number : `958010602500`
