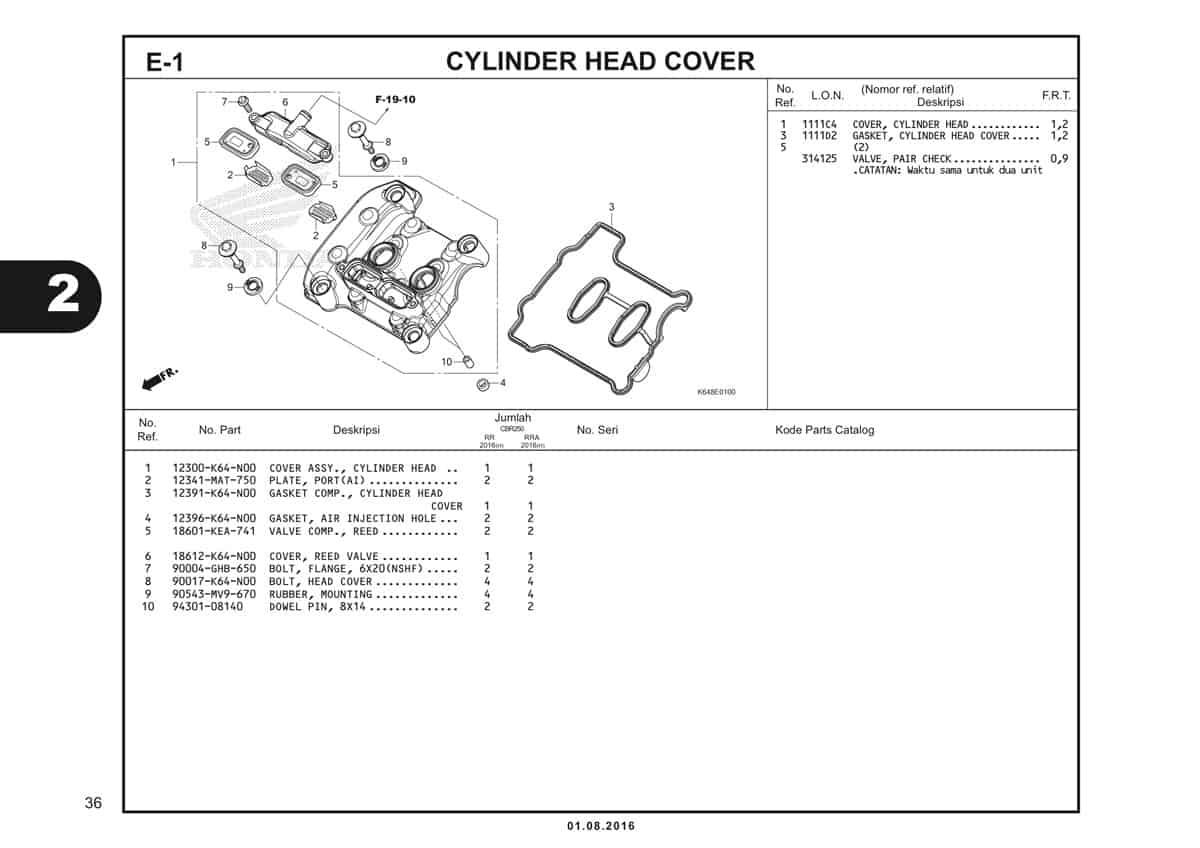

E1 – Cylinder Head Cover – Katalog Honda CBR 250RR K64

#	Informasi Produk	Visual
1	Cover Assy Cylinder Head Part Number : `12300K64N00`
2	Plate AI Port Part Number : `12341MAT750`
3	Gasket Comp Head Part Number : `12391K64N00`
4	Gasket AI Hole Cover Part Number : `12396K64N00`
5	Reed Valve Comp Part Number : `18601KEA741`
6	Cover Reed Valve Part Number : `18612K64N00`
7	Bolt Flange 6X20 Part Number : `90004GHB650`
8	Bolt Head Cover Part Number : `90017K64N00`
9	Rubber Mounting Part Number : `90543MV9670`

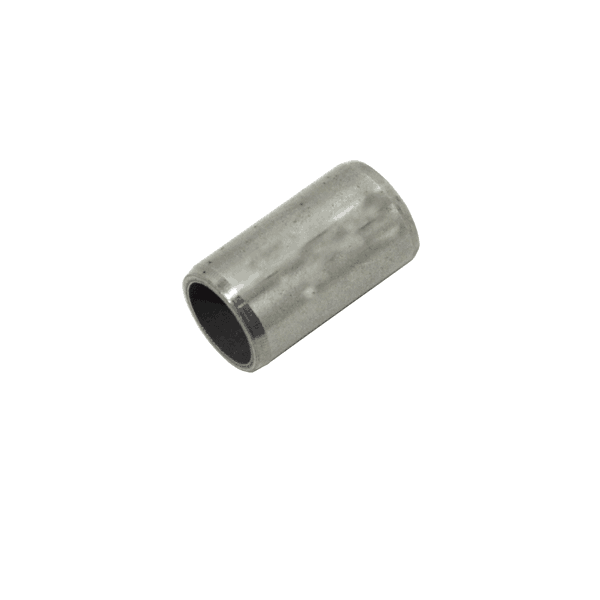

10	Pin Dowel 8X14 Part Number : `9430108140`
