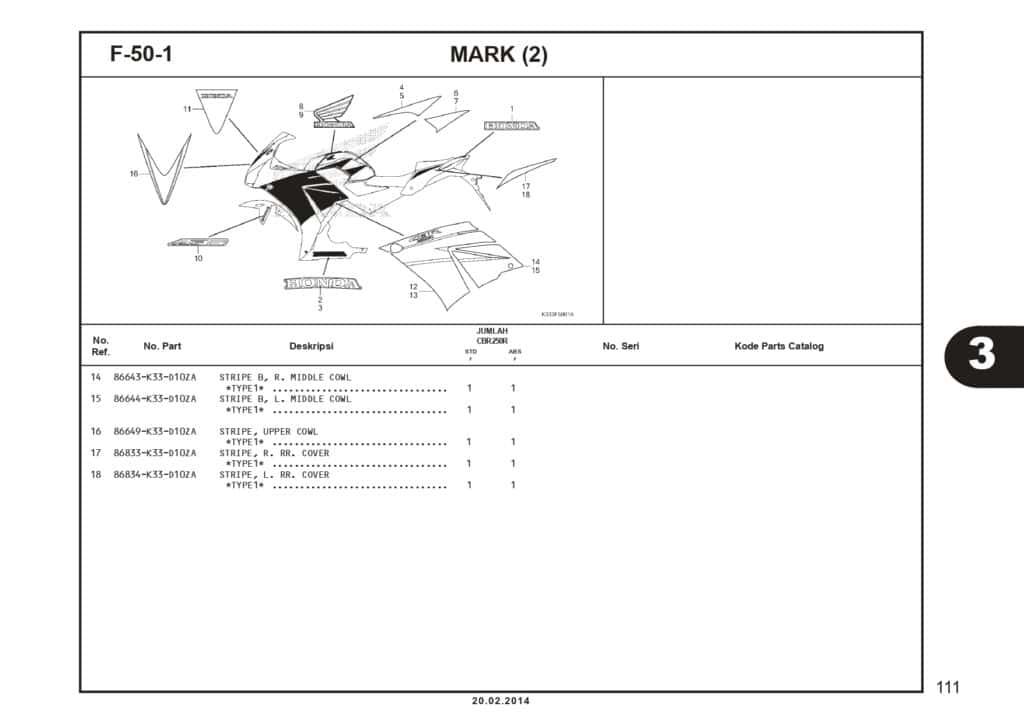

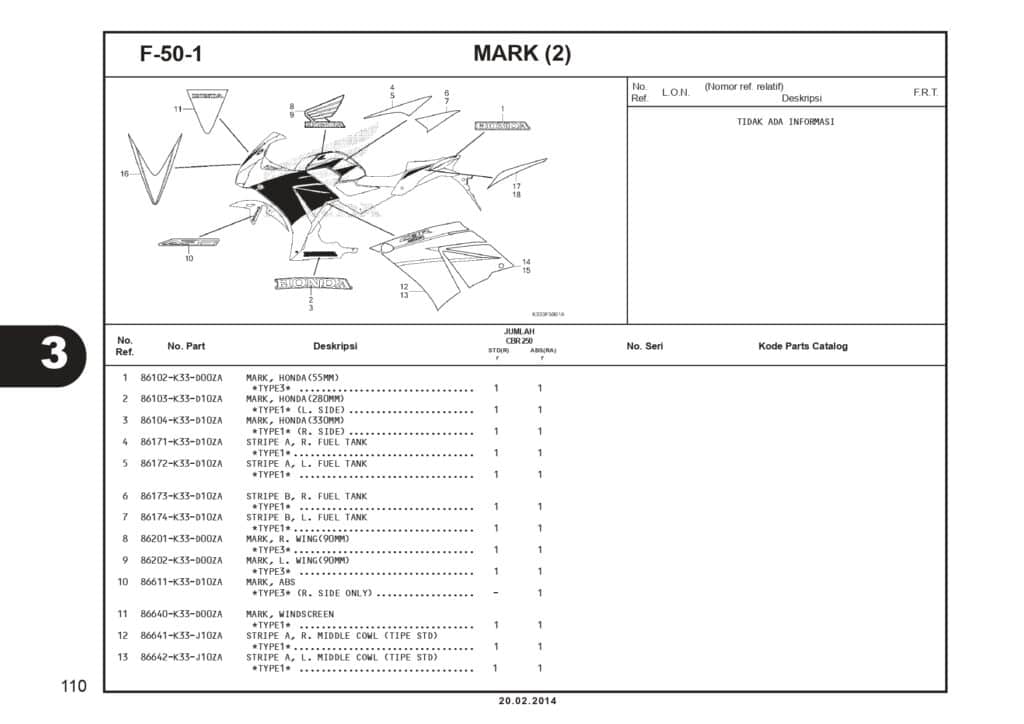

F-50-1 Mark 2 – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	MARK HONDA(55MM) Part Number : `86102K33D00ZA`
2	MARK HONDA(280MM)(L SIDE) Part Number : `86103K33D10ZA`
3	MARK HONDA(330MM)(R SIDE) Part Number : `86104K33D10ZA`
4	STRIPE A R FUEL TANK Part Number : `86171K33D10ZA`
5	STRIPE A L FUEL TANK Part Number : `86172K33D10ZA`
6	STRIPE B R FUEL TANK Part Number : `86173K33D10ZA`
7	STRIPE B L FUEL TANK Part Number : `86174K33D10ZA`
8	MARK R WING(90MM) Part Number : `86201K33D00ZA`
9	MARK L WING(90MM) Part Number : `86202K33D00ZA`
10	MARK ABS(R SIDE ONLY) Part Number : `86611K33D10ZA`
11	MARK WIND SCREEN Part Number : `86640K33D00ZA`
12	STRIPE A R MIDDLE COWL Part Number : `86641K33J10ZA`
13	STRIPE A L MIDDLE COWL Part Number : `86642K33J10ZA`
14	STRIPE B R MIDDLE COWL Part Number : `86643K33D10ZA`
15	86644K33D10ZA Part Number : `86644K33D10ZA`
16	86649K33D10ZA Part Number : `86649K33D10ZA`
17	86833K33D10ZA Part Number : `86833K33D10ZA`
18	STRIPE L RR COWL Part Number : `86834K33D10ZA`
