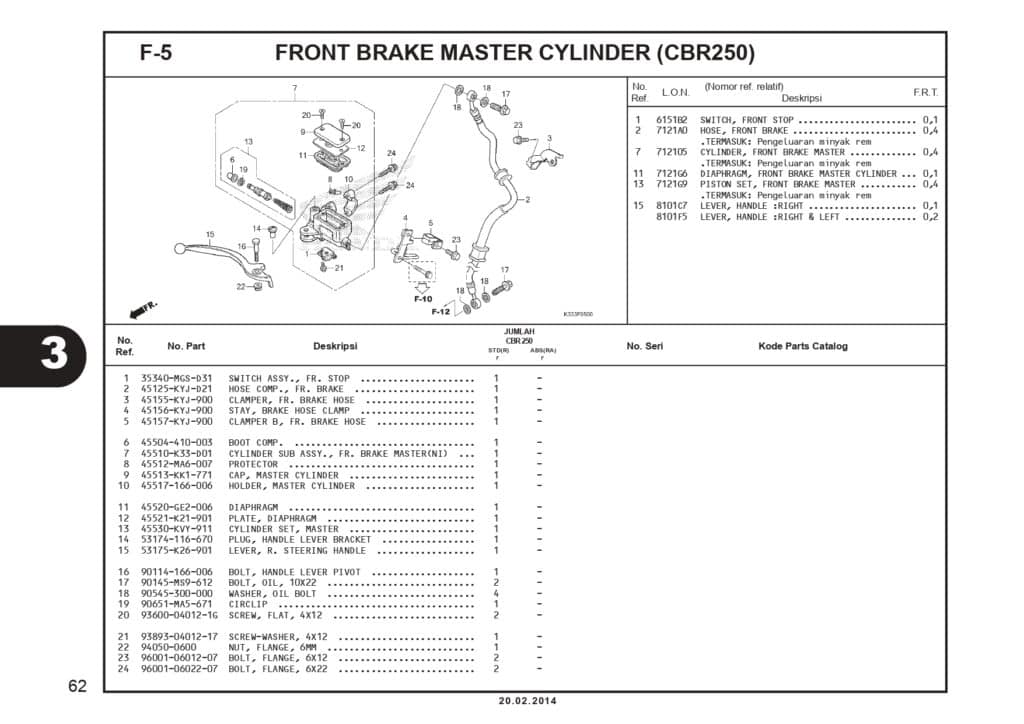

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SWITCH FR STOP ASSY | 35340MGSD31 |
|
| 2 | HOSE COMP FR BRAKE | 45125KYJD21 | - |
| 3 | CLAMPER,FR BRAKE HOSE | 45155KYJ900 | - |
| 4 | STAY,BRK HOSE CLAMP | 45156KYJ900 | - |
| 5 | CLAMPER B,FR BRAKE HOSE | 45157KYJ900 | - |
| 6 | BOOT COMP | 45504410003 |
|
| 7 | CYL SUB ASSY FR BRAKE | 45510K33D01 | - |
| 8 | PROTECTOR | 45512MA6006 |
|
| 9 | CAP MASTER CYLINDER | 45513KK1771 |
|
| 10 | HOLDER MASTER CYL | 45517166006 |
|
| 11 | DIAPHRAGM | 45520GE2006 |
|
| 12 | PLATE DIAPHRAGM | 45521K21901 |
|
| 13 | CYLINDER SET MASTER | 45530KVY911 |
|
| 14 | PLUG, HANDLELEVERBRAKET | 53174116670 | - |
| 15 | LEVER R STEERING HANDLE | 53175K26901 |
|
| 16 | BOLT, HANDLE LEVER PIVOT | 90114166006 |
|
| 17 | BOLT OIL 10X22 | 90145MS9612 | - |
| 18 | WASHER OIL BOLT | 90545300000 |
|
| 19 | CIRCLIP | 90651MA5671 |
|
| 20 | SCREW FLAT, 4X12 | 93600040121G |
|
| 21 | SCREW WASHER 4X12 | 938930401217 |
|
| 22 | NUT,FLANGE 6MM | 9405006000 |
|
| 23 | BOLT FLANGE 6X12 | 960010601207 |
|
| 24 | BOLT FLANGE 6X22 | 960010602207 |
|
