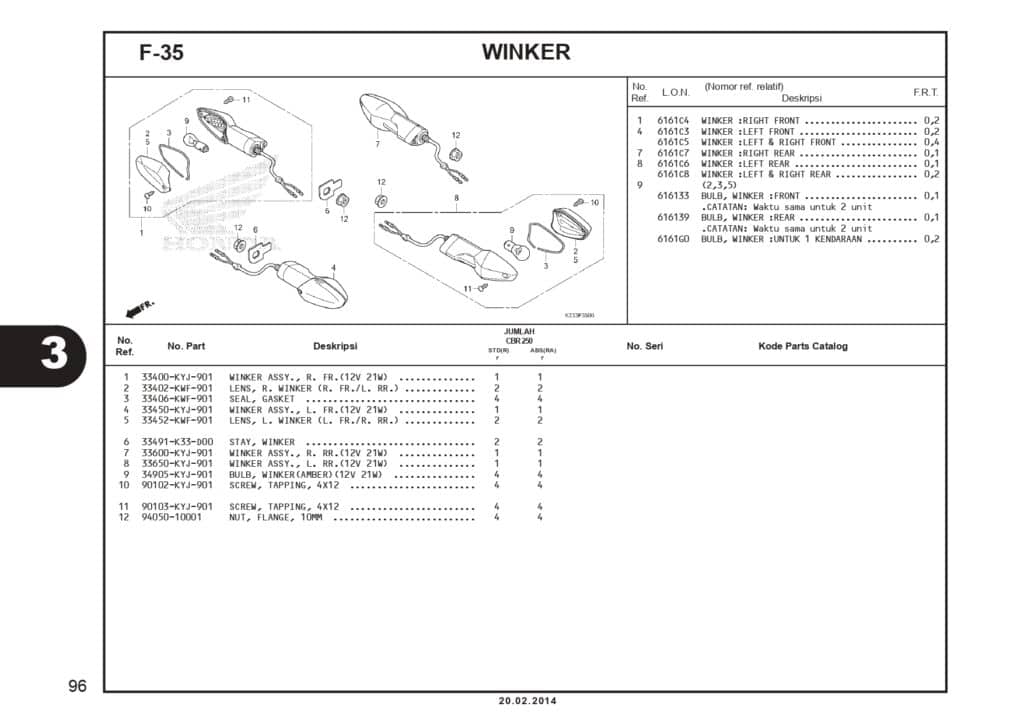

F-35 Winker – Katalog Suku Cadang Honda CBR 250R CBU
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
WINKER ASSY R FR |
33400KYJ901 |
-
|
| 2 |
LENS R WINKER |
33402KWF901 |
-
|
| 3 |
SEAL, GASKET |
33406KWF901 |
-
|
| 4 |
WINKER ASSY L FR |
33450KYJ901 |
-
|
| 5 |
LENS L WINKER |
33452KWF901 |
-
|
| 6 |
STAY WINKER |
33491K33D00 |
-
|
| 7 |
WINKER ASSY R RR |
33600KYJ901 |
-
|
| 8 |
WINKER ASSY L RR |
33650KYJ901 |
-
|
| 9 |
BULB WINKER(PY21W) |
34905KYJ901 |
|
| 10 |
SCREW TAPPINGM4X1 |
90102KYJ901 |
-
|
| 11 |
SCREW TAPPINGM4X1 |
90103KYJ901 |
-
|
| 12 |
Nut Flange 10mm |
9405010000 |
|
