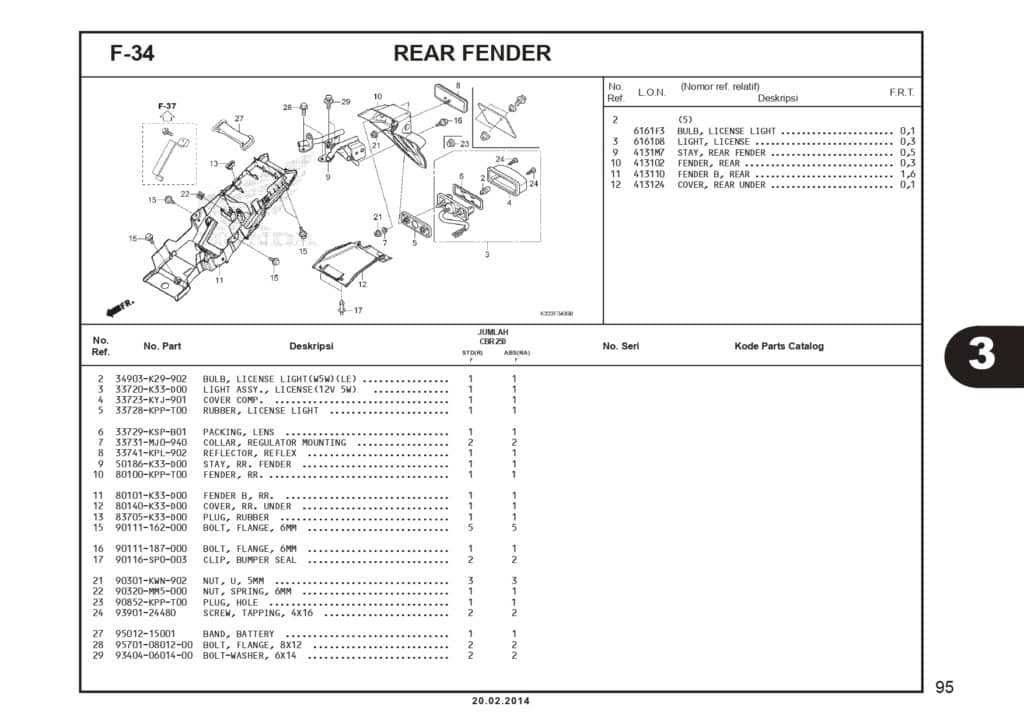

F-34 Rear Fender – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
2	BULB LICENSE LIGHT(W5W) Part Number : `34903K29902`
3	LIGHT ASSY LICENS(12V 5W) Part Number : `33720K33D00`
4	COVER COMP Part Number : `33723KYJ901`
5	RUBBER,LICENSE LIGHT Part Number : `33728KPPT00`
6	PACKING,LENS Part Number : `33729KSPB01`
7	COLLAR,REGULATOR MOUNT Part Number : `33731MJ0940`
8	REFLEX REFLECTOR Part Number : `33741KPL902`
9	STAY RR FENDER Part Number : `50186K33D00`
10	FENDER RR Part Number : `80100KPPT00`
11	FENDER B RR Part Number : `80101K33D00`
12	COVER RR UNDER Part Number : `80140K33D00`
13	PLUG RUBBER Part Number : `83705K33D00`
15	BOLT FLANGE 6MM Part Number : `90111162000`
16	BOLT FLANGE 6MM Part Number : `90111187000`
17	90116K2PV61 Part Number : `90116SP0003`
17	Clip Bpr Seal Part Number : `90116K2PV61`
21	NUT, U, 5MM Part Number : `90301KWN901`
22	NUT SPRING,6MM Part Number : `90320MM5000`
23	PLUG,HOLE Part Number : `90852KPPT00`
24	SCREW,TAPP 4X16 Part Number : `9390124480`
27	BAND D,BATTERY Part Number : `9501215001`
28	BOLT, FLANGE, 8X12 Part Number : `957010801200`
29	BOLT-WASHER 6X14 Part Number : `934040601400`
