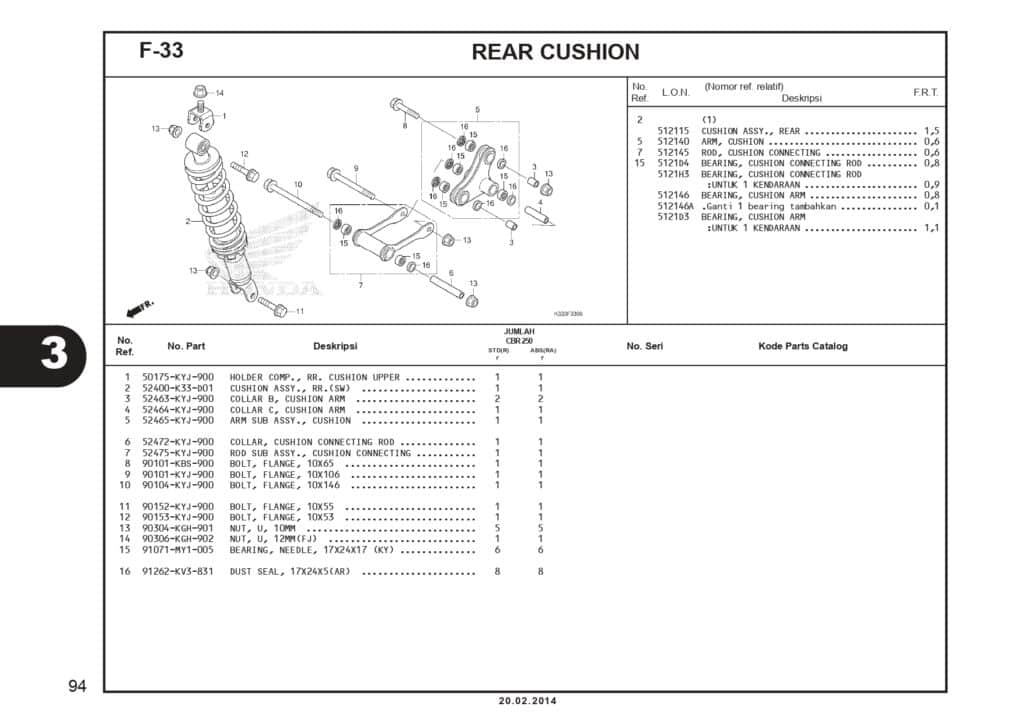

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HLDR COMP,RR CSH UPPER | 50175KYJ900 |
|
| 2 | CUSHION ASSY RR | 52400K33D01 | - |
| 3 | COLLAR B,CUSHION ARM | 52463KYJ900 |
|
| 4 | COLLAR C,CUSHION ARM | 52464KYJ900 |
|
| 5 | ARM SUB ASSY,CUSHION | 52465KYJ900 | - |
| 6 | CLLR,CSH CONNEC ROD | 52472KYJ900 |
|
| 7 | ROD SUB ASSY,CSH CONNEC | 52475KYJ900 | - |
| 8 | BOLT,FLANGE 10X65 | 90101KBS900 | - |
| 9 | BOLT,FLANGE 10X106 | 90101KYJ900 |
|
| 10 | BOLT,FLANGE 10X146 | 90104KYJ900 | - |
| 11 | BOLT,FLANGE 10X55 | 90152KYJ900 |
|
| 12 | BOLT,FLANGE 10X53 | 90153KYJ900 |
|
| 13 | NUT U10MM | 90304KGH901 |
|
| 14 | 90306KGH902 | 90306KGH902 |
|
| 14 | Nut U 12mm | 90306KGH901 |
|
| 15 | BRG,NDL.17X24X17 | 91071MY1005 |
|
| 16 | DUST SEAL,17X24X5 | 91262KV3831 |
|
