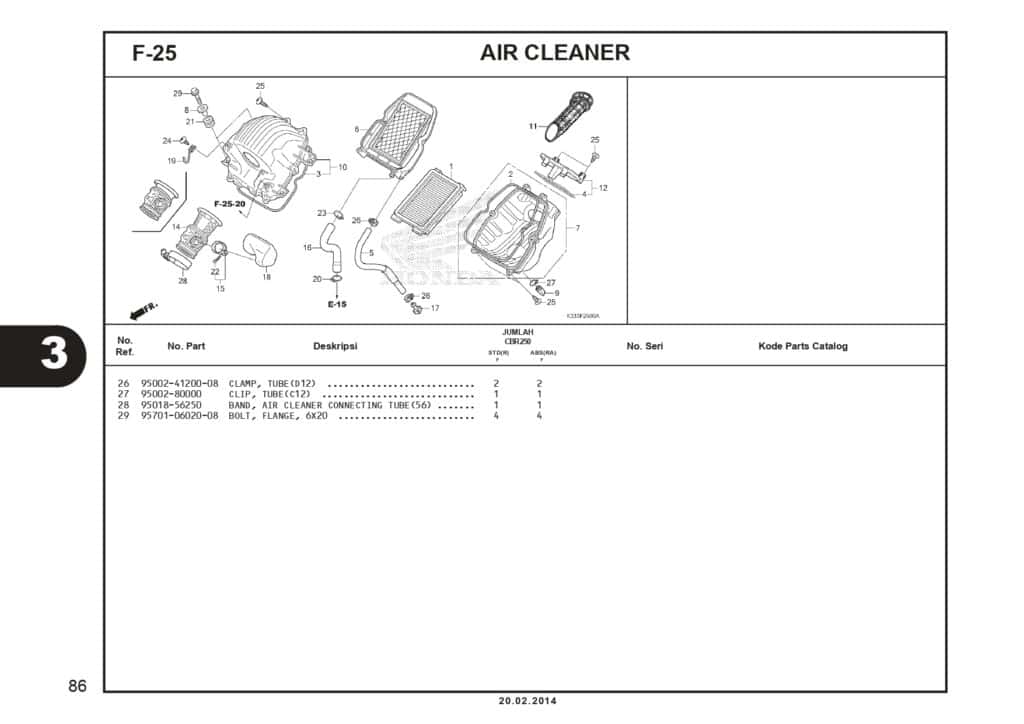

F-25 Air Cleaner – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	ELMNT COMP AIR/C Part Number : `17211KYJ900`
2	SEAL, AIR CLEANER Part Number : `17213KYJ900`
3	SEAL, AIR CLEANER Part Number : `17213KYJ900`
4	SEAL, LID Part Number : `17214KYJ900`
5	TUBE,AIR/C DRAIN Part Number : `17215KYJ900`
6	HOLDER COMP., ELEMENT Part Number : `17220KYJ900`
7	CASE SUB ASSY, AIR CLEANER Part Number : `17225KYJ900`
8	17232KYJ901 Part Number : `17232KYJ901`
9	TUBE A/C DRAIN Part Number : `17234KCW871`
10	COVER SUB ASSY AIR CLEANER Part Number : `17235KYJ900`
11	DUCT INLET Part Number : `17240K33D00`
12	LID SUB ASSY AIR CLEANER Part Number : `17245KYJ901`
12	LID SUB ASSY AIR CLEANER Part Number : `17245KYJ901`
14	TUBE AIR CLEANER CON Part Number : `17253K33J00`
15	BAND 28,RESONATOR Part Number : `17255MCG000`
16	TUBE BREATHER Part Number : `17265KYJ900`
17	PLUG BRTHR.TUBE Part Number : `17370419700`
18	RESONATOR Part Number : `17410KYJ900`
19	GUIDE BREATHER TUBE Part Number : `17512KYJ960`
20	CLIP,TANK HOSE Part Number : `17724102700`
21	RUBBER COVER Part Number : `83545KCJ690`
22	SCREW,PAN 5X25 Part Number : `90227GHRE00`
23	CLIP,AIR HOSE,16 Part Number : `90646657000`
24	SCREW, TAPPING, 5X12 Part Number : `9390325280`
25	SCREW,TAPP 5X2 Part Number : `9390325480`
26	CLAMP D12 TUBE Part Number : `950024120008`
27	CLIP, TUBE(C12) Part Number : `9500280000`
28	BAND 56,AIR/C CONNECTING TUBE Part Number : `9501856250`
29	BOLT FLANGE 6X20 Part Number : `957010602008`
