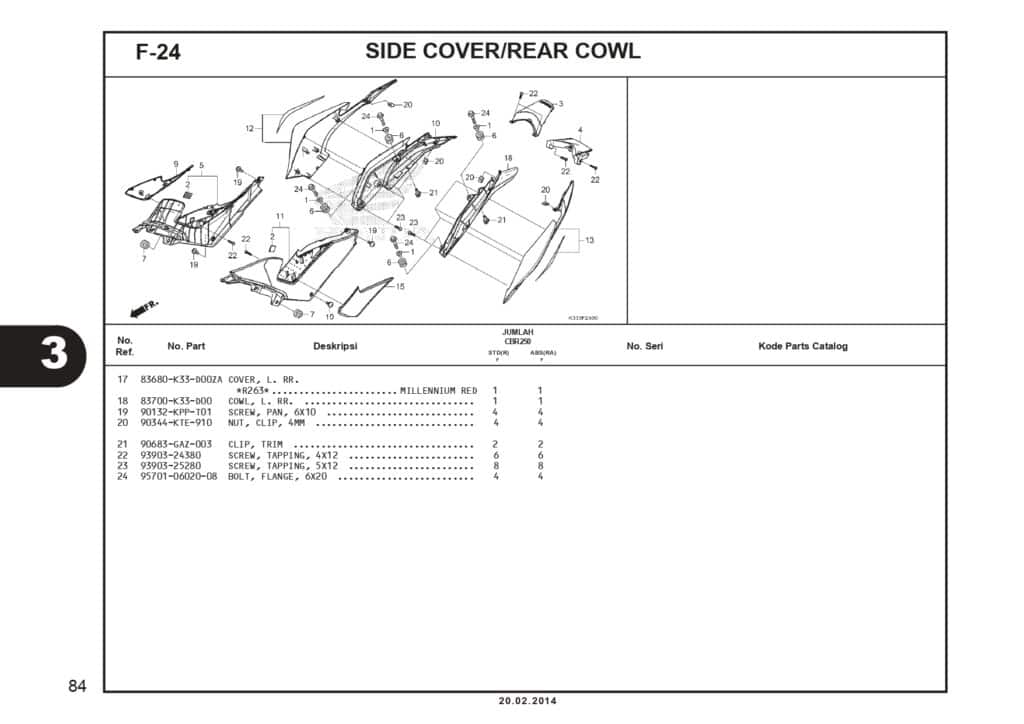

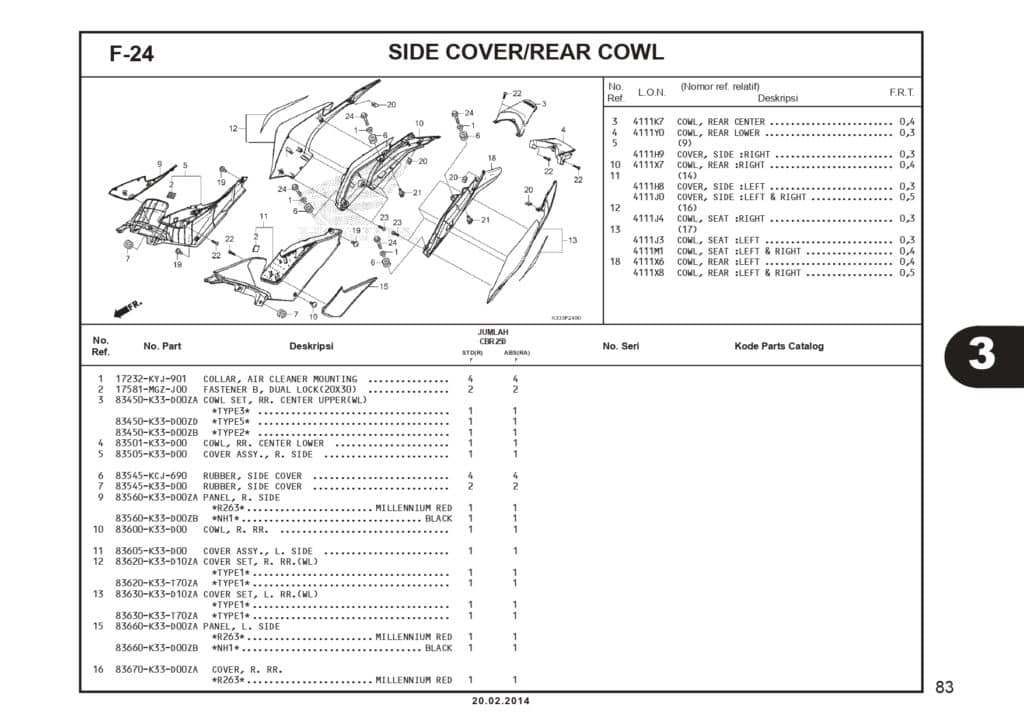

F-24 Side Cover Rear Cowl – Katalog Suku Cadang Honda CBR 250R CBU
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
17232KYJ901 |
17232KYJ901 |
-
|
| 2 |
FASTENER B DUAL L(20X30) |
17581MGZJ00 |
|
| 3 |
SET ILL CTR UP COWL(RW) |
83450K33D00ZA |
-
|
| 3 |
SET ILL CTR UP COWL(NO) |
83450K33D00ZD |
-
|
| 3 |
SET ILL CTR UP COWL(MR) |
83450K33D00ZB |
-
|
| 4 |
COWL RR CENTER LOWER |
83501K33D00 |
-
|
| 5 |
COVER ASSY R SIDE |
83505K33D00 |
-
|
| 6 |
RUBBER COVER |
83545KCJ690 |
|
| 7 |
RUBBER SIDE COVER |
83545K33D00 |
-
|
| 9 |
PANEL R SIDE |
83560K33D00ZA |
-
|
| 9 |
PANEL R SIDE |
83560K33D00ZB |
-
|
| 10 |
COWL R RR |
83600K33D00 |
-
|
| 11 |
COVER ASSY L SIDE |
83605K33D00 |
-
|
| 12 |
COVER SET R RR(WL) |
83620K33D10ZA |
-
|
| 12 |
SET ILLUST R REARDOOR |
83620K33T70ZA |
-
|
| 13 |
COVER SET L RR(WL) |
83630K33D10ZA |
-
|
| 13 |
SET ILLUST L REAR COVER |
83630K33T70ZA |
-
|
| 15 |
PANEL L SIDE |
83660K33D00ZA |
-
|
| 15 |
PANEL L SIDE |
83660K33D00ZB |
-
|
| 16 |
COVER R REAR |
83670K33D00ZA |
-
|
| 17 |
COVER L REAR |
83680K33D00ZA |
-
|
| 18 |
COWL L RR |
83700K33D00 |
-
|
| 19 |
90132KPPT00 |
90132KPPT01 |
-
|
| 20 |
NUT,CLIP 4MM |
90344KTE910 |
-
|
| 21 |
CLIP,TRIM |
90683GAZ003 |
|
| 22 |
SCREW TAPPING 4X12 |
9390324380 |
|
| 23 |
SCREW, TAPPING, 5X12 |
9390325280 |
|
| 24 |
BOLT FLANGE 6X20 |
957010602008 |
|
