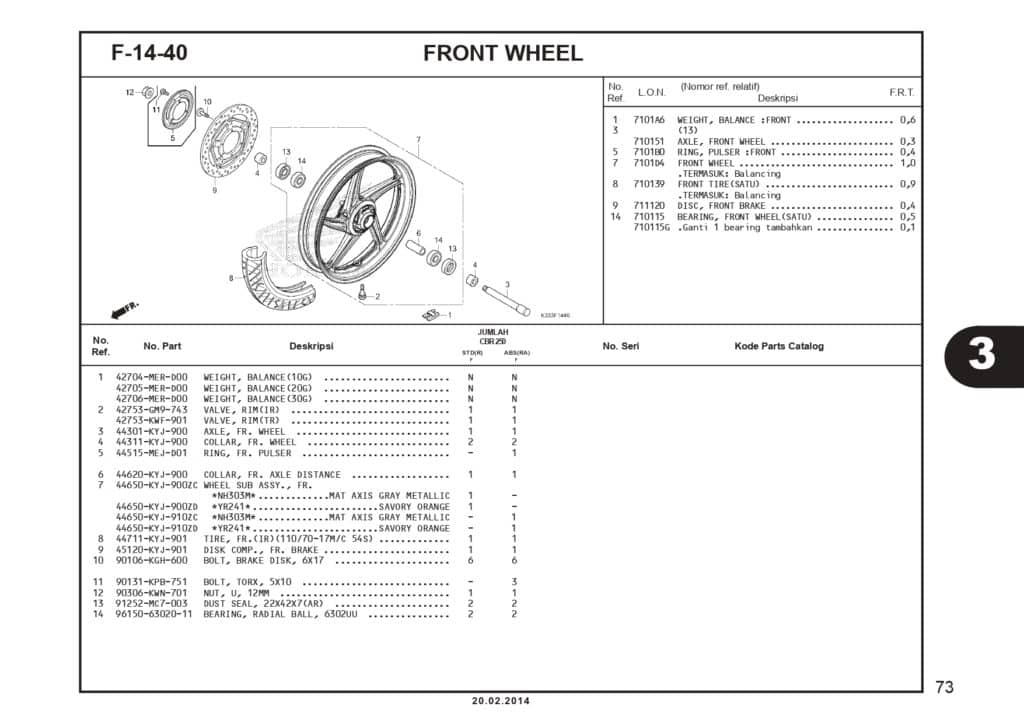

F-14-40 Front Wheel – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	WEIGHT, BALANCE(10G) Part Number : `42704MERD00`
1	WEIGHT, BALANCE(20G) Part Number : `42705MERD00`
1	WEIGHT, BALANCE(30G) Part Number : `42706MERD00`
2	VALVE,RIM (INOUE) Part Number : `42753GM9743`
2	VALVE,RIM(TRITON) Part Number : `42753KWF901`
3	AXLE,FR WHEEL Part Number : `44301KYJ900`
4	COLLAR,FR WHEEL Part Number : `44311KYJ900`
5	RING FR PULSER Part Number : `44515MEJD01`
6	COLLAR,FR AXLE DIST Part Number : `44620KYJ900`
7	WHEEL SUB ASSY,FR PRSNPB1 Part Number : `44650KYJ901ZC`
7	WHEEL SUB ASSY,FR PRSNPB1 Part Number : `44650KYJ901ZD`
7	WHEEL SUB ASSY,FR PRSNPB1 Part Number : `44650KYJ910ZC`
7	WHEEL SUB ASSY,FR PRSNPB1 Part Number : `44650KYJ910ZD`
8	TIRE FR TL (110/70-17) Part Number : `44711KYJ901`
9	DISK COMP FR BRAKE Part Number : `45120KYJ901`
9	DISK COMP FR BRAKE Part Number : `45120KZZA21`
10	BOLT BRK DISK 6X17 Part Number : `90106KGH600`
11	BOLT,TORX 5X10 Part Number : `90131KPB751`
12	NUT U 12MM Part Number : `90306KWN701`
12	NUT U 12MM Part Number : `90306KGH901`
13	DUST SEAL,22X42X7 Part Number : `91252MC7003`
14	B/BRNG RAD N/COM Part Number : `961506302011`
