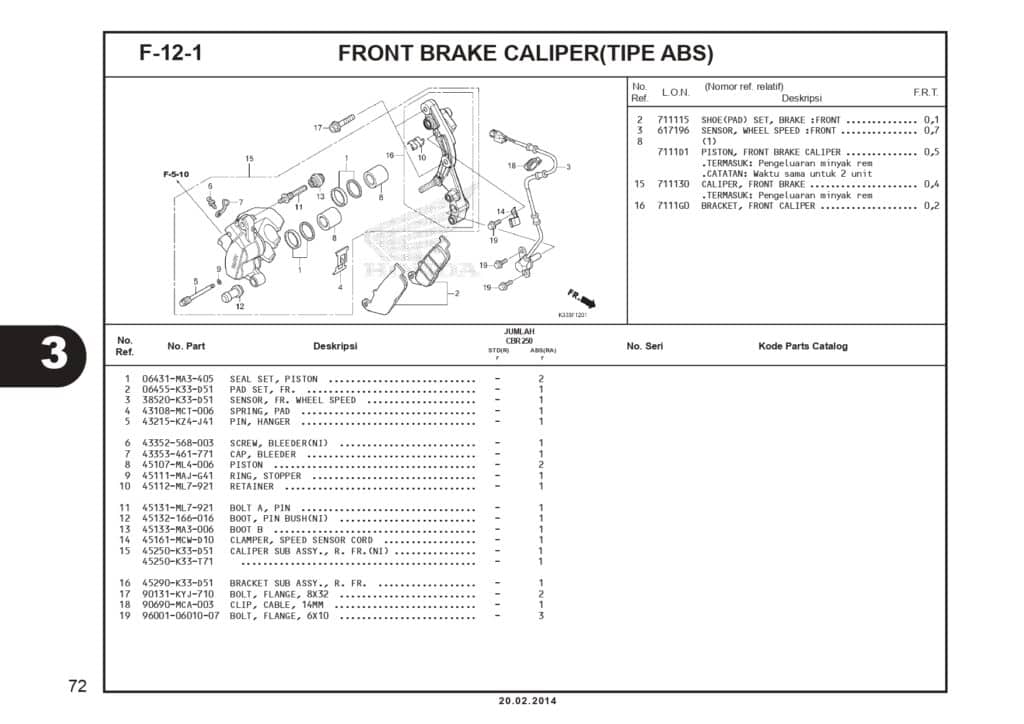

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL SET,PISTON | 06431MA3405 |
|
| 2 | PAD SET, FR. | 06455K33D52 |
|
| 3 | SENSOR FR WHEEL SPEED | 38520K33D51 | - |
| 4 | SPRING PAD | 43108MCT006 |
|
| 5 | PIN HANGER | 43215KZ4J41 |
|
| 6 | SCREW,BLEEDER | 43352568003 |
|
| 7 | CAP,BLEEDER | 43353461771 |
|
| 8 | PISTON | 45107ML4006 |
|
| 9 | O-RING,2.5X1.5 | 45111MAJG41 |
|
| 10 | RETAINER,BRKT | 45112ML7921 |
|
| 11 | BOLT A,PIN | 45131ML7921 |
|
| 12 | BUSH PIN | 45132166016 |
|
| 13 | BOOT B,PIN | 45133MA3006 |
|
| 14 | CLAMPER,SENSOR CORD | 45161MCWD10 | - |
| 15 | CALIPER SUB ASSY R FR | 45250K33D51 | - |
| 15 | CALIPER SUB ASSYL FR | 45250K33T71 | - |
| 16 | BRACKET SUB ASSY R FR | 45290K33D51 | - |
| 17 | BOLT FLANGE 8X32 | 90131KYJ710 | - |
| 18 | CLIP CABLE 14MM | 90690MCA003 |
|
| 19 | BOLT,FLANGE,SH 6X10 | 960010601007 |
|
