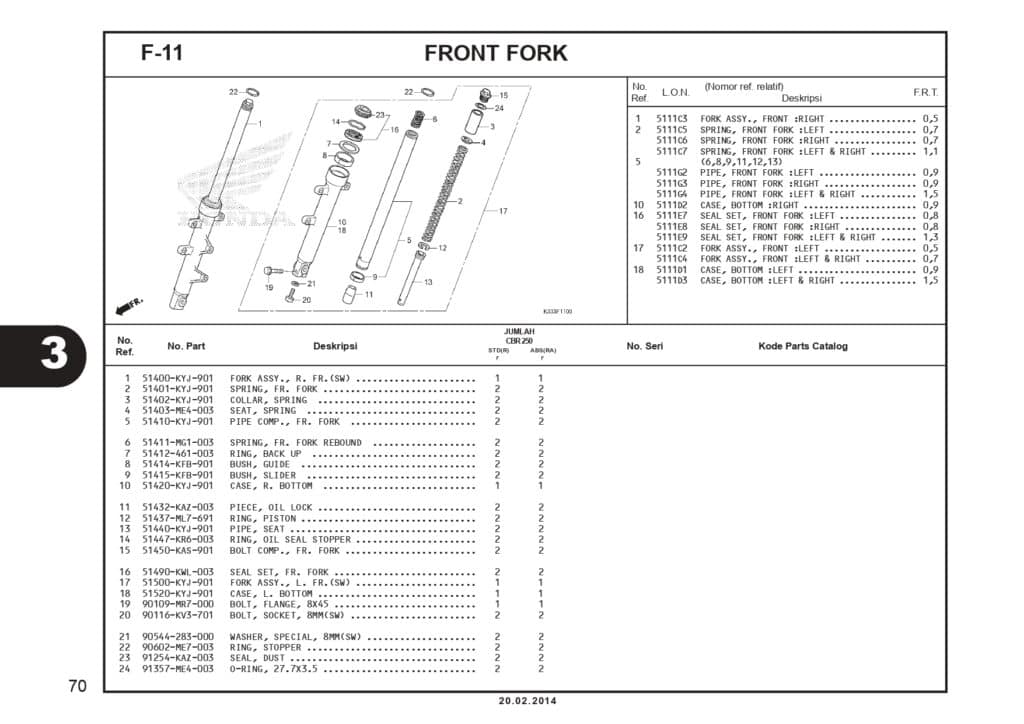

F-11 Front Fork – Katalog Suku Cadang Honda CBR 250R CBU

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 FORK ASSY,R FR 51400KYJ901 -
2 SPRING,FR FORK. 51401KYJ901 -
3 COLLAR,SPRING 51402KYJ901 -
4 PLATE,SPG.JOINT 51403ME4003 PLATE,SPG.JOINT
5 PIPE COMP,FR FORK 51410KYJ901 -
6 SPG,FR.REBOUND 51411MG1003 -
7 RING,BACK UP 51412461003 RING,BACK UP
8 BUSH,GUIDE 51414KFB901 -
9 BUSH,SLIDER 51415KFB901 -
10 CASE,R BOTTOM 51420KYJ901 -
11 PIECE,OIL LOCK 51432KAZ003 -
12 RING,PISTON 51437ML7691 -
13 PIPE,SEAT 51440KYJ901 -
14 RING,OIL SEAT STOP 51447KR6003 RING,OIL SEAT STOP
15 BOLT COMP.,FR.FORK 51450KAS901 -
16 SEAL SET,FR FORK 51490KWL003 SEAL SET,FR FORK
17 FORK ASSY,L FR 51500KYJ901 -
18 CASE,L BOTTOM 51520KYJ901 -
19 BOLT,FLANGE,8X45 90109MR7000 BOLT,FLANGE,8X45
20 BOLT,SOCKET 8MM 90116KV3701 BOLT,SOCKET 8MM
21 WASHER SPECIAL (8MM) 90544283000 WASHER SPECIAL (8MM)
22 RING,STOPPER 90602ME7003 -
23 SEAL DUST 91254KAZ003 SEAL DUST
24 O-RING,27.7X3.5 91357ME4003 -
