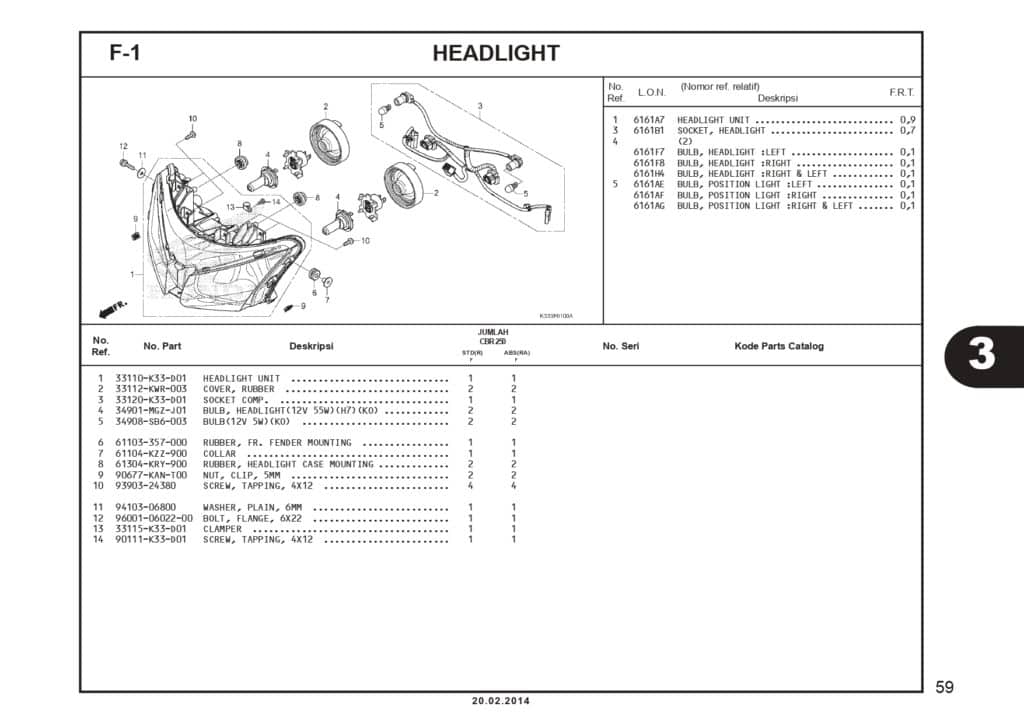

F-1 Headlight – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	HEADLIGHT UNIT Part Number : `33110K33D01`
2	COVER,RUBBER Part Number : `33112KWR003`
3	SOCKET COMP Part Number : `33120K33D01`
4	BULB HEADLIGHT Part Number : `34901MGZJ01`
5	BULB(12V 5W) Part Number : `34908SB6003`
6	RUBBER FR FENDER MOUNTING Part Number : `61103357000`
7	COLLAR Part Number : `61104KZZ900`
8	RUB.LIGHT CASE MOUNT Part Number : `61304KRY900`
9	NUT CLIP 5MM. Part Number : `90677KANT00`
10	SCREW TAPPING 4X12 Part Number : `9390324380`
10	SCREW TAPPING 4X12 Part Number : `9390324320`
11	WASHER, PLAIN, 6MM Part Number : `9410306800`
12	BOLT FLANGE 6X22 Part Number : `960010602200`
13	CLAMPER Part Number : `33115K33D01`
14	SCREW TAPPING 4X12 Part Number : `90111K33D01`
14	SCREW TAPPING 4X12 Part Number : `93902343G0`
