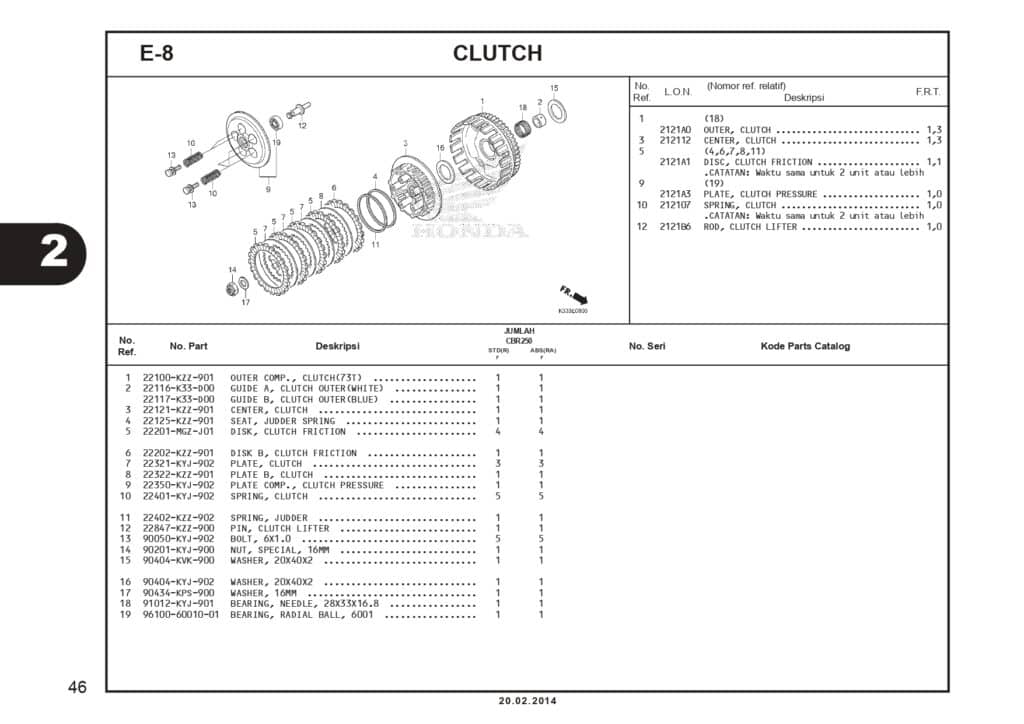

E-8 Clutch – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	OUTER COMP CLUTCH(73T) Part Number : `22100KZZ901`
1	OUTER COMP CLUTCH Part Number : `22100KYJUB1`
1	OUTER COMP CLUTCH Part Number : `22100KYJ903`
2	GUIDE A CLUTCH OUT(WHITE) Part Number : `22116K33D00`
2	GUIDE B CLUTCH OUT(BLUE) Part Number : `22117K33D00`
3	CENTER CLUTCH Part Number : `22121KZZ901`
3	CENTER CLUTCH Part Number : `22121KYJ902`
4	SEAT JUDDER SPRING Part Number : `22125KZZ901`
5	DISK CLUTCH FRICTION Part Number : `22201MGZJ01`
6	DISK B CLUTCH FRICTION Part Number : `22202KZZ901`
6	DISK B CLUTCH FRICTION Part Number : `22202MAE000`
7	PLATE,CLUTCH Part Number : `22321KYJ902`
7	PLATE,CLUTCH Part Number : `22321K87A31`
8	PLATE B CLUTCH Part Number : `22322KZZ901`
8	PLATE B CLUTCH Part Number : `22322K87A31`
9	PLATE COMP,CLUTCHH Part Number : `22350KYJ902`
9	PLATE COMP,CLUTCHH Part Number : `22350K87A31`
10	SPRING CLUTCH Part Number : `22401KYJ902`
10	SPRING CLUTCH Part Number : `22401K87A31`
11	SPRING JUDDER Part Number : `22402KZZ902`
11	SPRING JUDDER Part Number : `22402MKND11`
12	PIN CLUTCH LIFTER Part Number : `22847KZZ900`
12	PIN CLUTCH LIFTER Part Number : `22847KYJ712`
13	BOLT,M6X1.0 Part Number : `90050KYJ902`
14	NUT SPECIAL 16MM Part Number : `90201KYJ900`
14	NUT SPECIAL 16MM Part Number : `90434K64N00`
15	WASHER 20X40X2 Part Number : `90404KVK900`
16	WASHER,20X40X2 Part Number : `90404KYJ902`
17	WASHER,16MM Part Number : `90434KPS900`
18	BRG,NDL 28X33X16.8 Part Number : `91012KYJ901`
19	Bearing Ball Radial 6001 Part Number : `91008KVY901`
