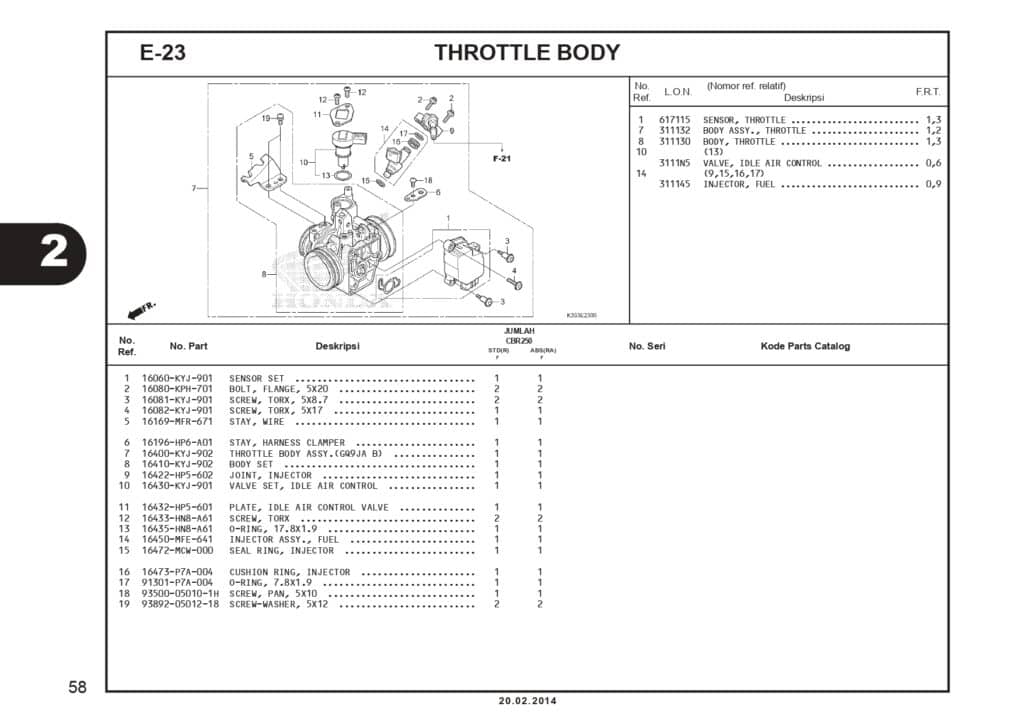

E-23 Throtle Body – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	SENSOR SET Part Number : `16060KYJ901`
2	BOLT,FLANGE 5X20 Part Number : `16080KPH701`
3	SCREW,TORX 5X8.7 Part Number : `16081KYJ901`
4	SCREW,TORX 5X17 Part Number : `16082KYJ901`
5	STAY,WIRE Part Number : `16169MFR671`
6	STAY,HARNESS CLAMPER Part Number : `16196HP6A01`
7	BODY ASSY,THROTTLE Part Number : `16400KYJ902`
8	BODY SET Part Number : `16410KYJ902`
9	JOINT,INJECTOR Part Number : `16422HP5602`
10	VALVE SET, IDLE AIR CONTROL Part Number : `16430KYJ901`
11	PLATE,IACV Part Number : `16432HP5601`
12	SCREW,TORX Part Number : `16433HN8A61`
13	O-RING,17.8X1.9 Part Number : `16435HN8A61`
14	INJECTOR ASSY,FUEL Part Number : `16450MFE641`
15	SEAL RING,INJECTOR Part Number : `16472MCW000`
16	GROMMET Part Number : `16473P7A004`
17	O RING Part Number : `91301P7A004`
18	93500050101H Part Number : `93500050101H`
19	SCREW WASHER 5X12 Part Number : `938920501218`
