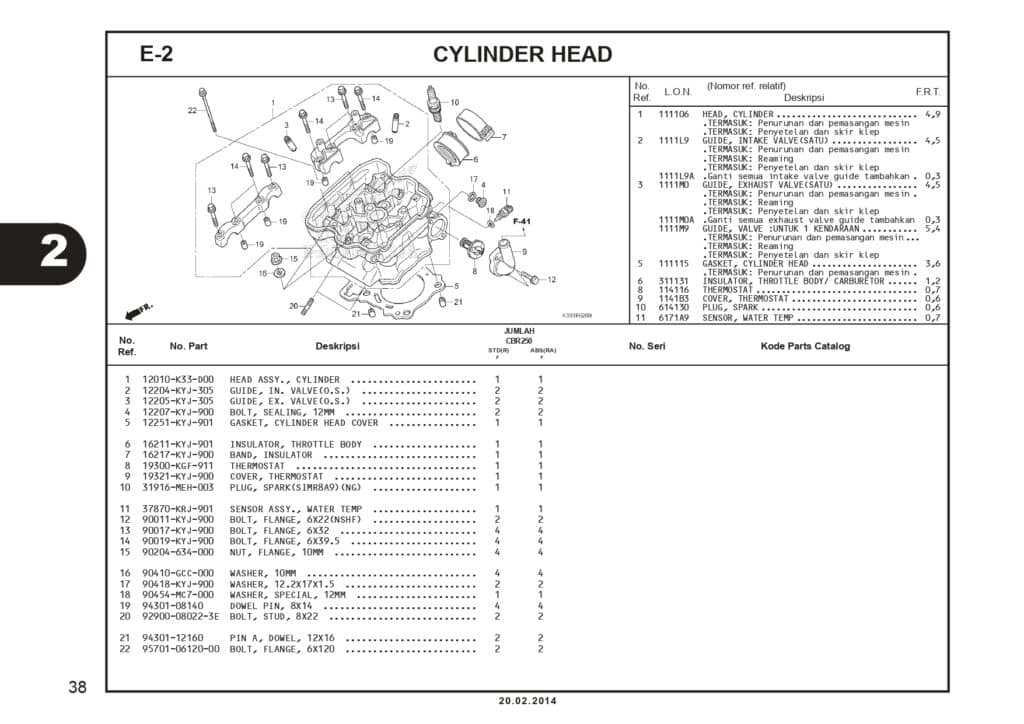

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD ASSY CYLINDER | 12010K33D00 | - |
| 2 | GUIDE,IN VALVE(OV | 12204KYJ305 | - |
| 3 | GUIDE,EX VALVE(OV | 12205KYJ305 |
|
| 4 | BOLT,SEALING 12MM | 12207KYJ900 |
|
| 5 | GASKET,CYLINDER H | 12251KYJ901 | - |
| 6 | INSULATOR,THROTTL | 16211KYJ901 | - |
| 7 | BAND,INSULATOR | 16217KYJ900 | - |
| 8 | THERMOSTAT | 19300KGF911 | - |
| 9 | COVER,THERMOSTAT | 19321KYJ900 | - |
| 10 | SPARK PLUG SIMR8A9 (NGK) | 31916MEH003 |
|
| 11 | SENSOR ASSY,TW | 37870KRJ901 |
|
| 12 | BOLT,FLANGE,NSHF, | 90011KYJ900 |
|
| 13 | BOLT,FLANGE 6X32 RKT | 90017KYJ900 | - |
| 13 | BOLT,FLANGE 6X32 | 960010603200 |
|
| 14 | BOLT,FLANGE 6X39 | 90019KYJ900 | - |
| 15 | NUT 10MM | 90204634000 | - |
| 15 | NUT 10MM | 90304GE8003 |
|
| 16 | WASHER,10MM | 90410GCC000 | - |
| 16 | WASHER,10MM | 90410HC4000 |
|
| 17 | WASHER,12.2X17X1.5 | 90418KYJ900 |
|
| 18 | WASH SPECIAL,12MM | 90454MC7000 |
|
| 19 | PIN DOWEL 8X14 | 9430108140 |
|
| 20 | BOLT 2,STUD,8X22 | 92900080220E |
|
| 21 | PIN KNCK,12X16 | 9430112160 |
|
| 22 | BOLT,FLANGE,6X120 | 957010612000 |
|
