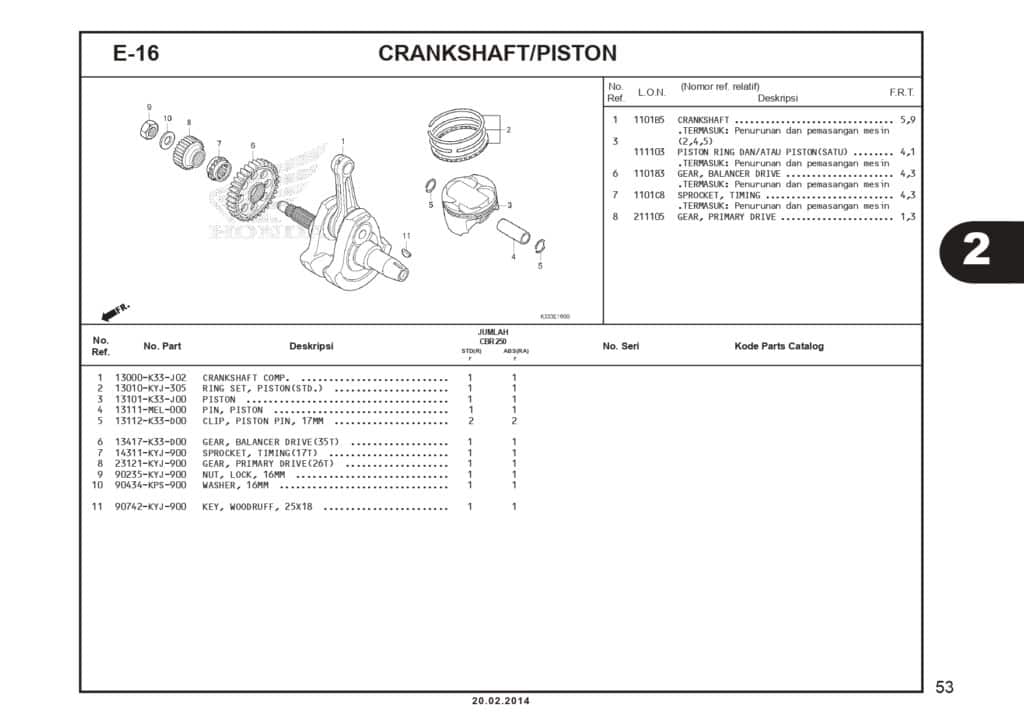

E-16 Cranshaft Piston – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	CRANKSHAFT COMP Part Number : `13000K33J02`
2	RING SET PISTON Part Number : `13010KYJ305`
3	PISTON Part Number : `13101K33J00`
4	PIN PISTON Part Number : `13111MEL000`
5	CLIP PISTON PIN 17MM Part Number : `13112K33D00`
6	GEAR BALANCER DRIVE(35T) Part Number : `13417K33D00`
7	SPROCKET,TIMING Part Number : `14311KYJ900`
8	GEAR,PRIMARY DRIVE Part Number : `23121KYJ900`
9	NUT LOCK 16MM Part Number : `90235KYJ900`
10	WASHER,16MM Part Number : `90434KPS900`
11	KEY,WOODRUFF,25X18 Part Number : `90742KYJ900`
