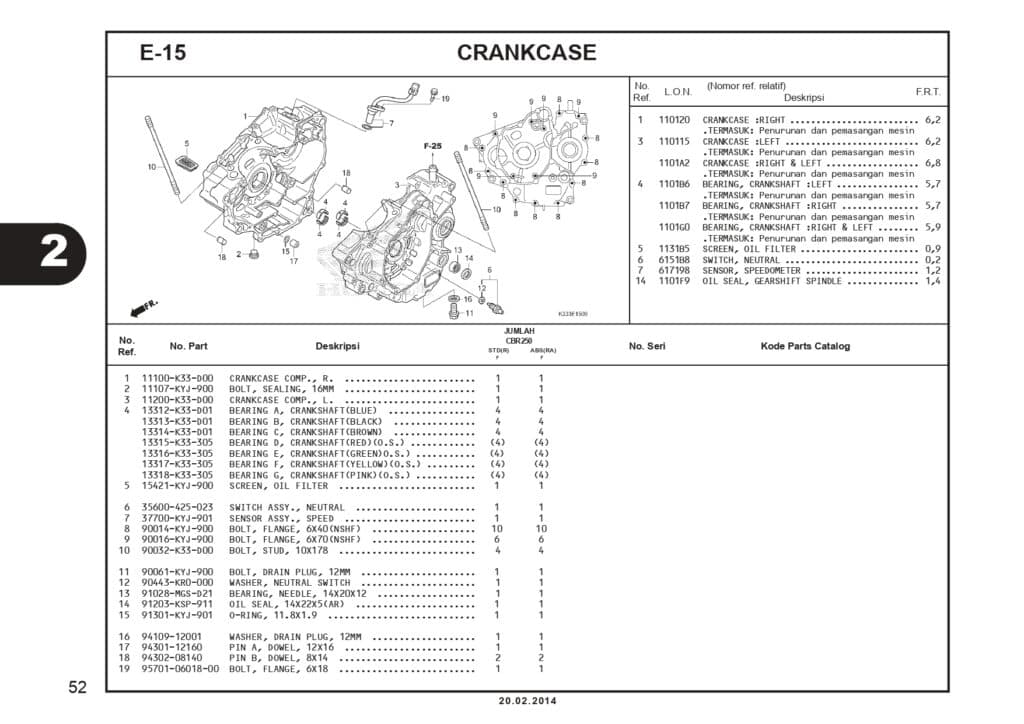

| 1 |
CRANKCASE COMP R |
11100K33D00 |
-
|
| 2 |
BOLT,SEALING 16MM |
11107KYJ900 |
-
|
| 3 |
CRANKCASE COMP L |
11200K33D00 |
-
|
| 4 |
BEARING A CRKSHAFT(BLUE) |
13312K33D01 |
-
|
| 4 |
BEARING B CRKSHAFT(BLACK) |
13313K33D01 |
-
|
| 4 |
BEARING C CRKSHAFT(BROWN) |
13314K33D01 |
-
|
| 4 |
BEARING D CRANKSHAFT(RED) |
13315K33305 |
-
|
| 4 |
BEARING E CRKSHAFT(GREEN) |
13316K33305 |
-
|
| 4 |
BEARING F CRKSHAFT(Y) |
13317K33305 |
-
|
| 4 |
BEARING G CRKSHAFT(PINK) |
13318K33305 |
-
|
| 5 |
SCREEN,OIL FILTER |
15421KYJ900 |
-
|
| 6 |
SW.AS,NEUTRAL |
35600425023 |
-
|
| 7 |
SENSOR ASSY SPEED |
37700KYJ901 |
-
|
| 8 |
BOLT,FLANGE,NSHF, |
90014KYJ900 |
|
| 9 |
BOLT,FLANGE,NSHF, |
90016KYJ900 |
-
|
| 10 |
BOLT STUD 10X178 |
90032K33D00 |
-
|
| 11 |
BOLT,PLUG DRAIN 112 |
90061KYJ900 |
|
| 12 |
WASHER,NEUTRAL |
90443KR0000 |
-
|
| 13 |
BEARING NEEDLE 14X20X12 LBL |
91028MGSD21 |
|
| 14 |
OIL SEAL,14X22X5 |
91203KSP911 |
|
| 15 |
O-RING,11.8X1.9 |
91301KYJ901 |
-
|
| 16 |
WASHER, DRAIN PLUG, 12MM |
9410912000 |
|
| 17 |
PIN KNCK,12X16 |
9430112160 |
|
| 18 |
PIN,KNOCK,8X140 |
9430208140 |
-
|
| 19 |
BOLT FLANGE 6X18 |
957010601801 |
|
