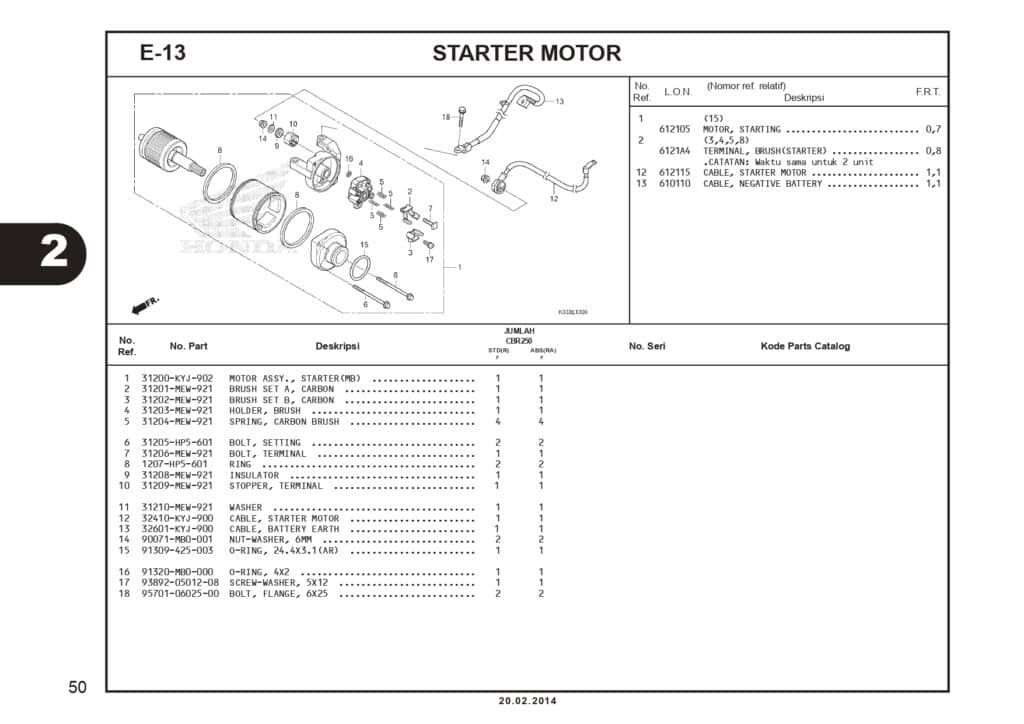

E-13 Motor Starter – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	MOTOR ASSY,START Part Number : `31200KYJ902`
2	CARBON BRUSH SET R Part Number : `31201MEW921`
3	CARBON BRUSH B Part Number : `31202MEW921`
4	BRUSH HOLDER Part Number : `31203MEW921`
5	SPRING CARBON BRUSH LBL Part Number : `31204MEW921`
6	BOLT SET Part Number : `31205HP5601`
7	BOLT SET Part Number : `31206MEW921`
8	1207HP5601 Part Number : `1207HP5601`
9	INSULATOR Part Number : `31208MEW921`
10	TERMINAL STOPPER Part Number : `31209MEW921`
11	WASHER Part Number : `31210MEW921`
12	CABLE START MOTOR Part Number : `32410KYJ900`
13	CABLE BATT EARTH Part Number : `32601KYJ900`
14	NUT-WASHER 6MM Part Number : `90071MB0000`
15	O-RING,24.4X3.1 Part Number : `91309425003`
16	O RING Part Number : `91320MB0000`
17	SCREW,WASHER 5X12 Part Number : `938920501208`
18	BOLT FLANGE 6X25 Part Number : `957010602500`
