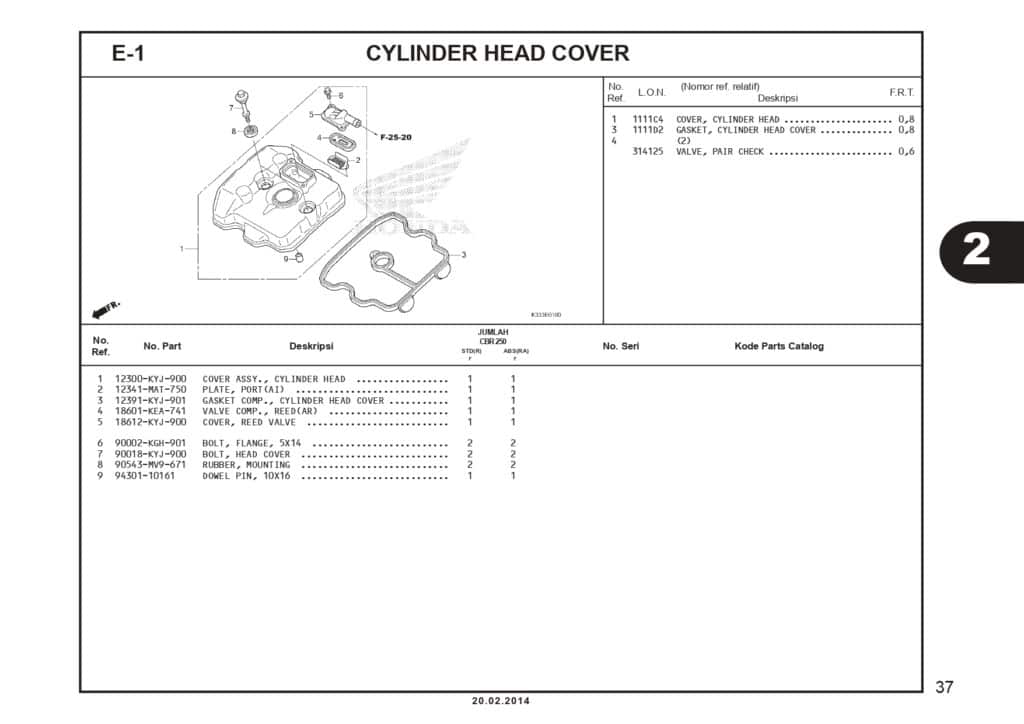

E-1 Cylider Head Cover – Katalog Suku Cadang Honda CBR 250R CBU

#	Informasi Produk	Visual
1	COVER ASSY,CYLINDER HEAD Part Number : `12300KYJ900`
2	PLATE,AI PORT Part Number : `12341MAT750`
3	GSK COMP HEAD CVR Part Number : `12391KYJ901`
3	GSK COMP HEAD CVR Part Number : `12391KYJ710`
4	REED VALVE COMP Part Number : `18601KEA741`
5	COVER,REED VALVE Part Number : `18612KYJ900`
6	BOLT,FLANGE 5X14 Part Number : `90002KGH900`
7	BOLT,HEAD COVER Part Number : `90018KYJ900`
7	BOLT,HEAD COVER Part Number : `90017K64N00`
8	Rubber Mounting Part Number : `90543MV9670`
9	DOWEL,PIN,10X16 Part Number : `9430110160`
