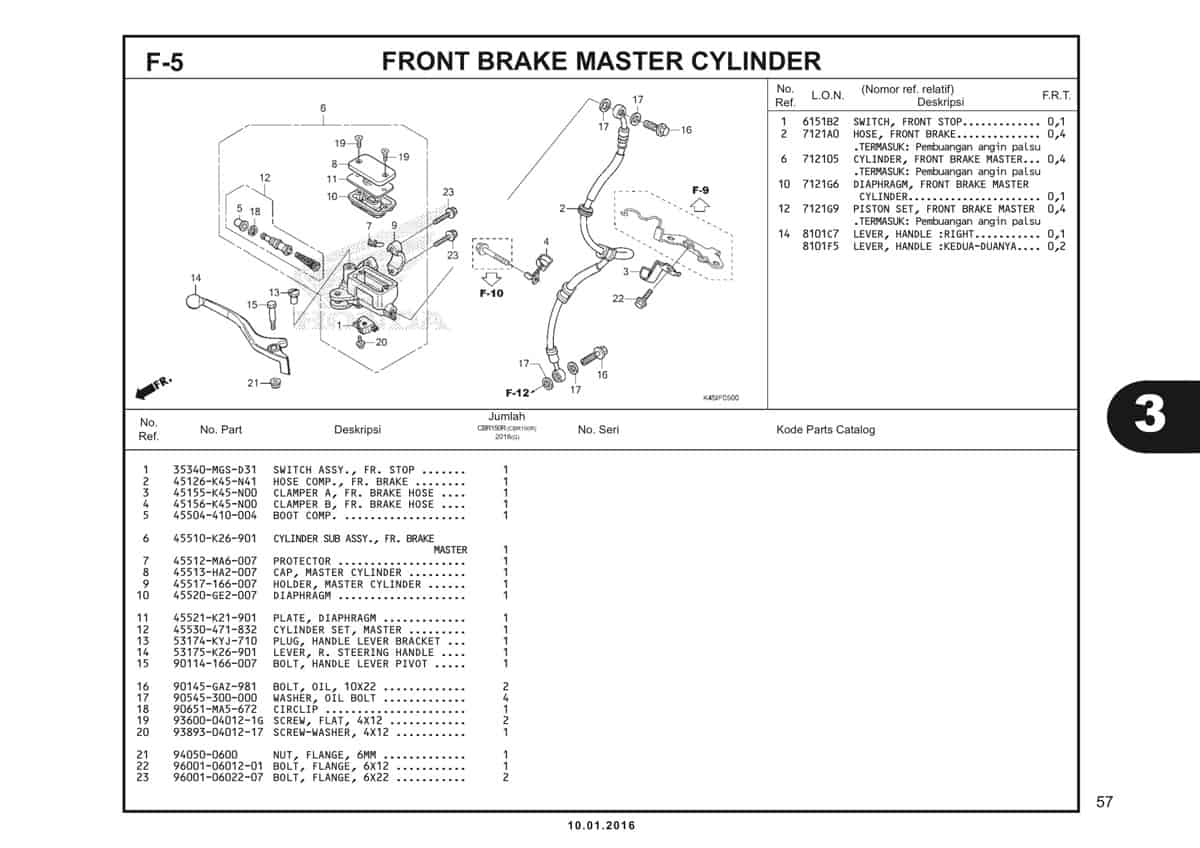

F5 – Front Brake Master Cylinder – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Switch FR Stop Assy Part Number : `35340MGSD31`
1	Switch FR Stop Assy Part Number : `35340MA5671`
2	Hose Comp FR Brake Part Number : `45126K45N41`
3	Clamper A, FR. Brake Hose Part Number : `45155K45N00`
4	Clamper B, FR. Brake Hose Part Number : `45156K45N00`
5	Boot Comp Part Number : `45504410004`
6	Cylinder Sub Assy FR Brake Part Number : `45510K26901`
7	Protector Part Number : `45512MA6006`
8	Cap, Master Cylinder Part Number : `45513HA2007`
9	Holder Master Cylinder Part Number : `45517166006`
10	Diapragm Part Number : `45520MG7006`
11	Plate Diaphragm Part Number : `45521K21901`
12	Cylinder Set Master Part Number : `45530KET920`
12	Cylinder Set Master Part Number : `45530471831`
13	Plug Handle Lever Bracket Part Number : `53174KYJ710`
14	Lever R Steering Handle Part Number : `53175K26901`
14	Lever R Steering Handle Part Number : `53175K26902`
15	Bolt Handle Lever Pivot Part Number : `90114166006`
16	Bolt Oil 10x22 Part Number : `90145GAZ981`
17	Washer Oil Bolt Part Number : `90545300000`
18	Circlip Part Number : `90651MA5672`
19	Screw Flat, 4X12 Part Number : `93600040121G`
20	Screw Washer 4x12 Part Number : `938930401217`
21	Nut Flange 6mm Part Number : `9405006000`
22	Bolt Flange SH 6X12 Part Number : `960010601200`
23	Bolt Flange 6x22 Part Number : `960010602207`
