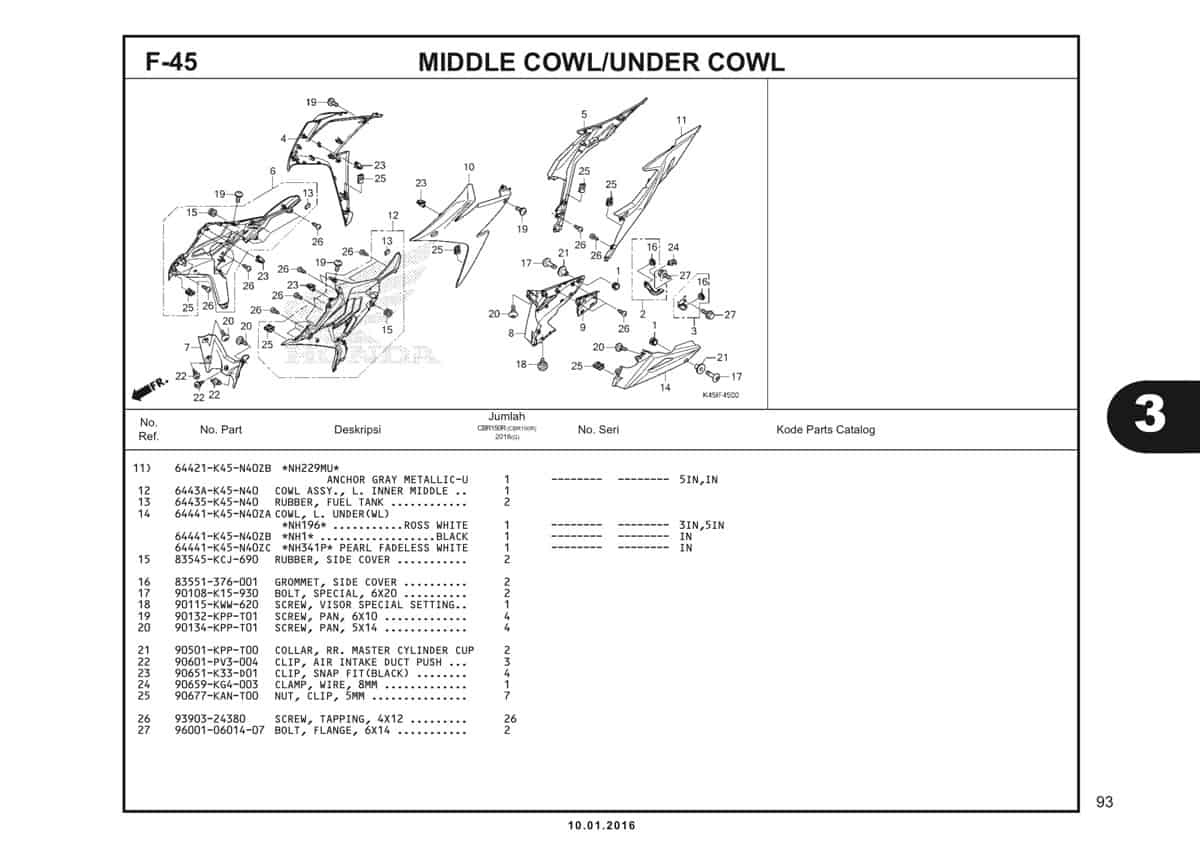

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Rubber FR Fender MT | 61105KRY900 |
|
| 2 | Bracket R Under Cowl | 6132AK45N40 |
|
| 3 | Bracket L Under Cowl | 6132BK45N40 |
|
| 4 | Cowl A,R Middle (PL FD WH) | 64311K45N40ZB |
|
| 4 | Cowl A,R Middle (RO WH) | 64311K45N40ROW |
|
| 4 | Cowl A R Middle RO WH | 64311K45N40ZC |
|
| 4 | Cowl A,R Middle (Wn Rd) | 64311K45N40WRD |
|
| 4 | Cowl A R Middle (Wn Rd) | 64311K45N40ZD |
|
| 4 | Cowl A,R Middle (BLK) | 64311K45N40ZA |
|
| 4 | Cowl A, R Middle (MT GN BL) | 64311K45N40MGB |
|
| 4 | Cowl A, R Middle (MT GN BL | 64311K45N40ZE |
|
| 5 | Cowl B,R Middle (Af Bk Mt) | 64321K45N40ZA |
|
| 5 | Cowl B, R Middle (BLK) | 64321K45N40ZE |
|
| 5 | Cowl B,R Middle (An Gy Mt) | 64321K45N40ZB |
|
| 5 | Cowl B R Middle (WN RD) | 64321K45N40ZC |
|
| 5 | Cowl B R Middle (RO WH) | 64321K45N40ZD |
|
| 6 | Inner,R Middle Cowl Assy | 6433AK45N40 |
|
| 6 | Cowl Set, R. Inner Middle | 64330K45N40 |
|
| 7 | Cowl, Center Inner Lower | 64332K45N40 |
|
| 8 | Cowl,R Under (RO WH) | 64341K45N40ZA |
|
| 8 | Cowl,R Under (Pl Fd Wh) | 64341K45N40ZC |
|
| 8 | Cowl,R Under (BLK) | 64341K45N40ZB |
|
| 8 | Cowl, R Under (MT GN BL) | 64341K45N40MGB |
|
| 9 | Guard, Under Cowl | 64342K45N40 |
|
| 10 | Cowl A,L Middle (RO WH) | 64411K45N40ROW |
|
| 10 | Cowl A L Middle RO WH | 64411K45N40ZC |
|
| 10 | Cowl A,L Middle (PL FD WH) | 64411K45N40ZB |
|
| 10 | Cowl A,L Middle (WN RD) | 64411K45N40WRD |
|
| 10 | Cowl A,L Middle (Blk) | 64411K45N40ZA |
|
| 10 | Cowl A, L Middle (MT GN BL) | 64411K45N40MGB |
|
| 10 | Cowl A, L Middle (MT GN BL) | 64411K45N40ZE |
|
| 11 | Cowl B,L Middle (AF BK MT) | 64421K45N40ZA |
|
| 11 | Cowl B,L Middle (AN GY MT) | 64421K45N40ZB |
|
| 11 | Cowl B, L Middle (Blk) | 64421K45N40ZE |
|
| 11 | Cowl B L Middle (WN RD) | 64421K45N40ZC |
|
| 11 | Cowl B L Middle (RO WH) | 64421K45N40ZD |
|
| 12 | Inner,L Middle Cowl Assy | 6443AK45N40 |
|
| 12 | Cowl Set, L. Inner Middle | 64430K45N40 |
|
| 13 | Rubber Fuel Tank | 64435K45N40 |
|
| 14 | Cowl,L Under (RO WH) | 64441K45N40ZA |
|
| 14 | Cowl,L Under (Pl Fd Wh) | 64441K45N40ZC |
|
| 14 | Cowl,L Under (Blk) | 64441K45N40ZB |
|
| 14 | Cowl, L Under (MT GN BL) | 64441K45N40MGB |
|
| 14 | Cowl,L Under MT GN BL | 64441K45N40ZE |
|
| 15 | Rubber Cover | 83545KCJ690 |
|
| 16 | Grommet, Side Cover | 83551376001 |
|
| 17 | Bolt, Special, 6X20 | 90108K15930 |
|
| 18 | Screw Visor Spl Set | 90115KWW620 |
|
| 19 | Screw Pan 6x10 | 90132KPPT00 |
|
| 20 | Screw Pan 5X14 | 90134KPPT01 |
|
| 20 | Screw Pan 5X14 | 90134KPPT00 |
|
| 21 | Collar RR M-C Cup | 90501KPPT00 |
|
| 22 | Push Clip Air Int Duct | 90601PV3003 |
|
| 23 | Clip Snap Fit (Black) | 90651K33D00 |
|
| 24 | Clamp Wire 8MM | 90659KG4003 |
|
| 25 | Nut Clip 5MM | 90677KANT00 |
|
| 26 | Screw Tapping 4x12 | 9390324380 |
|
| 27 | Bolt Flange SH 6x14 | 960010601407 |
|
