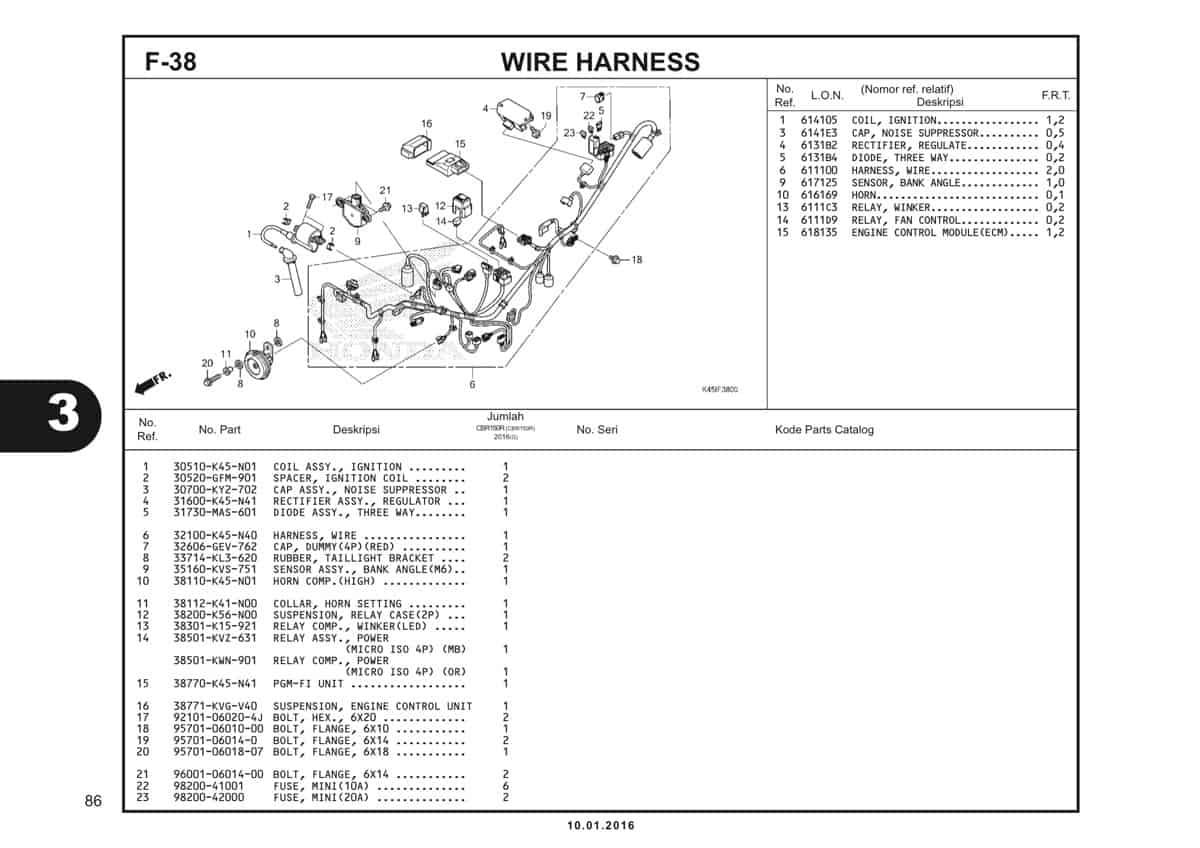

F38 – Wire Harness – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Coil Assy Ignition Part Number : `30510K45N01`
2	Spacer Ign Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppressor Part Number : `30700KY2702`
4	Rectifier Assy Regulator Part Number : `31600K45N41`
5	Diode Assy ,3 Way Part Number : `31730MAS601`
6	Harness Wire Part Number : `32100K45N40`
7	Dummy, WPC 4P 090 M (RED) Part Number : `32606GEV762`
8	Runtail/LT Bracket. Part Number : `33714KL3620`
9	Sensor Assy,Bank Angle M6 Part Number : `35160KVS751`
10	Horn Comp (HIGH) Part Number : `38110K45N01`
11	Collar Horn Setting Part Number : `38112K41N00`
12	Suspension Relay Case (2P) Part Number : `38200K56N00`
13	Relay Comp Led Winker Part Number : `38301K15921`
14	Relay Comp, Start Part Number : `38501KVZ631`
14	Relay Comp Power Part Number : `38501KWN901`
15	PGM-FI Part Number : `38770K45N41`
15	PGM-FI Part Number : `38770K45N42`
16	Suspension, Engine Control Unit Part Number : `38771KVGV40`
17	Bolt Hex 6X20 Part Number : `92101060204J`
18	Bolt Flange 6X10 Part Number : `957010601000`
19	Bolt Flange 6X14 Part Number : `957010601400`
20	Bolt Flange 6X18 Part Number : `957010601807`
21	Bolt Flange 6X14 Part Number : `960010601400`
22	Fuse Mini 10a Part Number : `9820041000`
23	Fuse F20A (Mini) Part Number : `9820042000`
