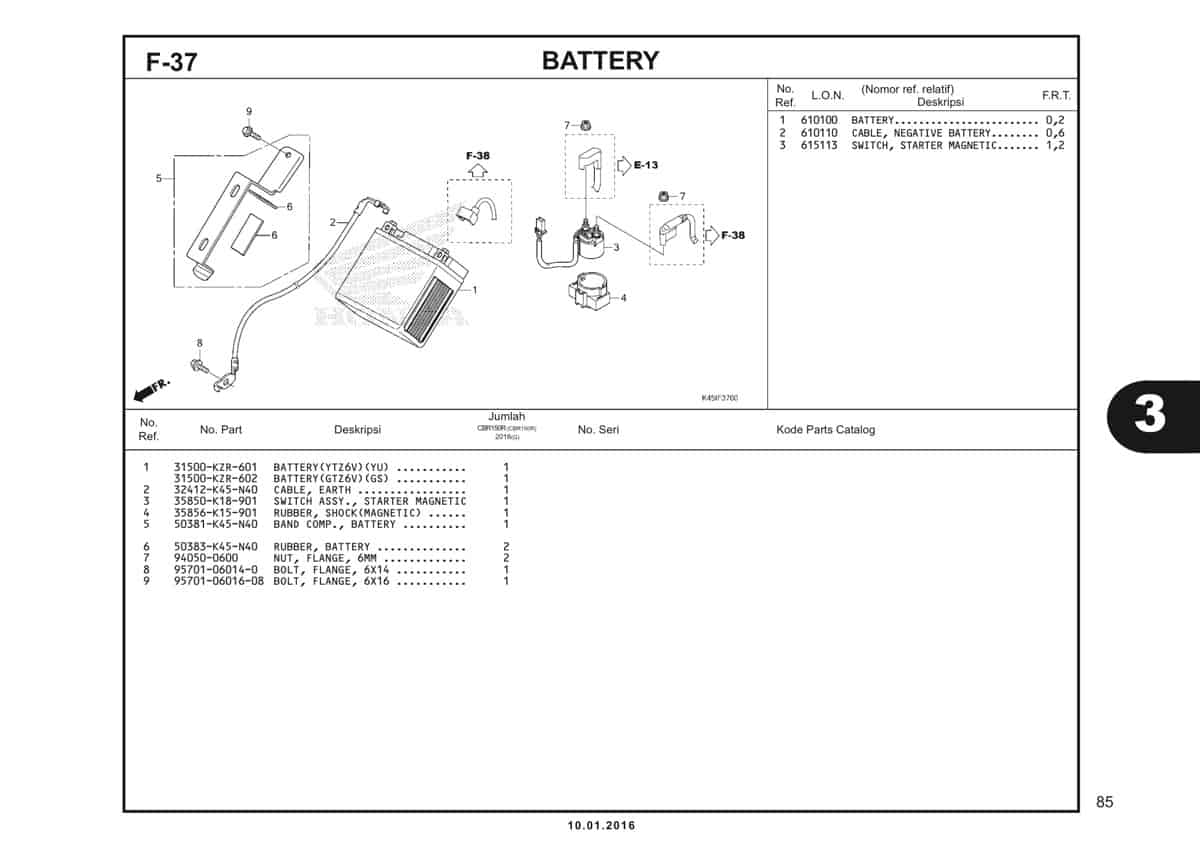

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Battery YTZ6-V | 31500KZR601 |
|
| 1 | Battery (GTZ6V) | 31500KZR602 |
|
| 2 | Cable Earth | 32412K45N40 |
|
| 3 | Switch Assy., Starter Magnetic | 35850K18901 |
|
| 4 | Shock Rubber (Magnetic) | 35856K15901 |
|
| 5 | Band Comp., Battery | 50381K45N40 |
|
| 6 | Rubber Battery | 50383K45N40 |
|
| 7 | Nut Flange 6mm | 9405006000 |
|
| 7 | Nut Flange 6mm | 9405006070 |
|
| 8 | Bolt Flange 6X14 | 957010601400 |
|
| 9 | Bolt Flange 6X16 | 957010601608 |
|
