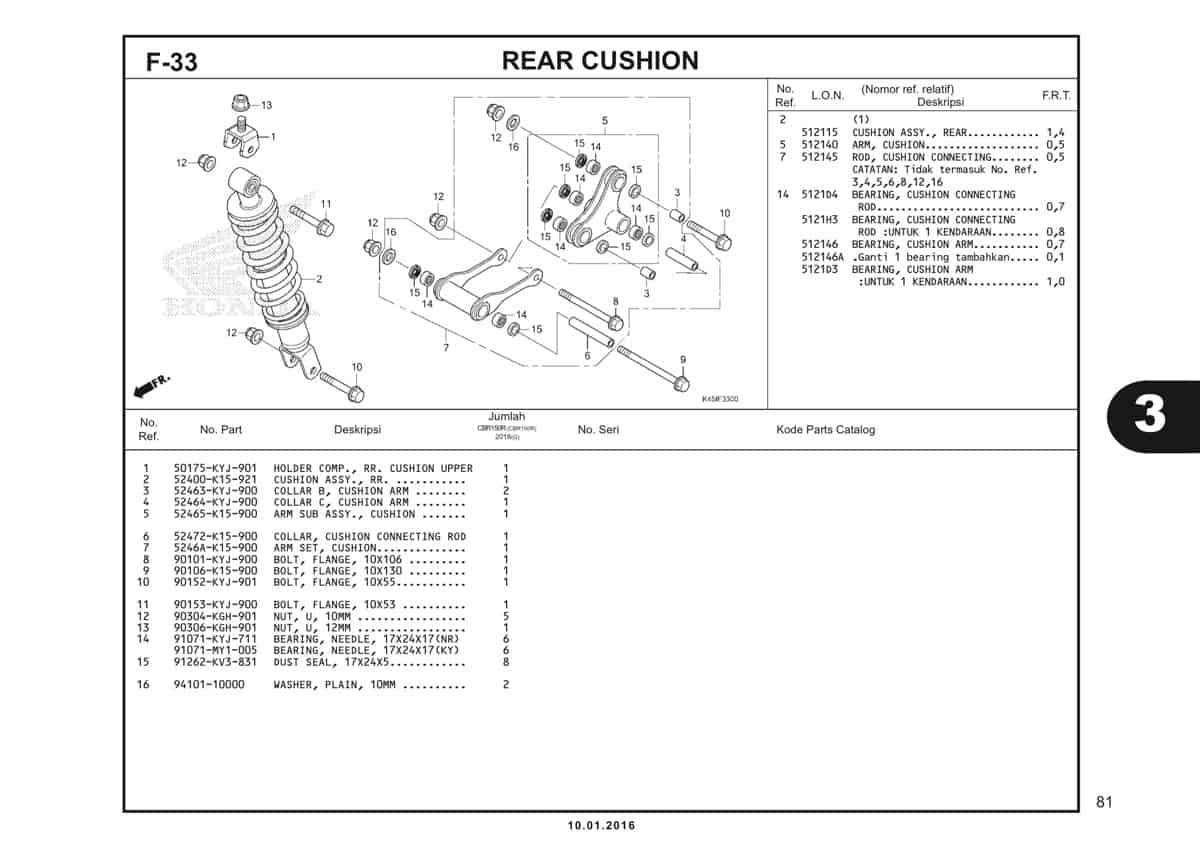

F33 – Rear Cushion – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Holder Comp RR Cushion Part Number : `50175KYJ901`
2	Cushion Assy Rear Part Number : `52400K15921`
3	Collar B,Cushion Arm Part Number : `52463KYJ900`
4	Collar C,Cushion Arm Part Number : `52464KYJ900`
5	Arm Sub Assy., Cushion Part Number : `52465K15900`
6	Collar Cushion Connecting Rod Part Number : `52472K15900`
7	Arm Cushion Set Part Number : `5246AK15900`
8	Bolt Flange 10X106 Part Number : `90101KYJ900`
9	Bolt Flange 10X130 Part Number : `90106K15900`
10	Bolt Flange DR 10X55 Part Number : `90152KYJ901`
10	Bolt Flange DR 10X55 Part Number : `90152KYJ900`
11	Bolt Flange 10X53 Part Number : `90153KYJ900`
12	Nut U 10mm Part Number : `90304KGH901`
13	Nut U 12mm Part Number : `90306KGH901`
14	Bearing Needle, 17X24X17 Part Number : `91071KYJ711`
14	Bearing Needle 17X24X17 Part Number : `91071MY1005`
15	Dust Seal 17 X 24 X 5 Part Number : `91262KV3831`
16	Washer Plain 10mm Part Number : `9410110000`
