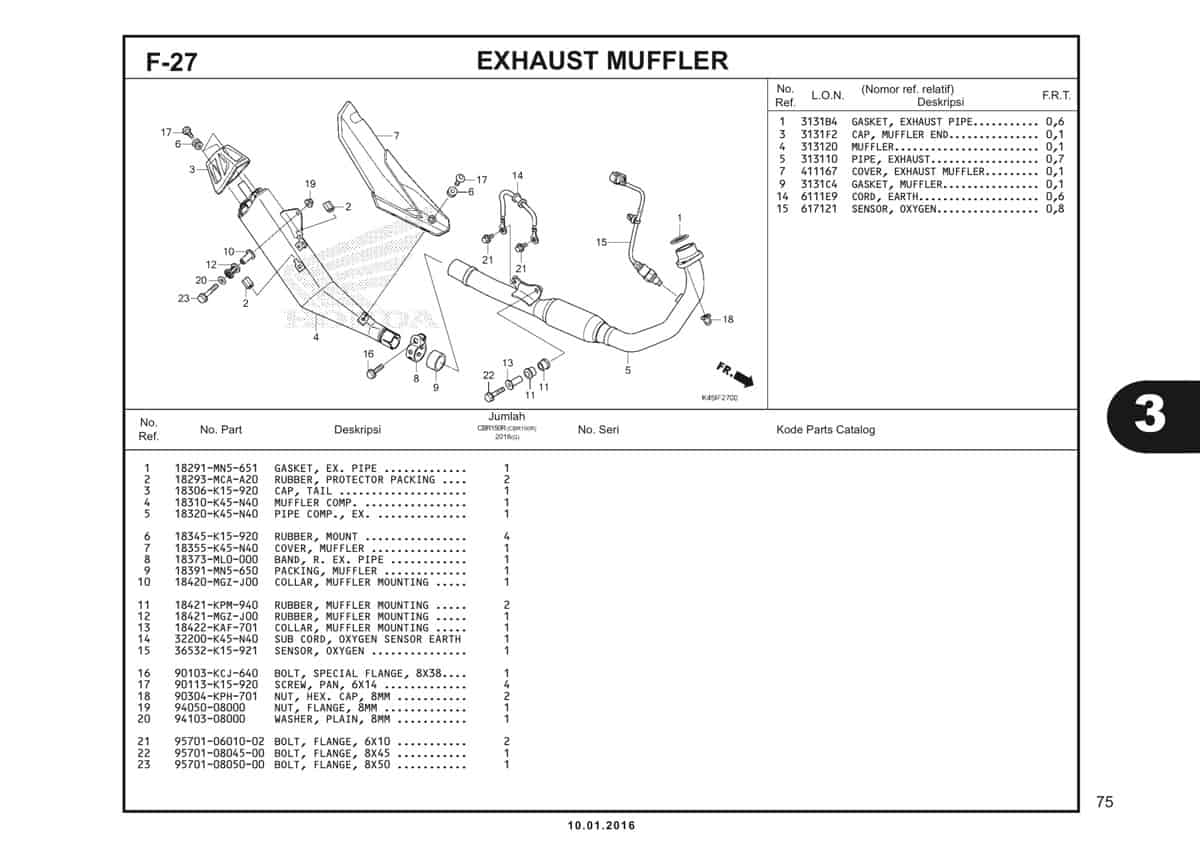

F27 – Exhaust Muffler – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Gasket Exh Pipe Part Number : `18291MN5650`
2	Rubber Protector Pack Part Number : `18293MCAA20`
3	Cap Tail Part Number : `18306K15920`
4	Muffler Comp Part Number : `18310K45N40`
5	Pipe Comp Exhaust Part Number : `18320K45N40`
6	Rubber Mount Part Number : `18345K15920`
7	Cover, Muffler Part Number : `18355K45N40`
8	Band R Exh Pipe Part Number : `18373ML0000`
9	Packing Muffler Part Number : `18391MN5650`
10	Collar Muffler Mounting Part Number : `18420MGZJ00`
11	Rubber Muffler Mounting Part Number : `18421KPM940`
12	Rubber Muffler Mounting Part Number : `18421MGZJ00`
13	Collar Muffler Mounting Part Number : `18422KAF701`
14	Sub Cord, Oxygen Sensor Earth Part Number : `32200K45N40`
15	Sensor Oxygen (Denso) Part Number : `36532K15921`
16	Bolt Special Flange 8X38 Part Number : `90103KCJ640`
17	Screw Pan 6x14 Part Number : `90113K15920`
18	Nut Hex Cap 8MM Part Number : `90304KPH701`
18	Nut Hex Cap 8MM Part Number : `90304KPH700`
19	Nut Flange 8MM Part Number : `9405008000`
20	Washer Plain 8MM Part Number : `9410308000`
21	Bolt Flange 6X10 Part Number : `957010601002`
22	Bolt Flange 8x45 Part Number : `957010804500`
23	Bolt Flange 8X50 Part Number : `957010805000`
