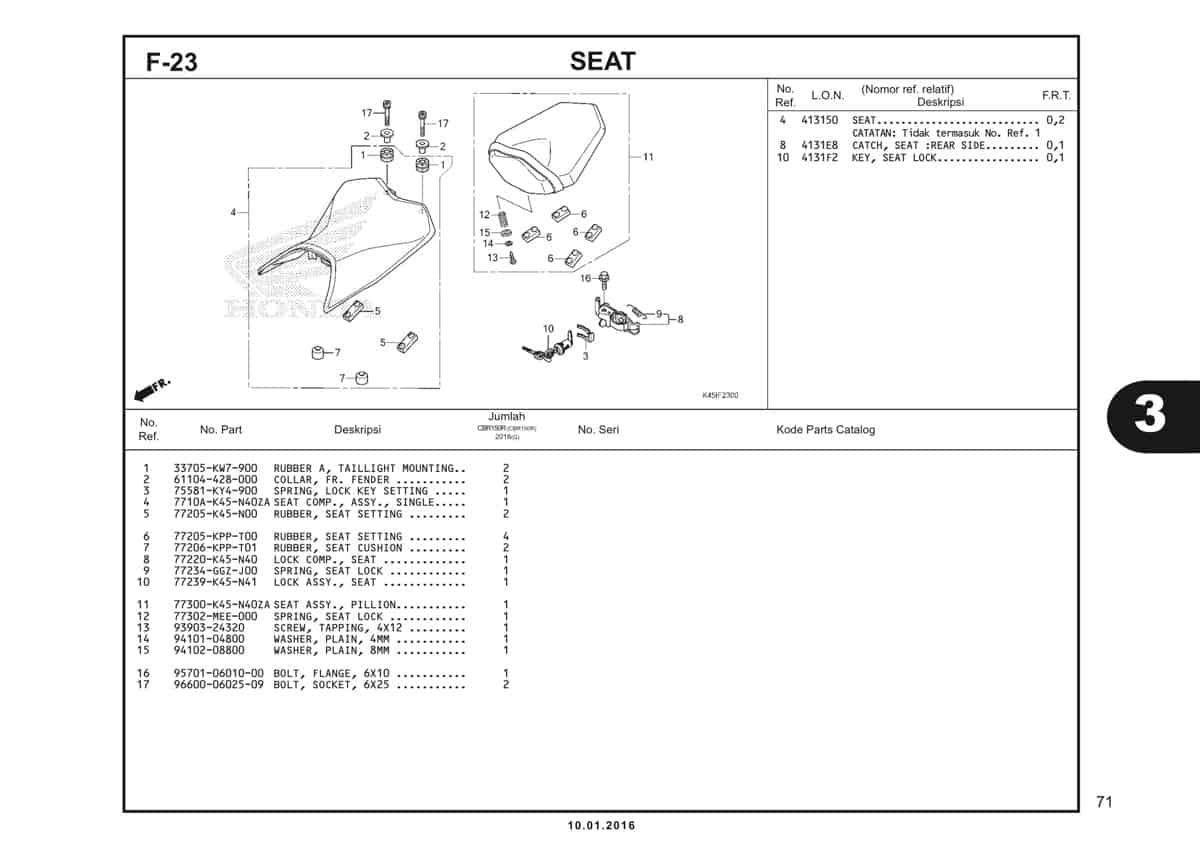

F23 – Seat – Katalog Honda CBR 150R K45G

#	Informasi Produk	Visual
1	Rubber Taillight Part Number : `33705KW7900`
2	Collar FR Fender Part Number : `61104428000`
3	Spring, Lock Key Setting Part Number : `75581KY4900`
4	Seat Comp, Single Assy Part Number : `7710AK45N40ZA`
4	Seat Comp, Single Assy Part Number : `77100K45N40ZA`
5	Rubber Seat Setting Part Number : `77205K45N00`
6	Rubber Seat Sett Part Number : `77205KPPT00`
7	Rubber Seat Cush Part Number : `77206KPPT01`
8	Lock Comp., Seat Part Number : `77220K45N40`
9	Spring, Seat Lock Part Number : `77234GGZJ00`
10	Lock Assy Seat Part Number : `77239K45N41`
11	Seat Assy Pillion Part Number : `77300K45N40ZA`
12	Spring Seat Lock Part Number : `77302MEE000`
13	Screw Tapping 4x12 Part Number : `9390324320`
14	Washer Plain, 4MM Part Number : `9410104800`
15	Washer Plain 8MM Part Number : `9410208800`
16	Bolt Flange 6X10 Part Number : `957010601000`
17	Bolt Socket 6X25 Part Number : `966000602509`
