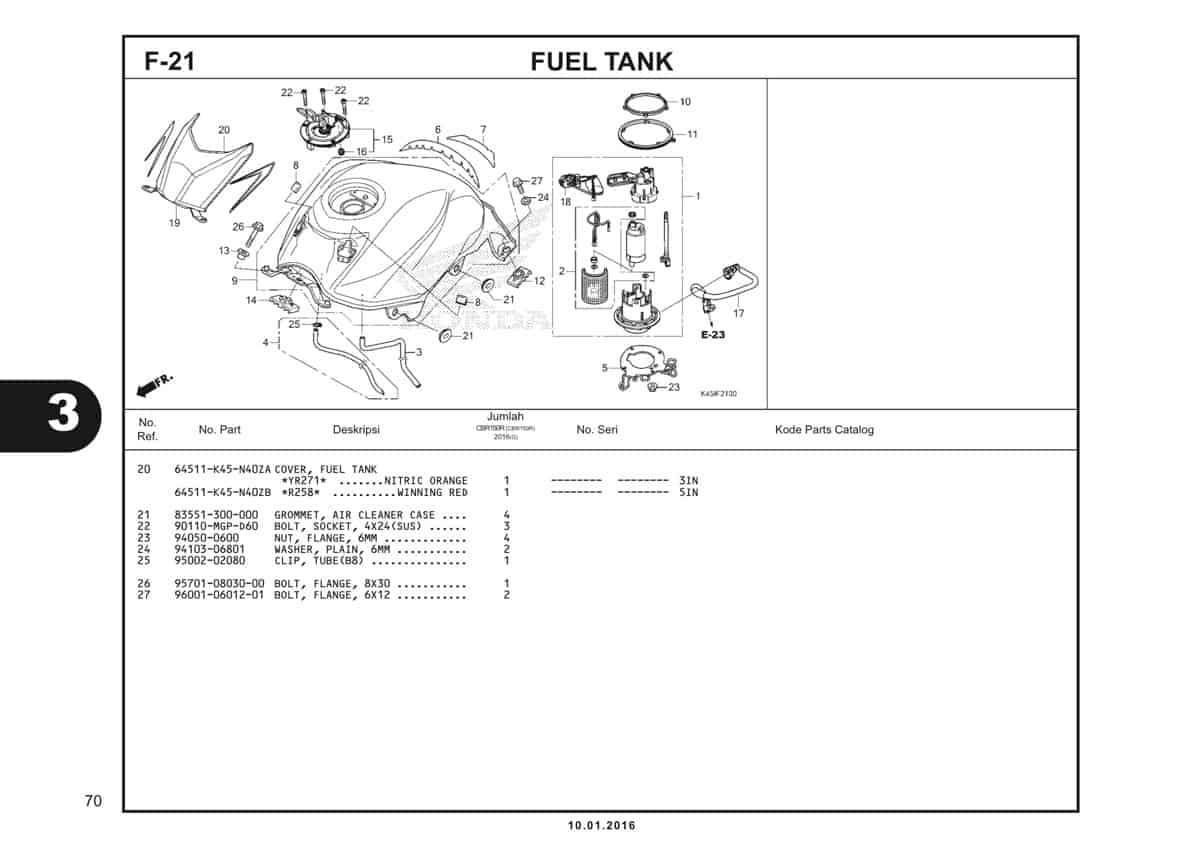

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Pump Assy Fuel | 16700K45N41 |
|
| 2 | Filter Set | 16707K45N01 |
|
| 3 | Tube Fuel Drain | 17525K45N40 |
|
| 4 | Tube Fuel Tank Breather Assy | 1752AK45N40 |
|
| 5 | Plate Setting | 17527K15920 |
|
| 6 | Film A, Tank Protector | 17527K45N40 |
|
| 7 | Film B, Tank Protector | 17528KYJ710 |
|
| 8 | Rubber, Tank Cover | 17529K15920 |
|
| 9 | Fuel Tank (NI OR) | 17510K45N40ZA |
|
| 9 | Fuel Tank (WN RD) | 17510K45N40WRD |
|
| 9 | Fuel Tank (Blk) | 17510K45N40ZB |
|
| 9 | Fuel Tank (PL FD WH) | 17510K45N40ZC |
|
| 9 | Tank Comp, Fuel (MT GN BL) | 17510K45N40MGB |
|
| 10 | Gasket Fuel Pump | 17572GHB611 |
|
| 10 | Gasket Fuel Pump | 17572KPNA71 |
|
| 11 | Seal Dust | 17573GHB601 |
|
| 12 | Cushion Fuel Tank (C) | 17613K45N00 |
|
| 13 | Collar Fuel Tank | 17614K45N00 |
|
| 14 | Cushion Fuel Tank (A) | 17615K45N00 |
|
| 15 | Cap Comp Fuel Filler | 17620KREG01 |
|
| 15 | Cap Comp Fuel Filler | 17620KREG02 |
|
| 16 | Seal Breather | 17621KREG01 |
|
| 16 | Seal Breather | 17621KREG02 |
|
| 17 | Hose Comp., Fuel Feed | 17650K15921 |
|
| 18 | Fuel Unit | 37800K45N41 |
|
| 19 | Cover,Fuel Tank (Blk) | 64511K45N40FMB |
|
| 19 | Cover Fuel Tank Cowl (BLK) | 64511K45N40ZD |
|
| 19 | Cover, Fuel Tank (MT GN BL) | 64511K45N40ZE |
|
| 19 | Cover,Fuel Tank (PL FD WH) | 64511K45N40PFW |
|
| 20 | Cover,Fuel Tank (Ni Or) | 64511K45N40ZA |
|
| 20 | Cover,Fuel Tank (Wn Rd) | 64511K45N40ZB |
|
| 21 | Case Grommet | 83551300000 |
|
| 22 | Bolt Socket, 4X24(SUS) | 90110MGPD60 |
|
| 23 | Nut Flange 6mm | 9405006000 |
|
| 23 | Nut Flange 6mm | 9405006070 |
|
| 24 | Washer Plain, 6MM | 9410306800 |
|
| 25 | Clip B8 Tube | 9500202080 |
|
| 26 | Bolt Flange 8X30 | 957010803000 |
|
| 27 | Bolt Flange SH 6X12 | 960010601200 |
|
