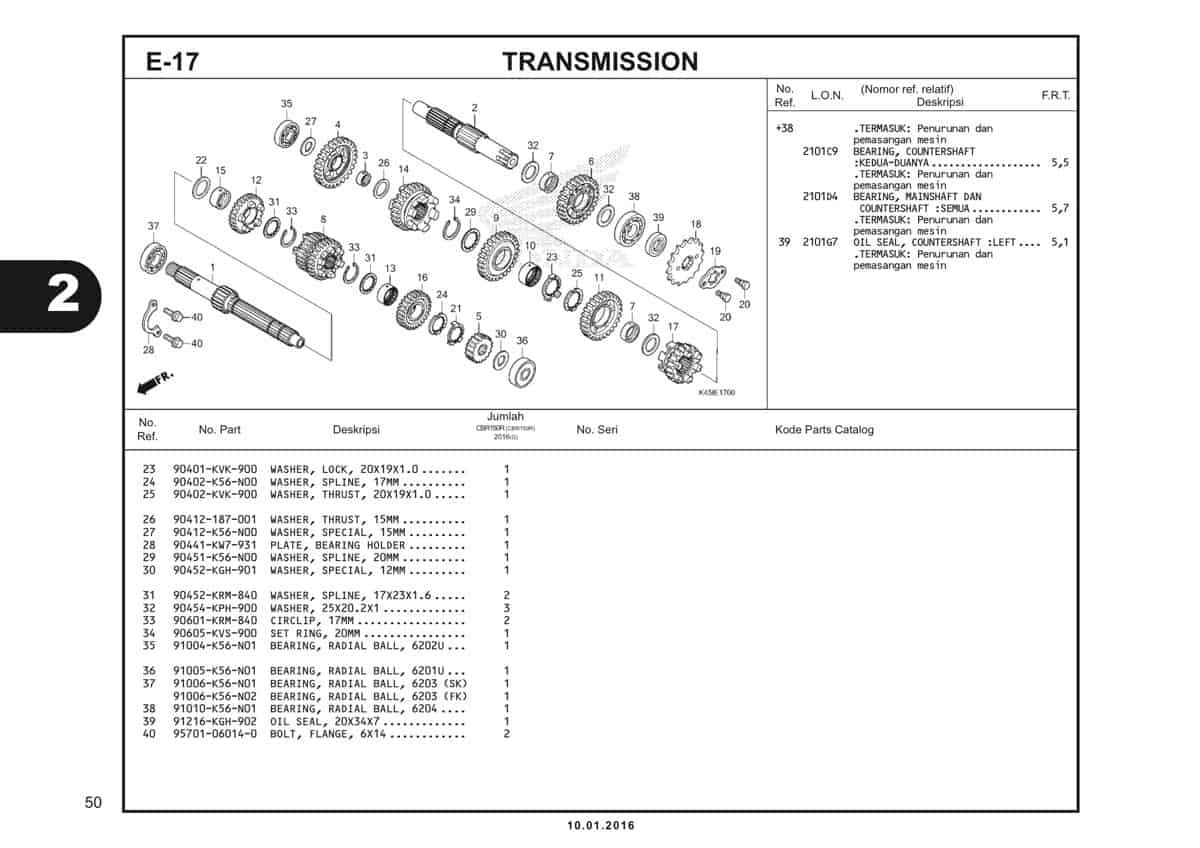

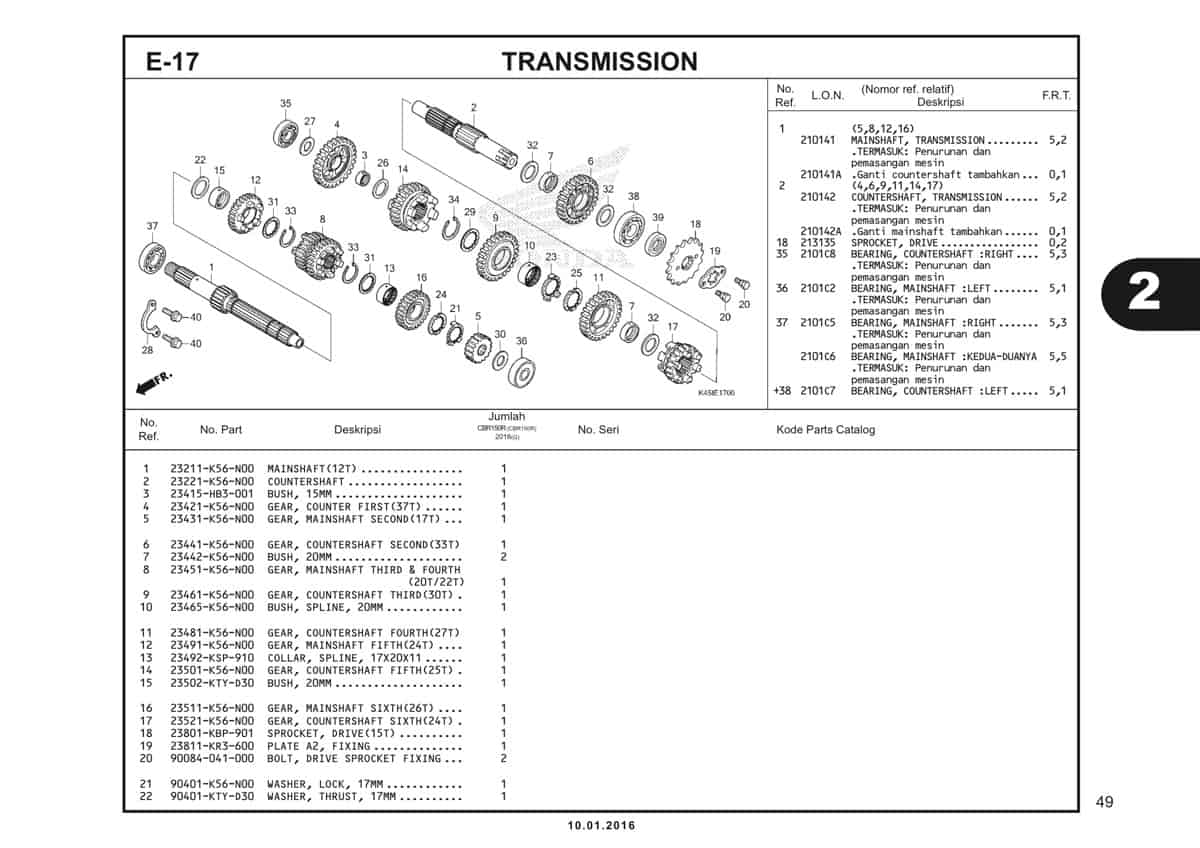

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Mainshaft (12T) | 23211K56N00 |
|
| 2 | Countershaft | 23221K56N00 |
|
| 3 | Bush 15MM | 23415HB3001 |
|
| 4 | Gear Countershaft First (37T) | 23421K56N00 |
|
| 5 | Gear Mainshaft Second (17T) | 23431K56N00 |
|
| 6 | Gear Countershaft Second (33T) | 23441K56N00 |
|
| 7 | Bush 20 MM | 23442K56N00 |
|
| 8 | Gear Mainshaft Third & Fourth | 23451K56N00 |
|
| 9 | Gear Countershaft Third (30T) | 23461K56N00 |
|
| 10 | Bush Spline 20 MM | 23465K56N00 |
|
| 11 | Gear Countershaft Fourth (27T) | 23481K56N00 |
|
| 12 | Gear Mainshaft Fifth (24T) | 23491K56N00 |
|
| 13 | Collar Spline 17x20x11 | 23492KSP910 |
|
| 14 | Gear Countershaft Fifth (25T) | 23501K56N00 |
|
| 15 | Bush 20 MM | 23502KTYD30 |
|
| 16 | Gear Mainshaft Sixth (26T) | 23511K56N00 |
|
| 17 | Gear Countershaft Sixth (24T) | 23521K56N00 |
|
| 18 | Sprocket Drive 15T | 23801KBP901 |
|
| 18 | Sprocket Drive 15T | 23801KBP900 |
|
| 19 | Plate A2 Fixing | 23811KR3600 |
|
| 20 | Bolt Drive Socket | 90084041000 |
|
| 21 | Washer Lock 17MM | 90401K56N00 |
|
| 22 | Washer Thrust 17 MM | 90401KTYD30 |
|
| 23 | Washer Lock 20X19X1.0 | 90401KVK900 |
|
| 24 | Washer Spline 17 MM | 90402K56N00 |
|
| 25 | Washer Thrust 20X19X1.0 | 90402KVK900 |
|
| 26 | Washer Thrust 15 MM | 90412187000 |
|
| 27 | Washer Special, 15MM | 90412K56N00 |
|
| 28 | Plate Bearing Hold | 90441KW7931 |
|
| 29 | Washer Spline, 20MM | 90451K56N00 |
|
| 30 | Washer Special 12 MM | 90452KGH900 |
|
| 31 | Washer Spline 17x23x1.6 | 90452KRM840 |
|
| 32 | Washer 25X20.2X1 | 90454KPH900 |
|
| 33 | Cir clip 17M/M | 90601KRM840 |
|
| 34 | Set Ring 20mm | 90605KVS900 |
|
| 35 | Bearing Ball 6202U | 91004K56N01 |
|
| 36 | Bearing Ball 6201U | 91005K56N01 |
|
| 37 | Bearing Radial Ball 6203 | 91006K56N01 |
|
| 37 | Bearing Radial Ball 6203 | 91006K56N02 |
|
| 38 | Bearing Radial Ball 6204 | 91010K56N01 |
|
| 39 | Oil Seal 20X34X7 | 91216KGH902 |
|
| 40 | Bolt Flange 6X14 | 957010601400 |
|
