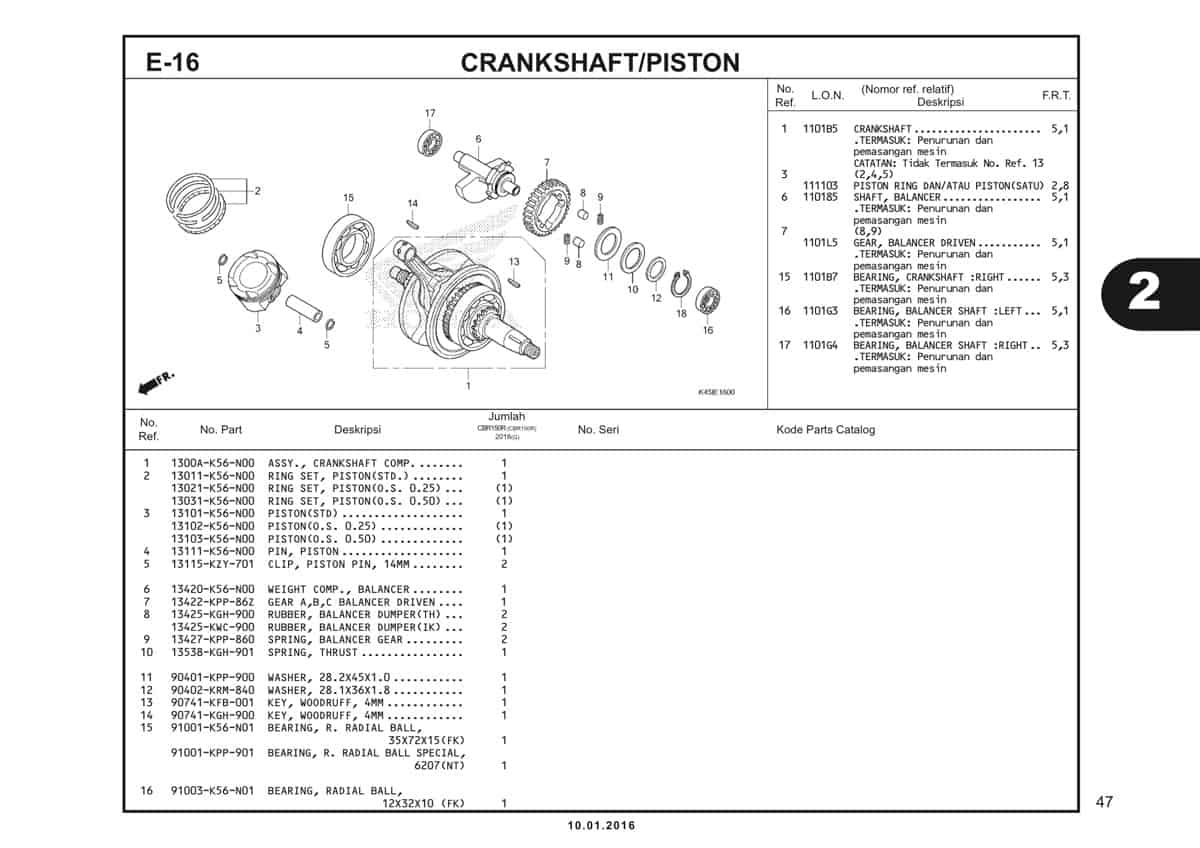

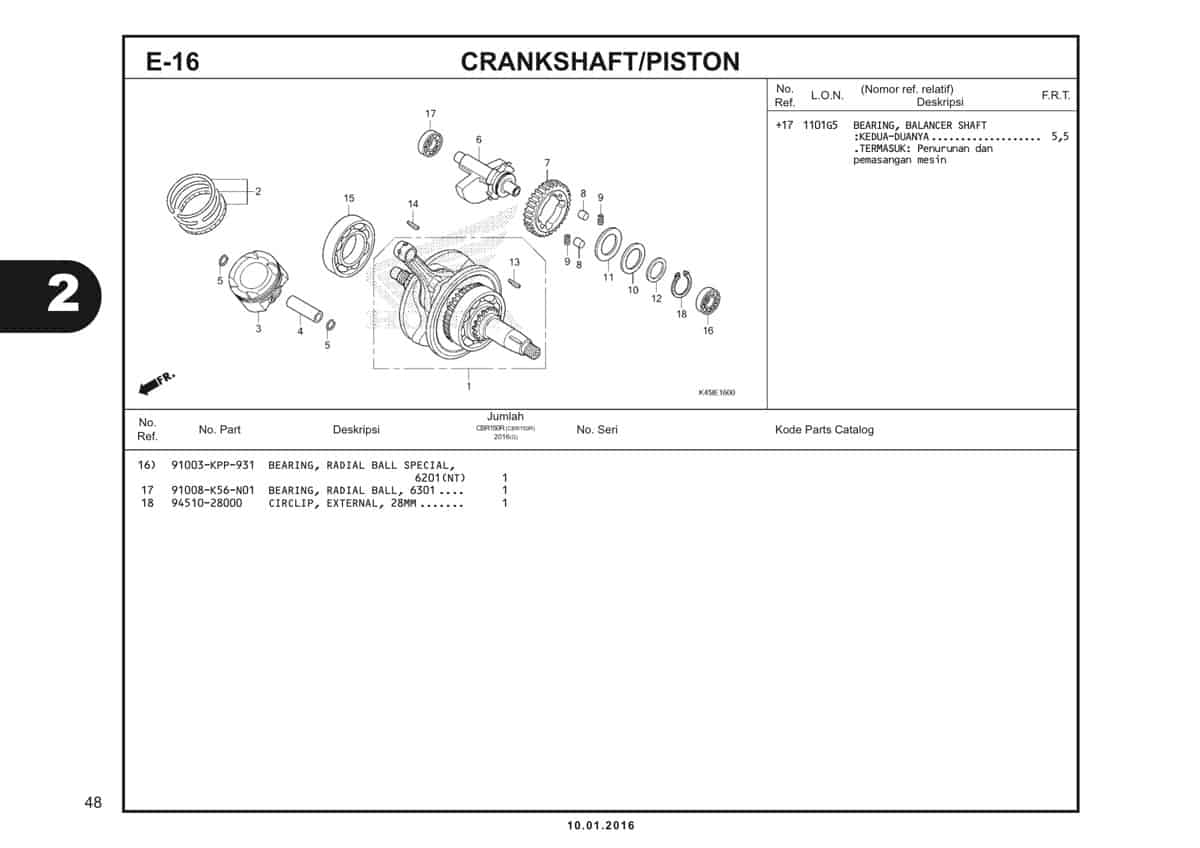

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Crank Shaft Comp Assy | 1300AK56N00 |
|
| 2 | Ring Set Piston (STD) | 13011K56N00 |
|
| 2 | Ring Set Pioston (0,25) | 13021K56N00 |
|
| 2 | Ring Set Piston (0,50) | 13031K56N00 |
|
| 3 | Piston (STD) | 13101K56N00 |
|
| 3 | Piston (0,25) | 13102K56N00 |
|
| 3 | Piston (0.50) | 13103K56N00 |
|
| 4 | Pin Piston | 13111K56N00 |
|
| 5 | Clip Piston Pin 14MM | 13115KZY701 |
|
| 5 | Clip Piston Pin 14MM | 13115KZY700 |
|
| 6 | Weight Comp Blancer | 13420K56N00 |
|
| 7 | Gear A Balancer Driven | 13422KPP860 |
|
| 7 | Gear A Balancer Driven | 13422KPP860 |
|
| 8 | Rubber Balancer Dumper | 13425KGH900 |
|
| 8 | Rubber Balancer Dumper | 13425KWC900 |
|
| 8 | Rubber Balancer Dumper | 13425KGH901 |
|
| 9 | Spring Balancer Gear | 13427KPP860 |
|
| 10 | Spring Thrust | 13538KGH901 |
|
| 10 | Spring Thrust | 13538KGH900 |
|
| 11 | Washer 28.2X45X1.0 | 90401KPP900 |
|
| 12 | Washer 28 1x34x1.8 | 90402KRM840 |
|
| 13 | Key Woodruff 4MM | 90741KFB001 |
|
| 13 | Key Woodruff 4MM | 90741KFB000 |
|
| 14 | Key Woodruff 4MM | 90741KGH900 |
|
| 15 | Bearing R Radial Ball 35x72x15 | 91001K56N01 |
|
| 15 | Bearing, Ball Radial 6207 SPL | 91001KPP901 |
|
| 16 | Bearing Radial Ball 12X32X10 | 91003K56N01 |
|
| 16 | Bearing Ball Radial 6201 SPL | 91003KPP931 |
|
| 17 | Bearing Radial Ball, 6301 | 91008K56N01 |
|
| 18 | Circlip EX 28 | 9451028000 |
|
